FEATURED
2004 Acela Monterra KRUG Expedition #246
$420,000
Year
2004Make
AcelaModel
MonterraOdometer
12,000Engine
7.2L Turbo Diesel I6Fuel Type
dieselTransmission
automaticDrivetrain
4×4VIN / Chassis #
AT025210BFKPSeller
private partyLocation
Cheyenne, WYTitle Status

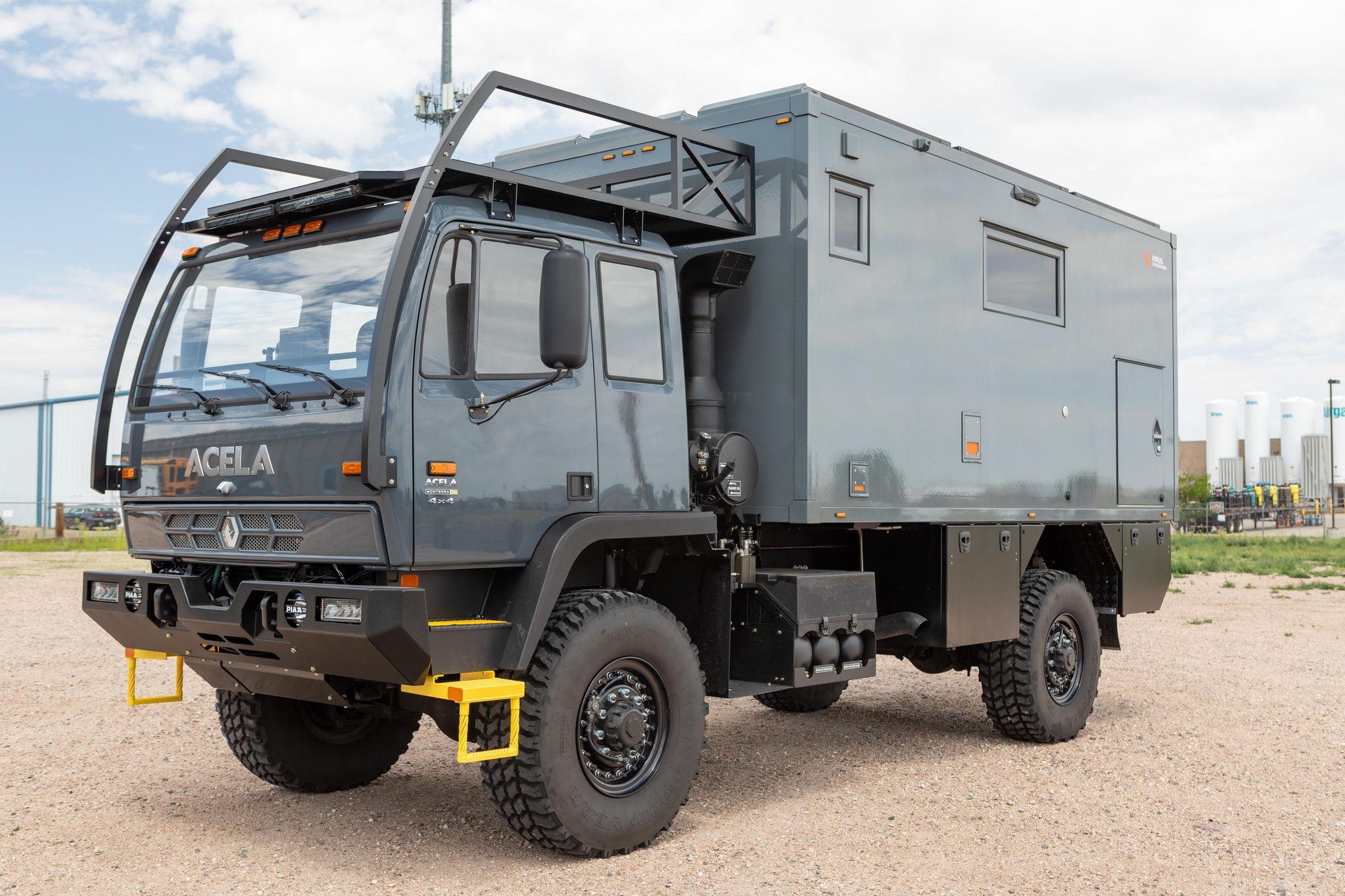

cleanBuilt for extended travel well beyond the reach of campgrounds and hookups, KRUG Expedition #246 combines an Acela-remanufactured Monterra GL 4x4 chassis with a 16-foot KRUG Type C living module and a serious off-grid systems package. The truck was remanufactured and upfitted by Acela Truck Company in 2025 and now shows just 12,000 miles, pairing Caterpillar 7.2L turbo-diesel power with an Allison 7-speed automatic, high-speed gearing, 46-inch Goodyear MV/T tires, Central Tire Inflation, a 113-gallon fuel tank, and a torsion-free camper subframe. Behind the cab, the KRUG module brings 990Ah of 24V lithium storage, 1,400 watts of solar, dual Victron Quattro inverter/chargers, hydronic heat, rooftop A/C, 130 gallons of fresh water, full filtration, permanent sleeping space, a Miele-equipped kitchen, and an enclosed bath.

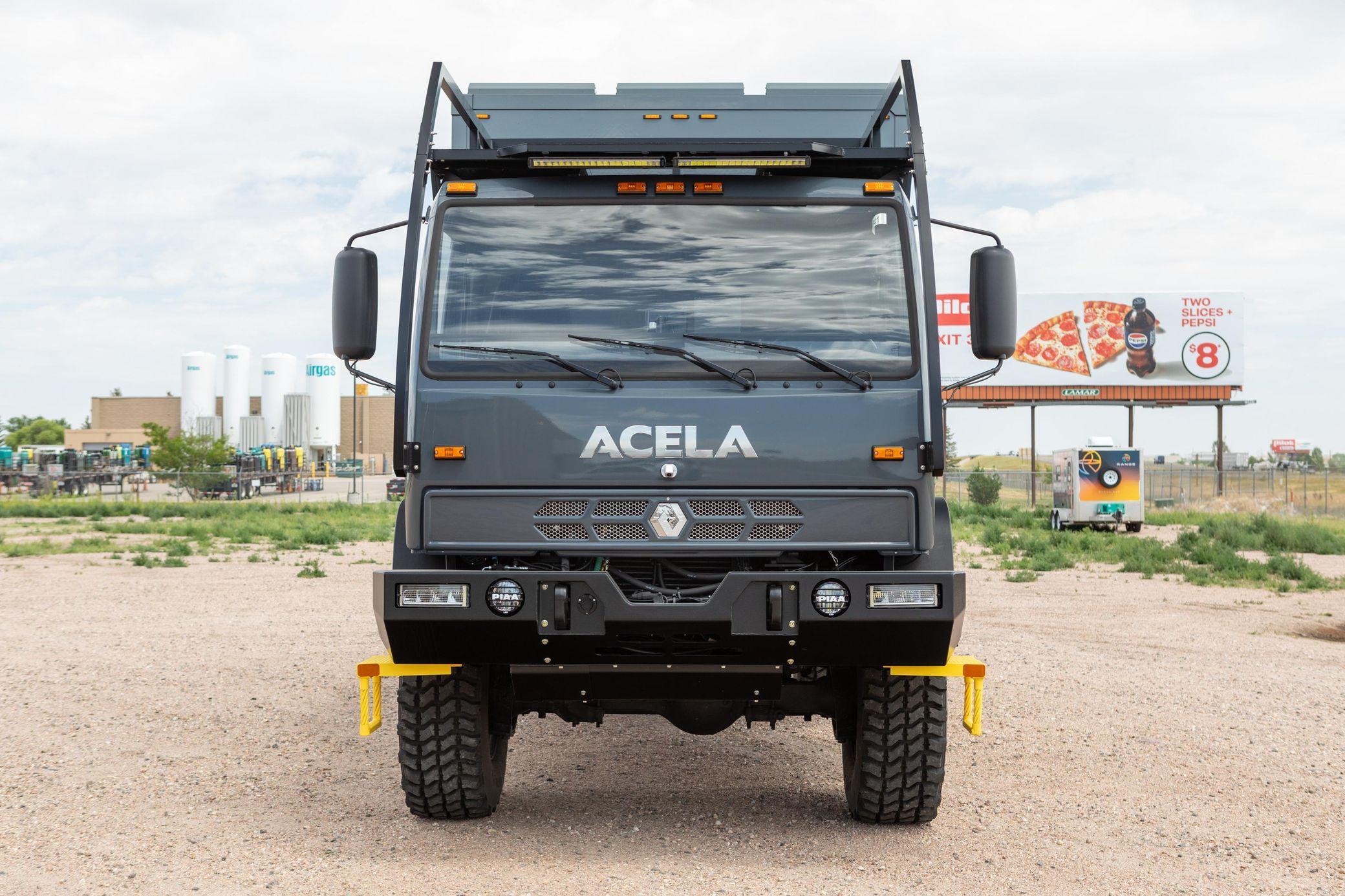

- Acela-Remanufactured Expedition Chassis: The Monterra GL was remanufactured and upfitted by Acela Truck Company in 2025, then paired with KRUG Expedition living module #246. High-speed gearing, an extended wheelbase, 46-inch tires, Central Tire Inflation, raised air intake, air brakes, and 22 inches of ground clearance give the truck the foundation expected of a purpose-built global expedition platform.

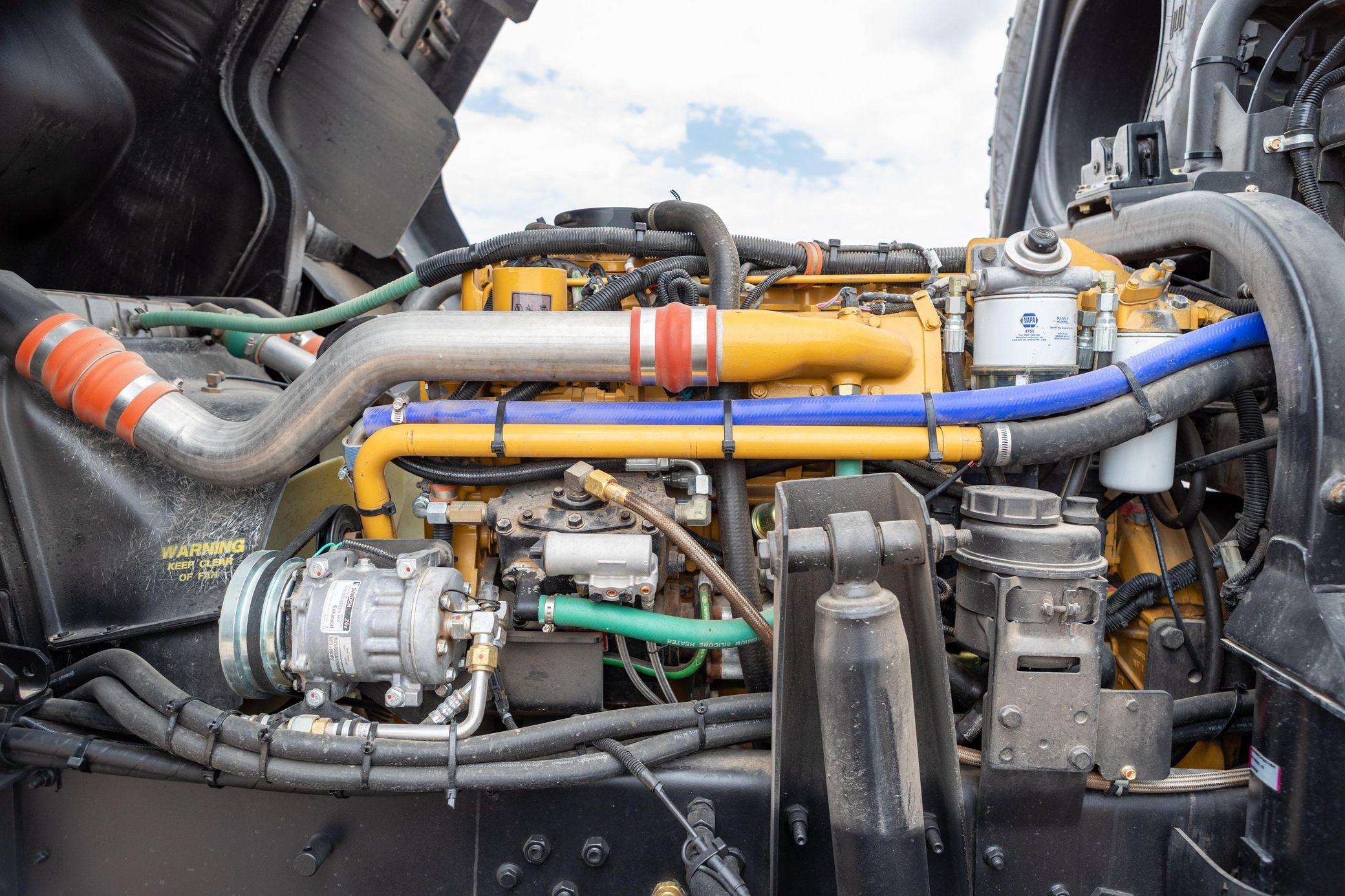

- Caterpillar Diesel and Allison 7-Speed: Power comes from a 7.2L Caterpillar turbo-diesel inline-six rated at 330 horsepower and 860 lb-ft of torque, backed by an Allison 3070SP 7-speed automatic. A 113-gallon aluminum fuel tank extends range, while the cooling-fan disconnect is designed to support water crossings up to 30 inches.

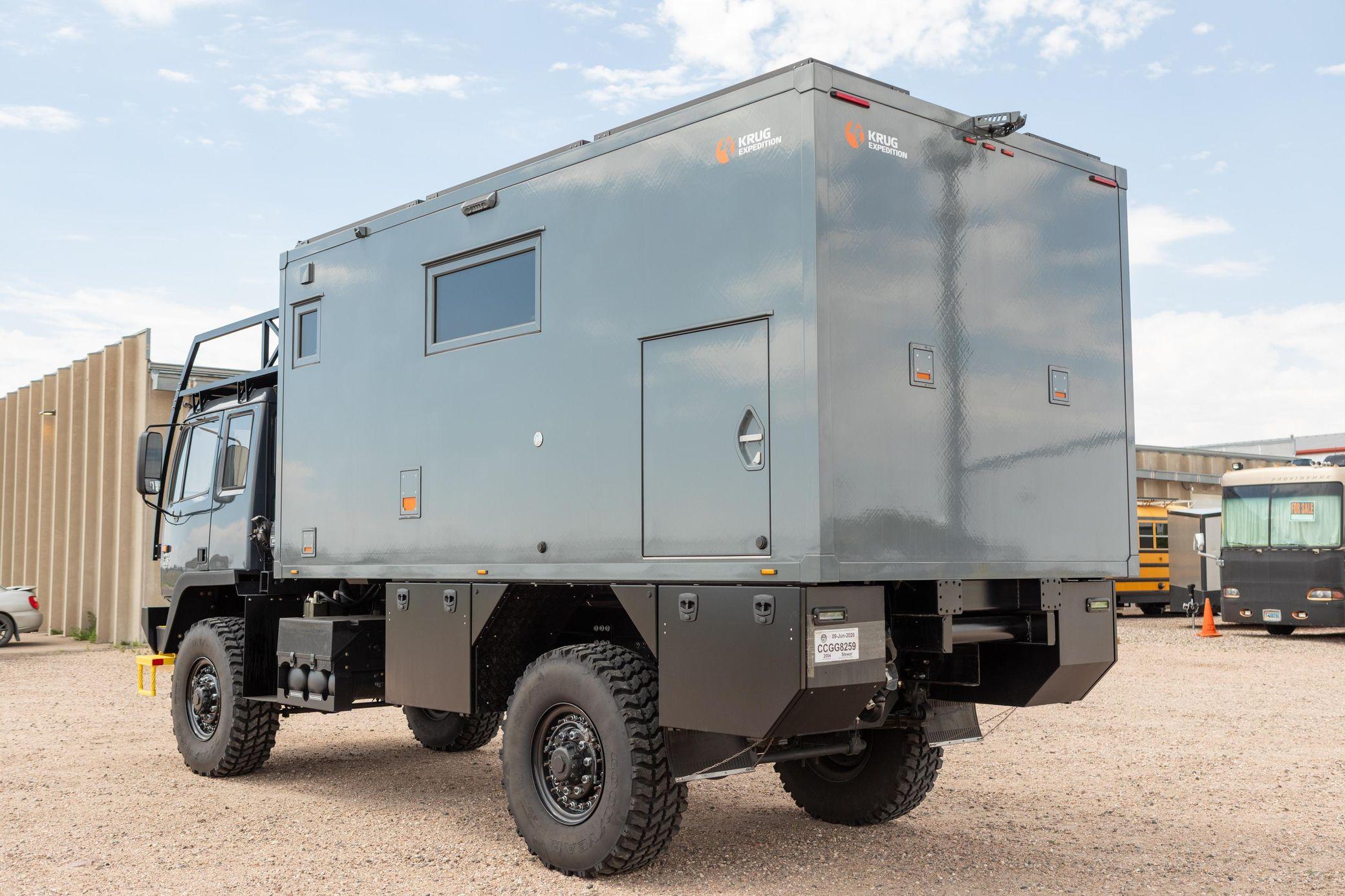

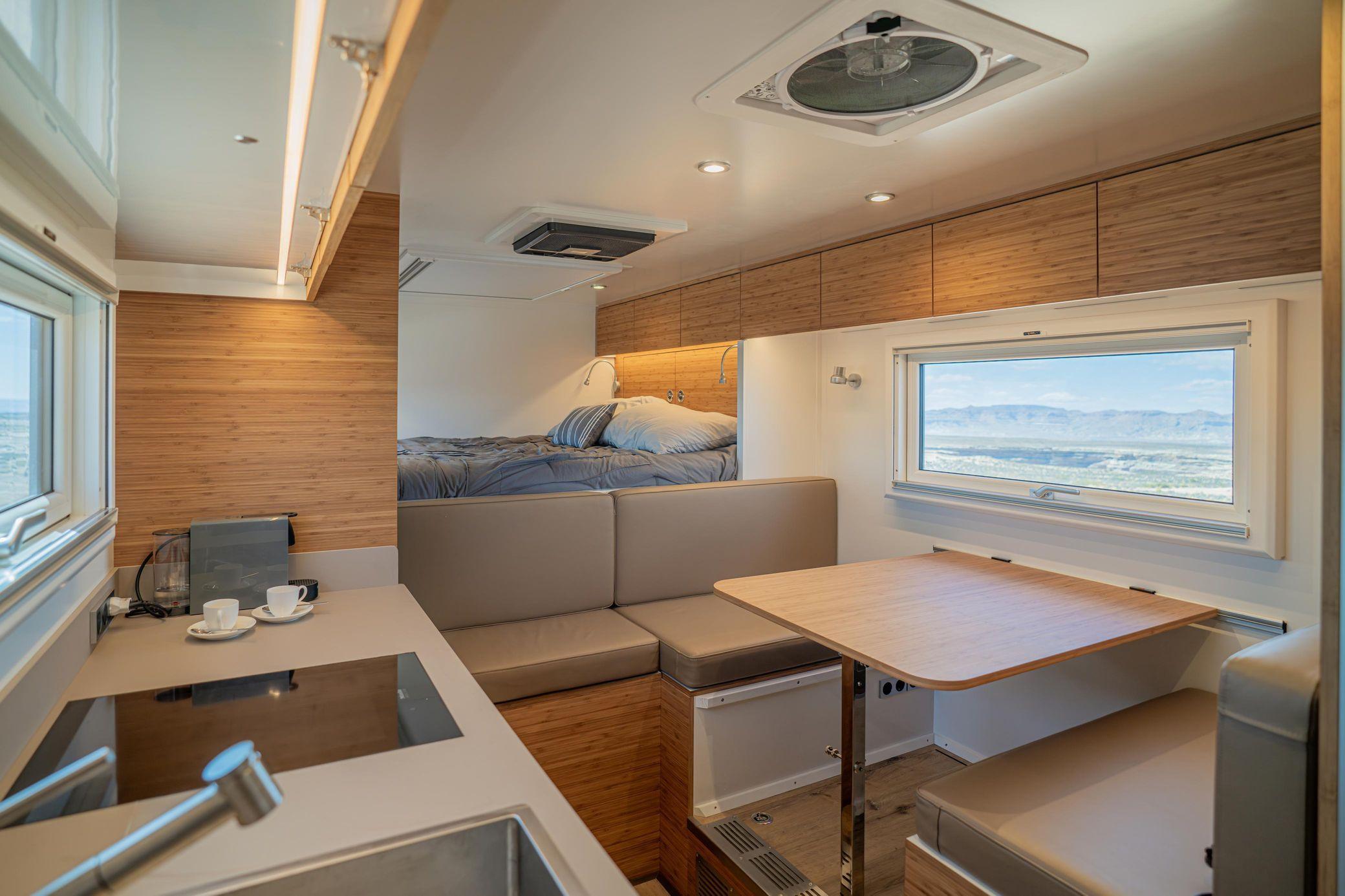

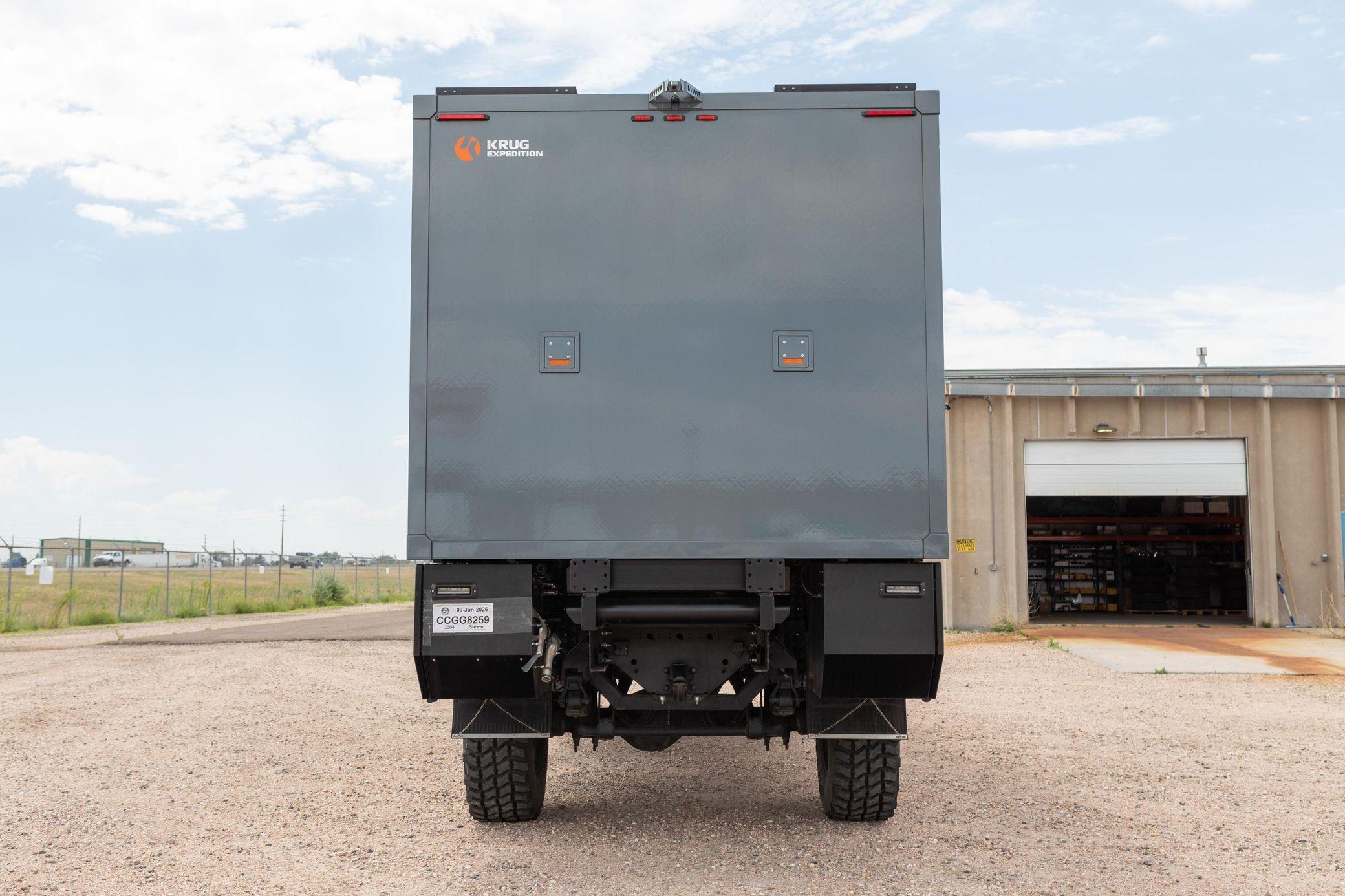

- KRUG Type C Living Module: The 4.9-meter / 16-foot KRUG module is built from insulated composite sandwich panels and mounted on a torsion-free subframe designed to isolate the living space from chassis flex. Inside, it is laid out for long-term travel with a permanent rear bed, convertible dinette, enclosed bathroom, full kitchen, panoramic roof hatch, and extensive built-in storage.

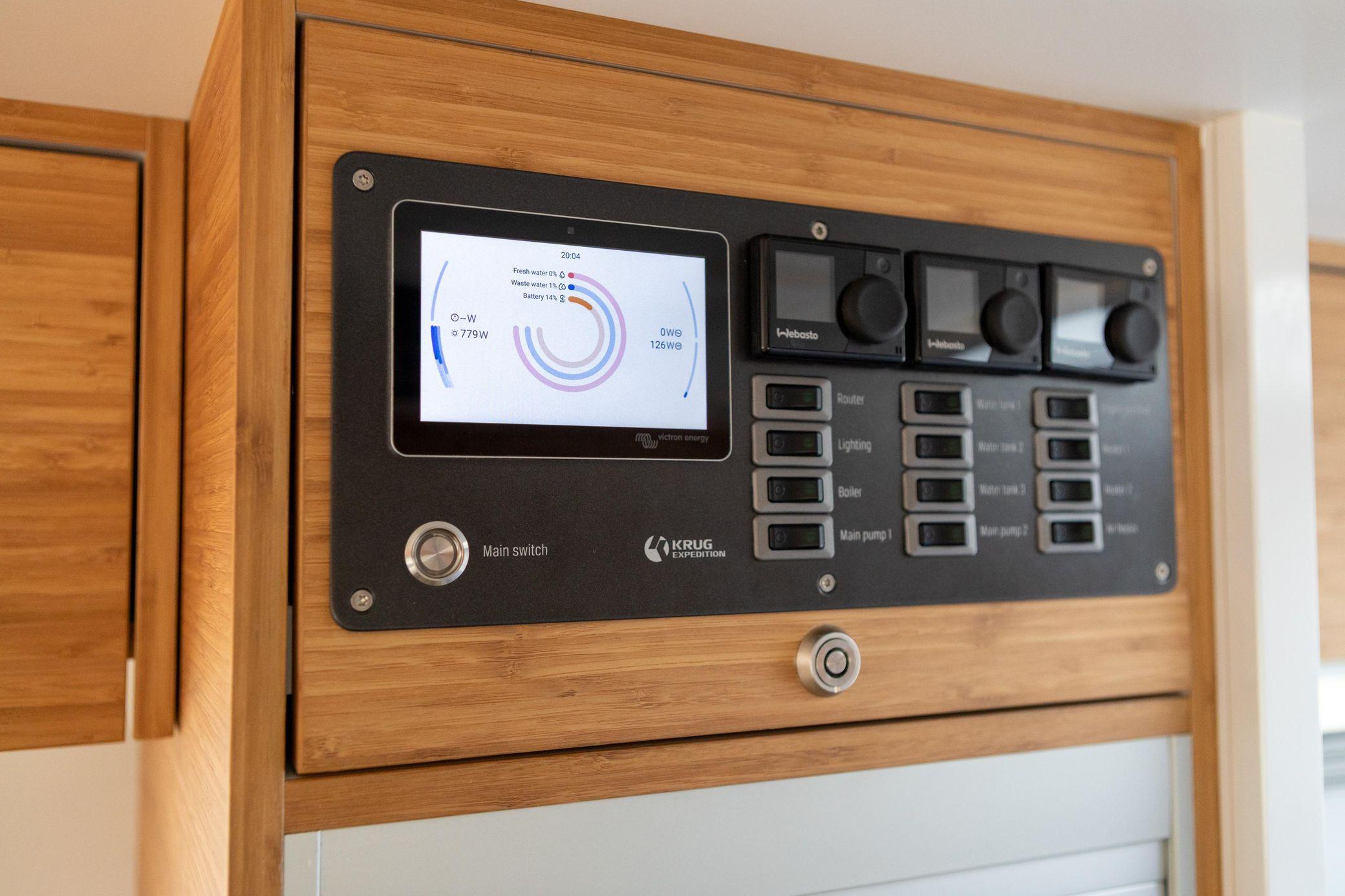

- Serious Off-Grid Power and Climate Control: A 990Ah 24V LiFePO4 battery bank works with 1,400 watts of solar and dual Victron Quattro inverter/chargers serving both 120V and 230V circuits. Climate control is equally comprehensive, with hydronic heating, a 5kW Webasto diesel heater, additional 9kW Webasto heater for high-altitude use, auxiliary air heater, Dometic RTX 2000 rooftop A/C, underfloor heating, and a Maxxair roof ventilator.
- Long-Range Water and Expedition Systems: The module carries 130 gallons of fresh water and 66 gallons of gray water, supported by three-stage filtration, PURION 1000 UV treatment, and a General Ecology Seagull IV X2 drinking-water system. Exterior storage, surround-view cameras, auxiliary lighting, Starlink preparation, remote electrical monitoring, and Atlas fold-out stairs round out a package built for extended self-sufficient travel.
About the Acela Monterra and KRUG Expedition Platform
The Acela Monterra is built around remanufactured military-derived truck architecture, then reworked for civilian expedition and specialty use with updated driveline, braking, electrical, cooling, and comfort systems. The appeal is straightforward: commercial-duty hardware, substantial payload capacity, oversized tires, deep ground clearance, and a chassis designed to carry serious weight across poor surfaces.
KRUG’s expedition modules take that foundation in a more residential direction. Rather than treating the camper as an accessory shell, the Type C module is engineered as a self-contained living system with insulated composite construction, independent electrical and water systems, full climate control, permanent sleeping accommodations, and a mounting system designed around chassis articulation. Together, the Monterra and KRUG module create a true long-range expedition vehicle rather than a converted recreational truck.
Powertrain & Chassis
- Caterpillar 7.2L turbo-diesel inline-six
- 330 horsepower
- 860 lb-ft of torque
- Allison 3070SP 7-speed automatic transmission
- 4x4 drivetrain
- High-speed gearing
- Extended wheelbase

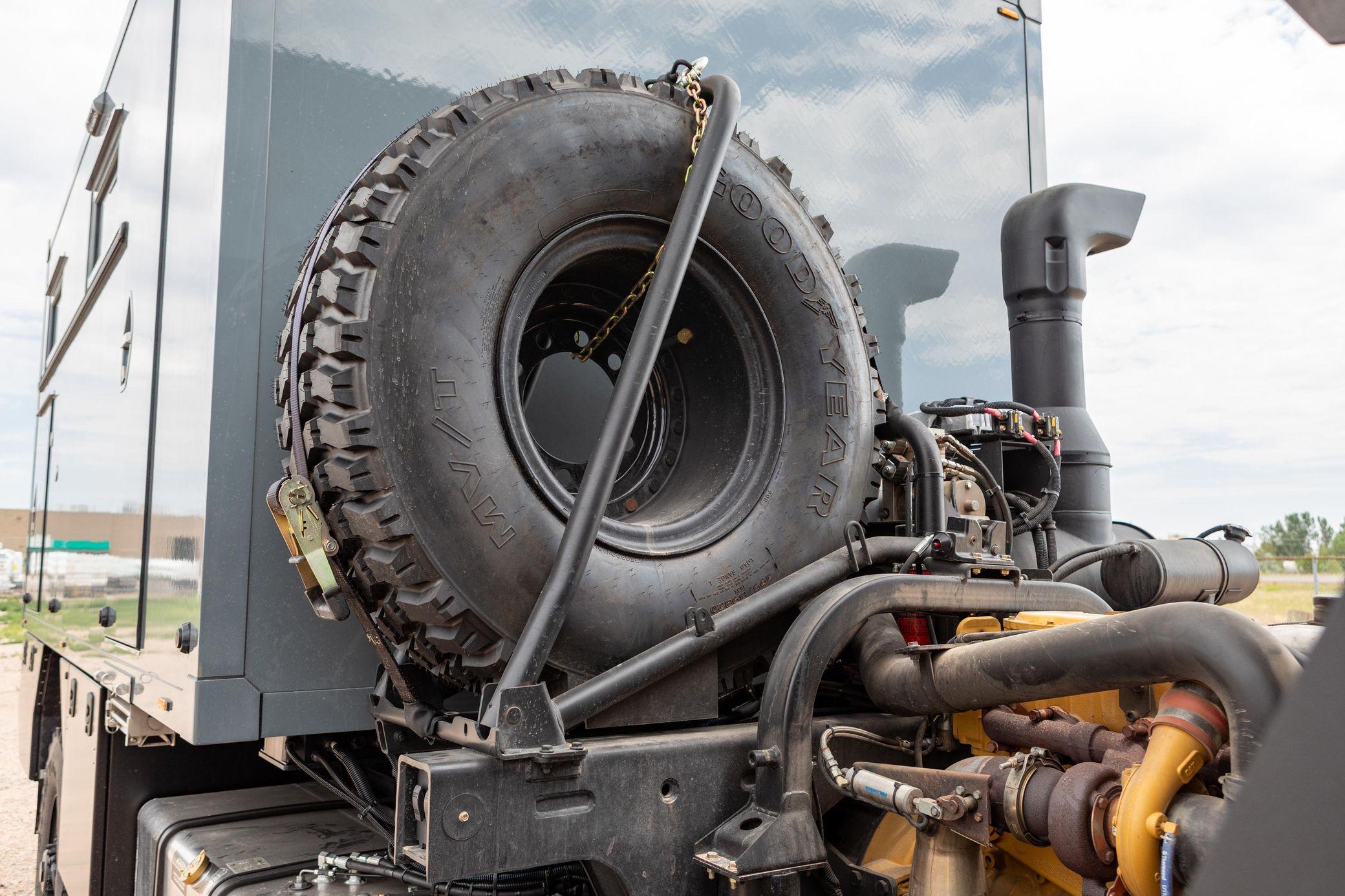

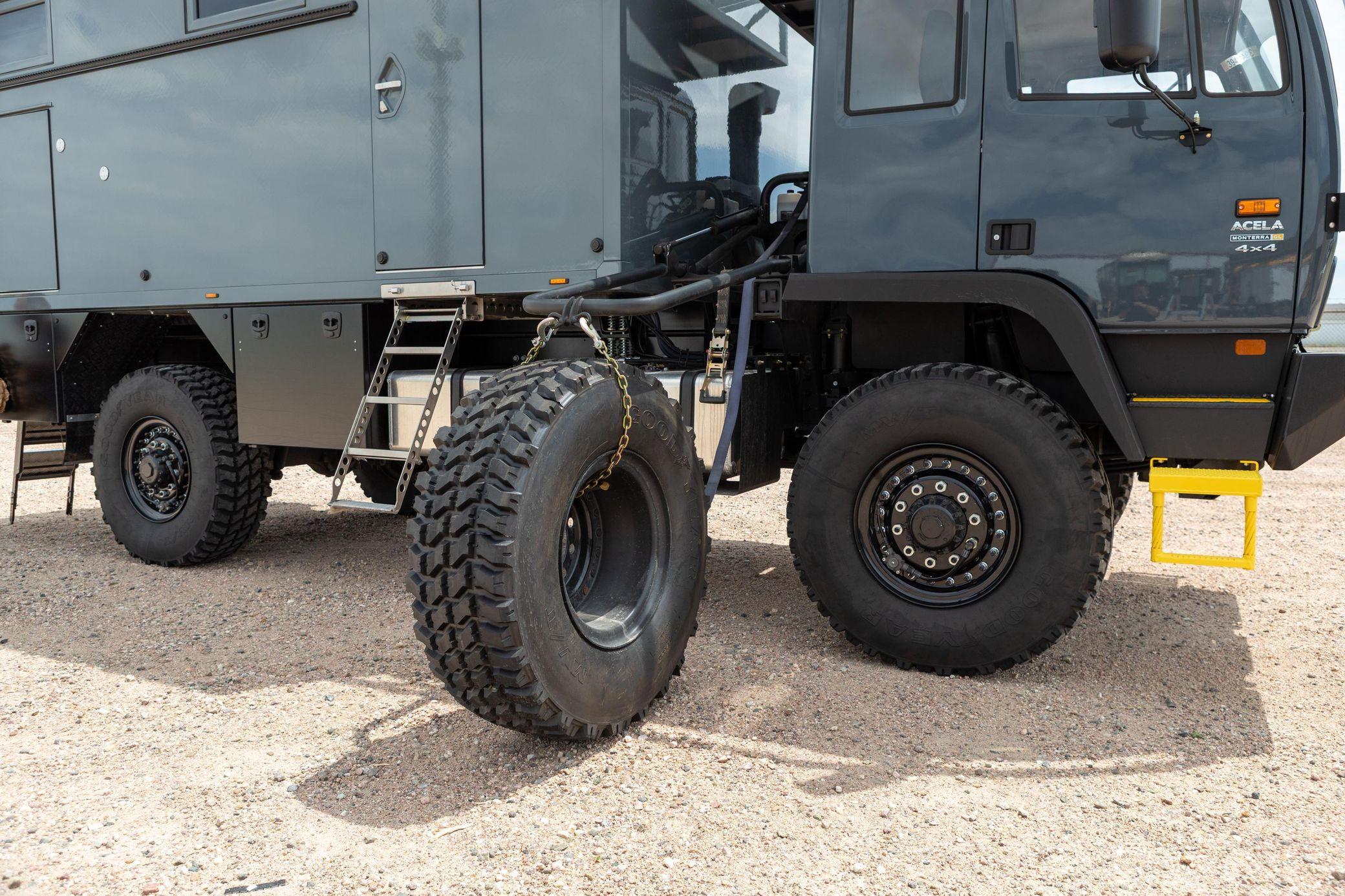

- 46-inch Goodyear MV/T tires
- 20-inch wheels
- Central Tire Inflation System
- 22 inches of ground clearance
- Cooling-fan disconnect for water crossings up to 30 inches

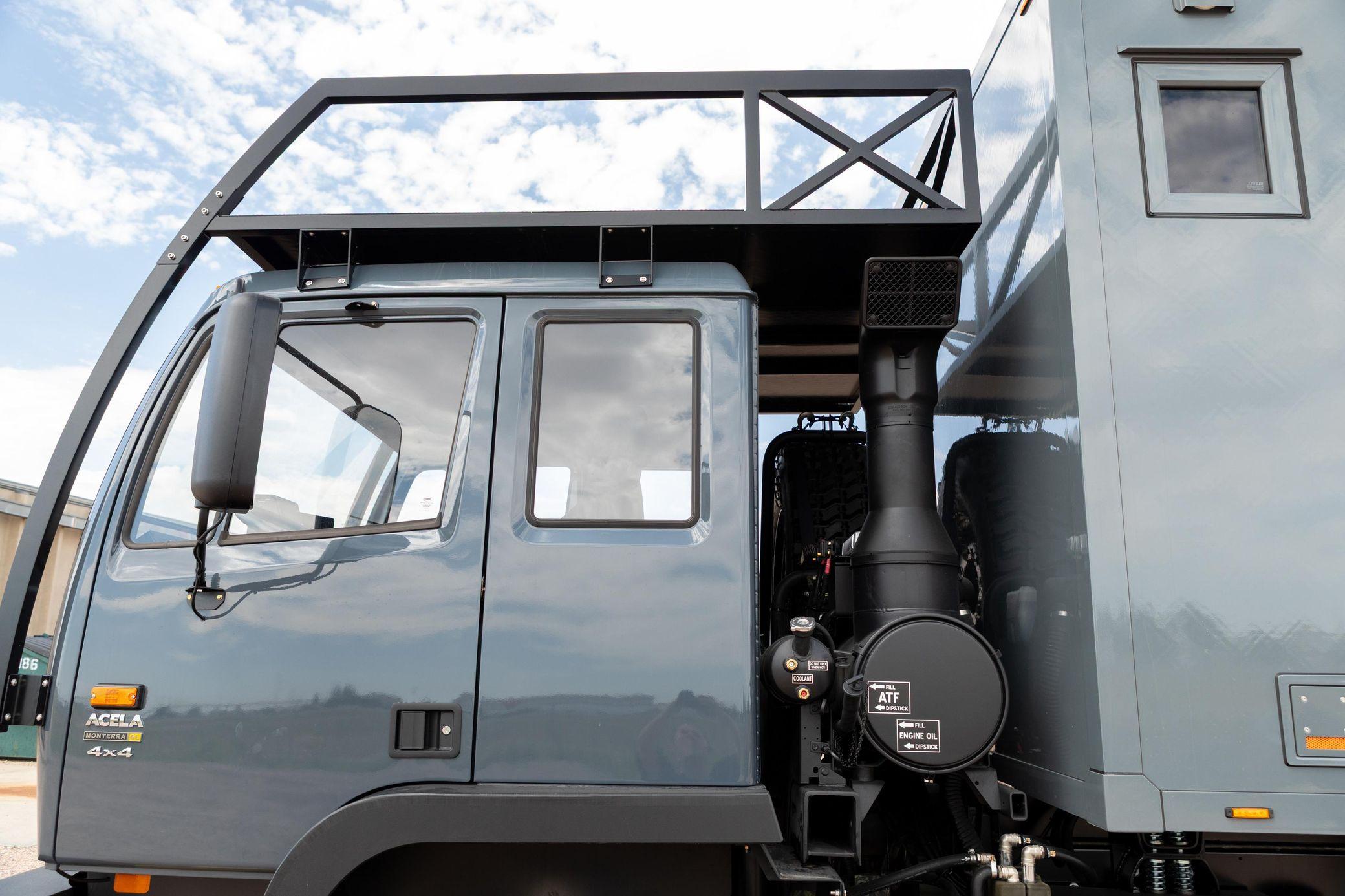

- Raised air intake system
- Air braking system

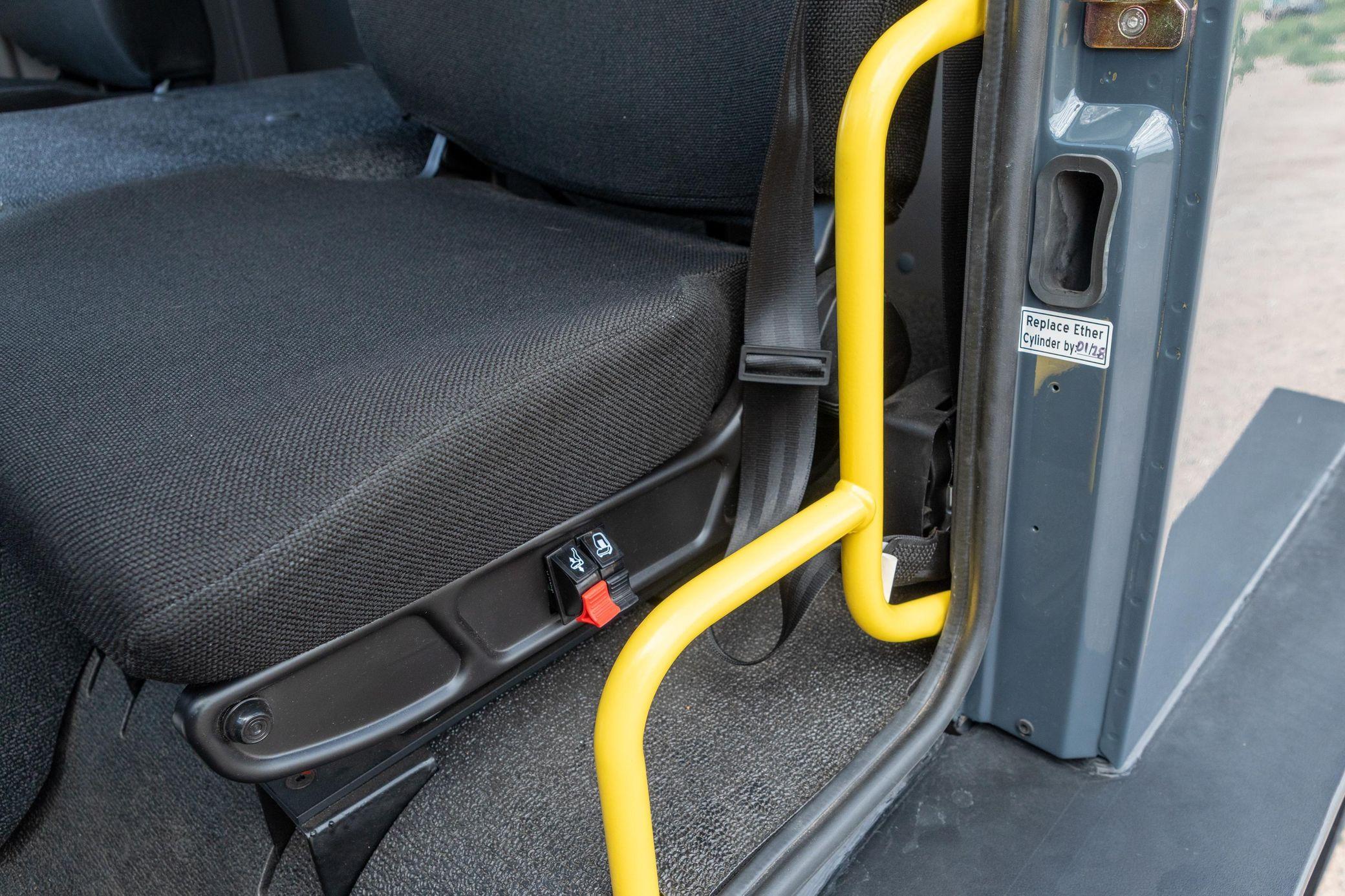

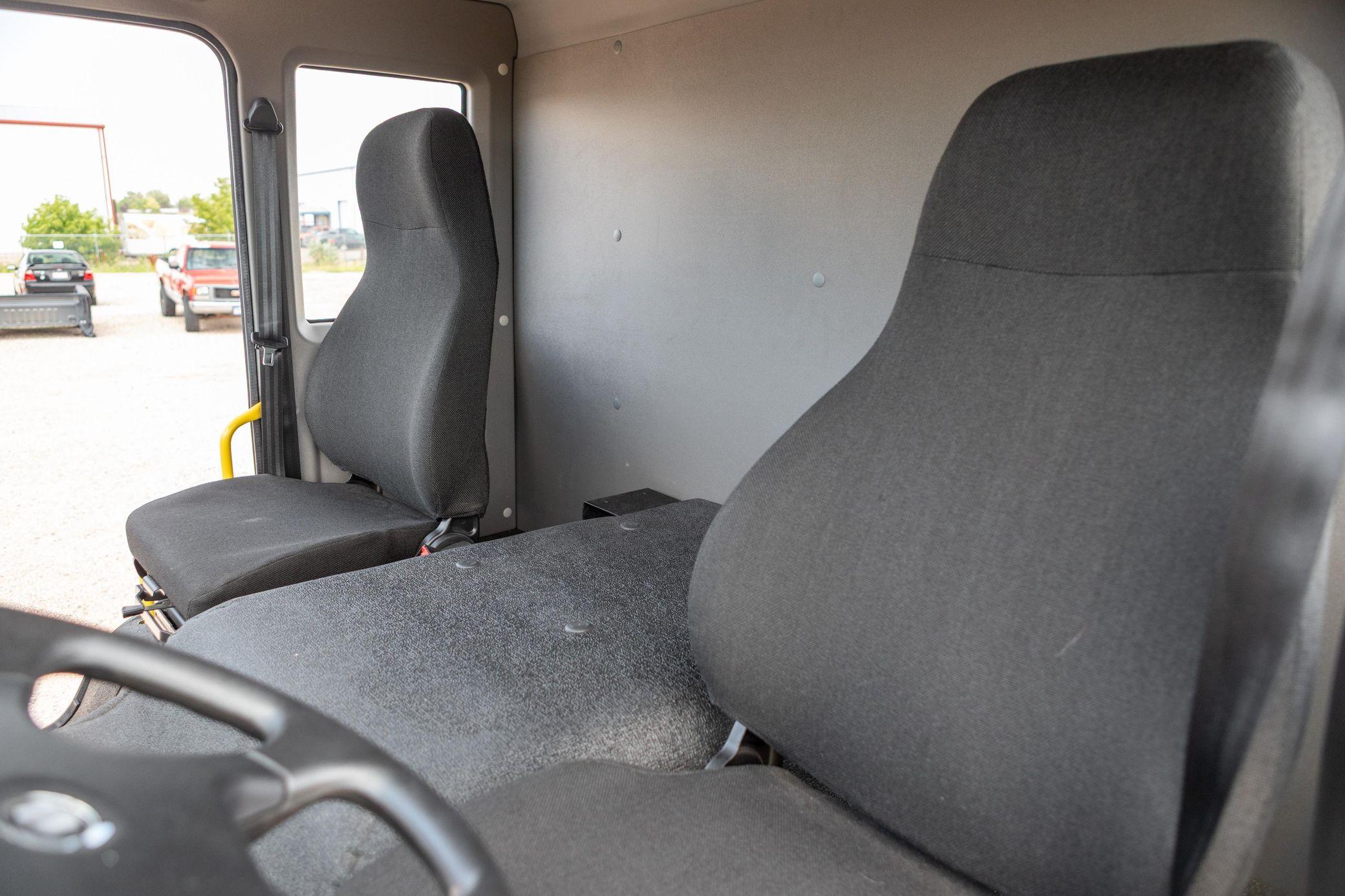

- Air-suspension seats

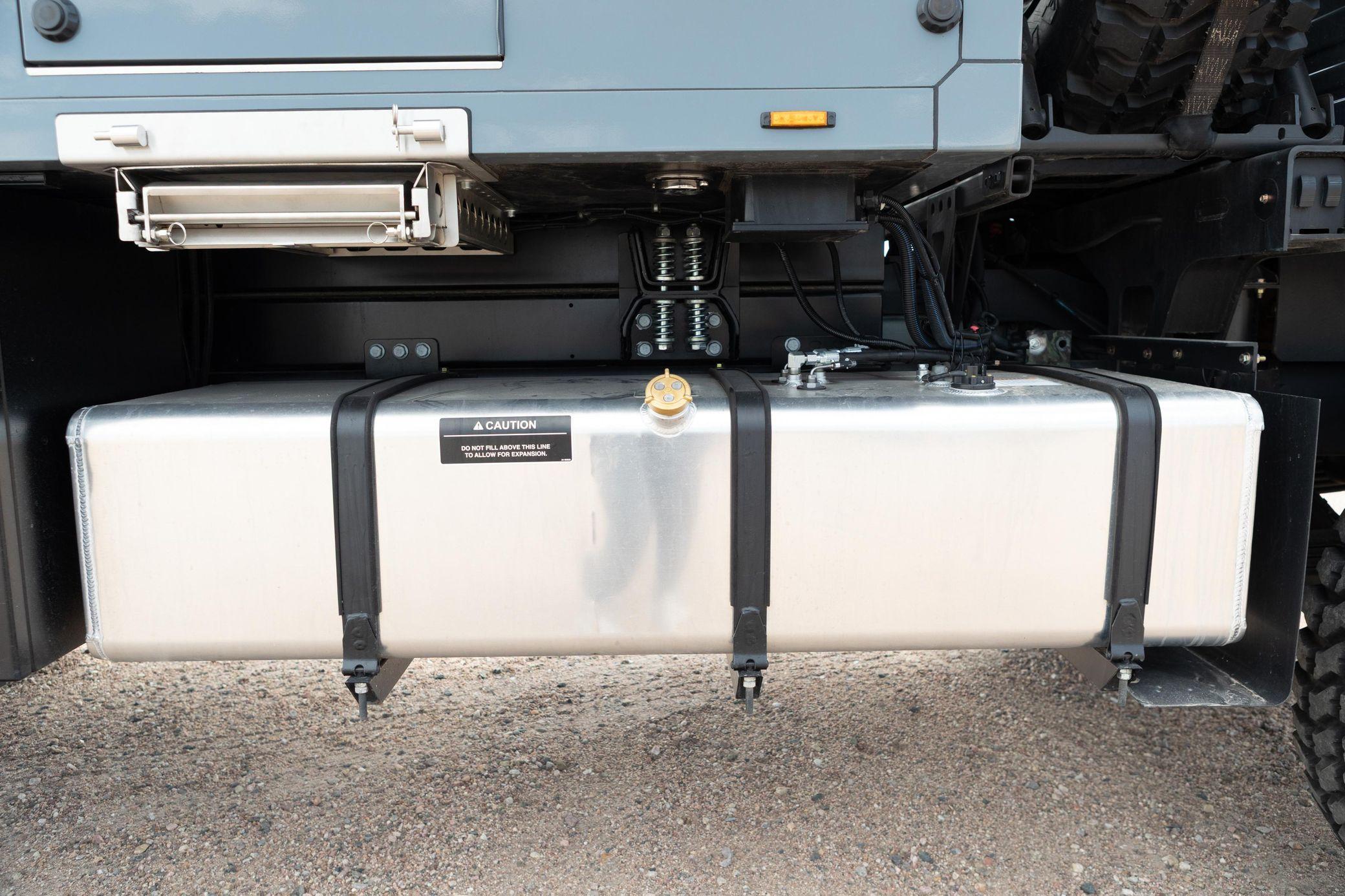

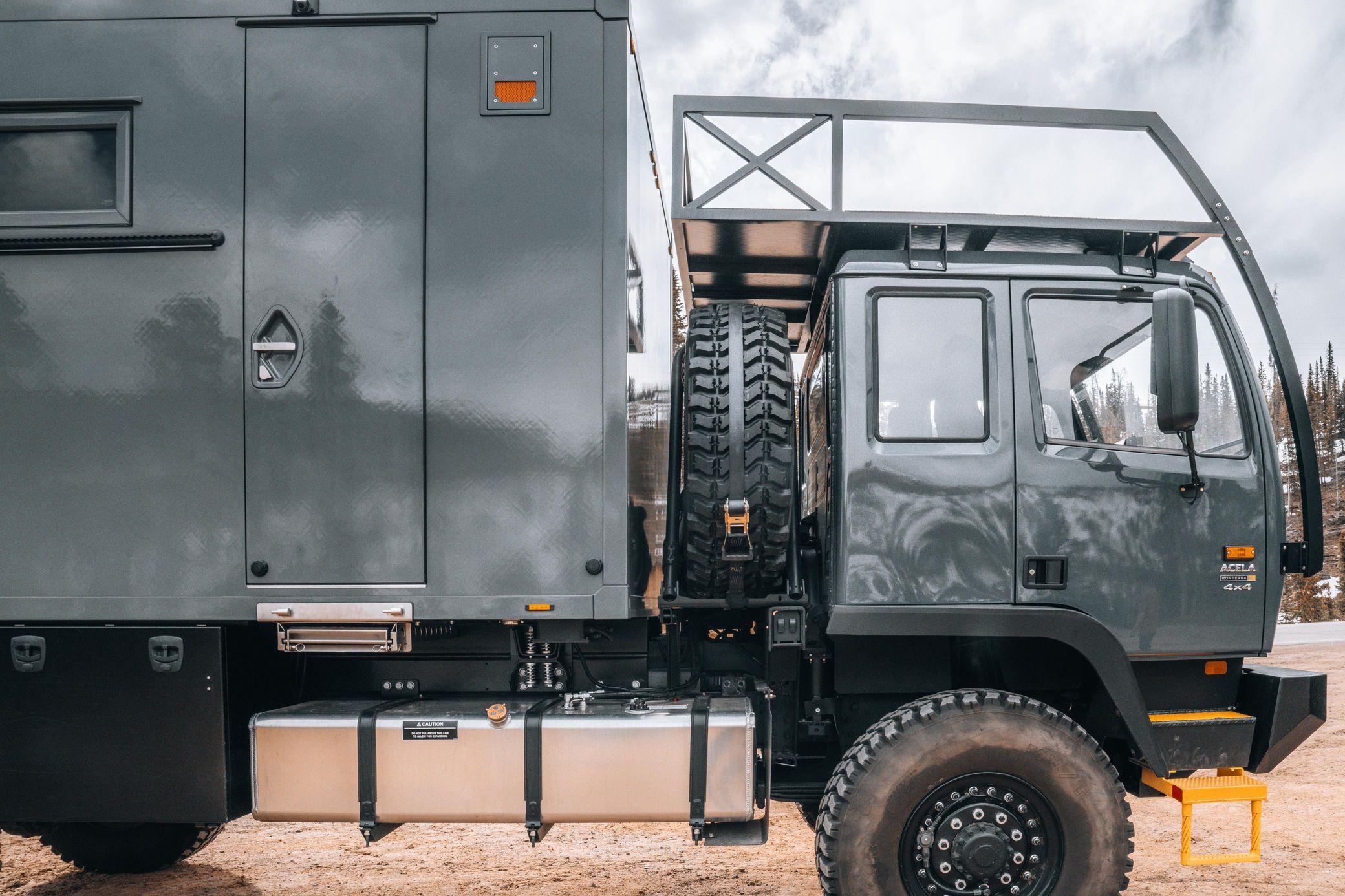

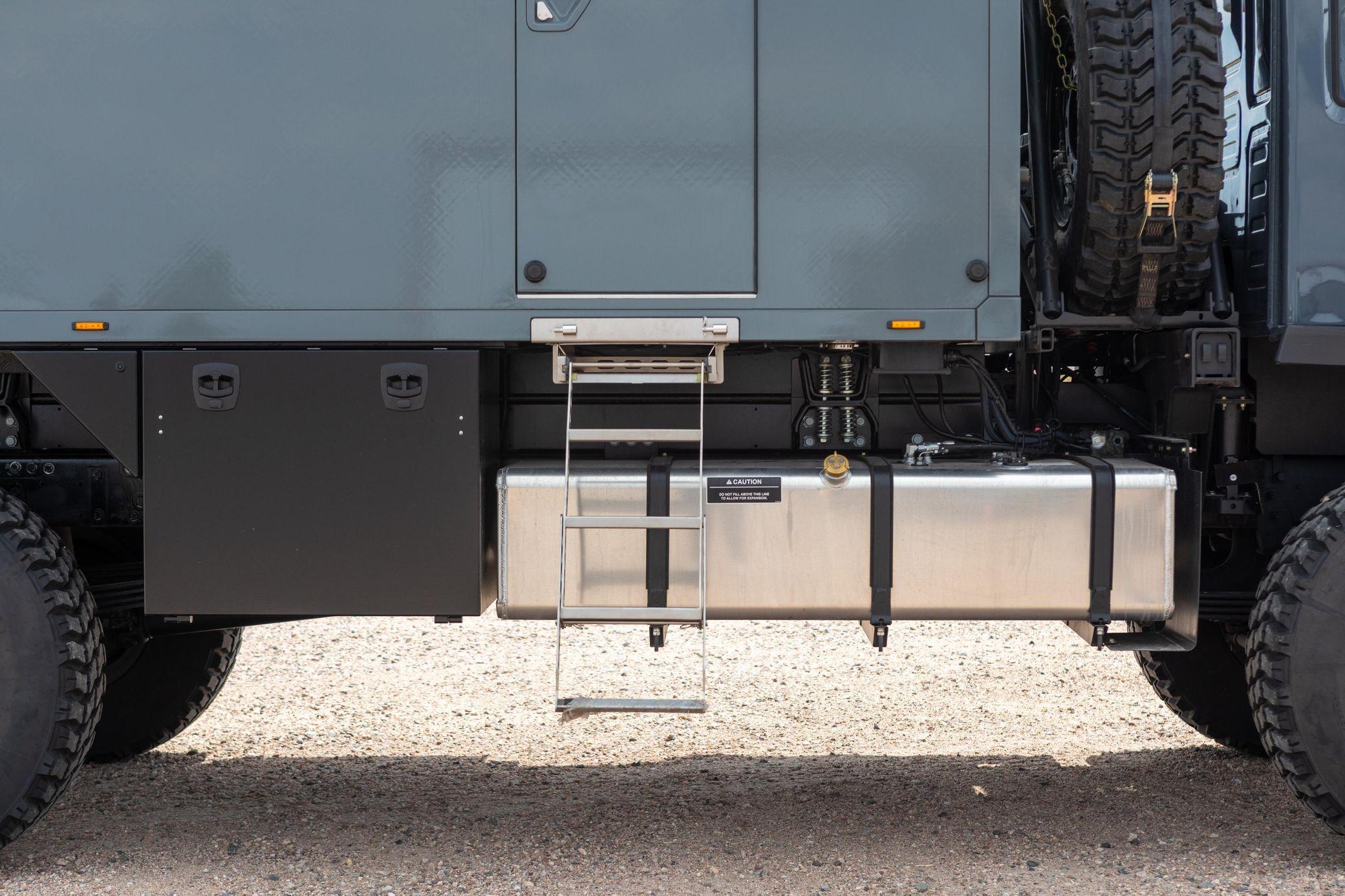

- 113-gallon extended-range aluminum fuel tank
- Torsion-free module subframe
- PIAA driving lights
- Auxiliary off-road lighting
- Roof rack
- Exterior ladder

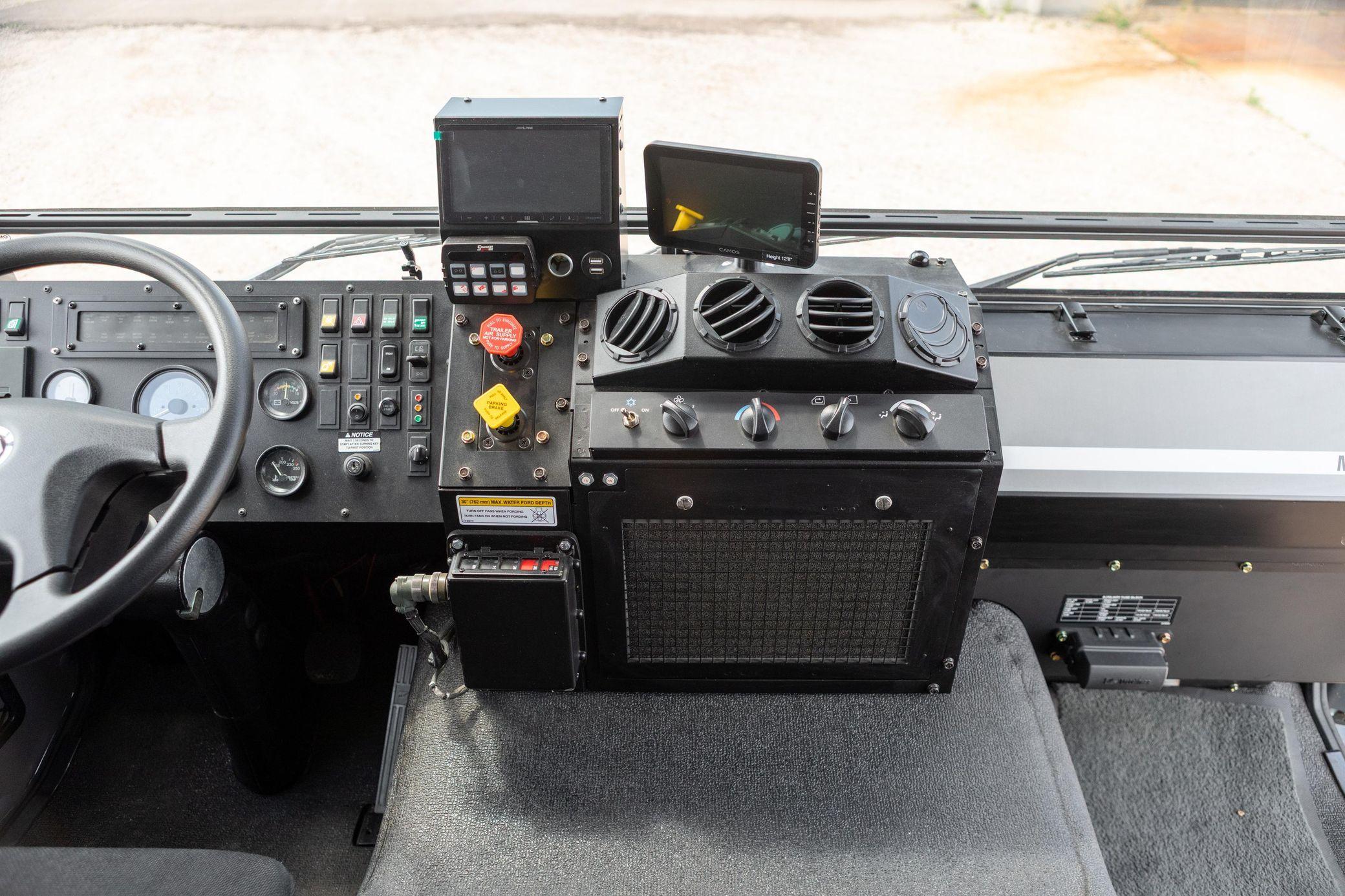

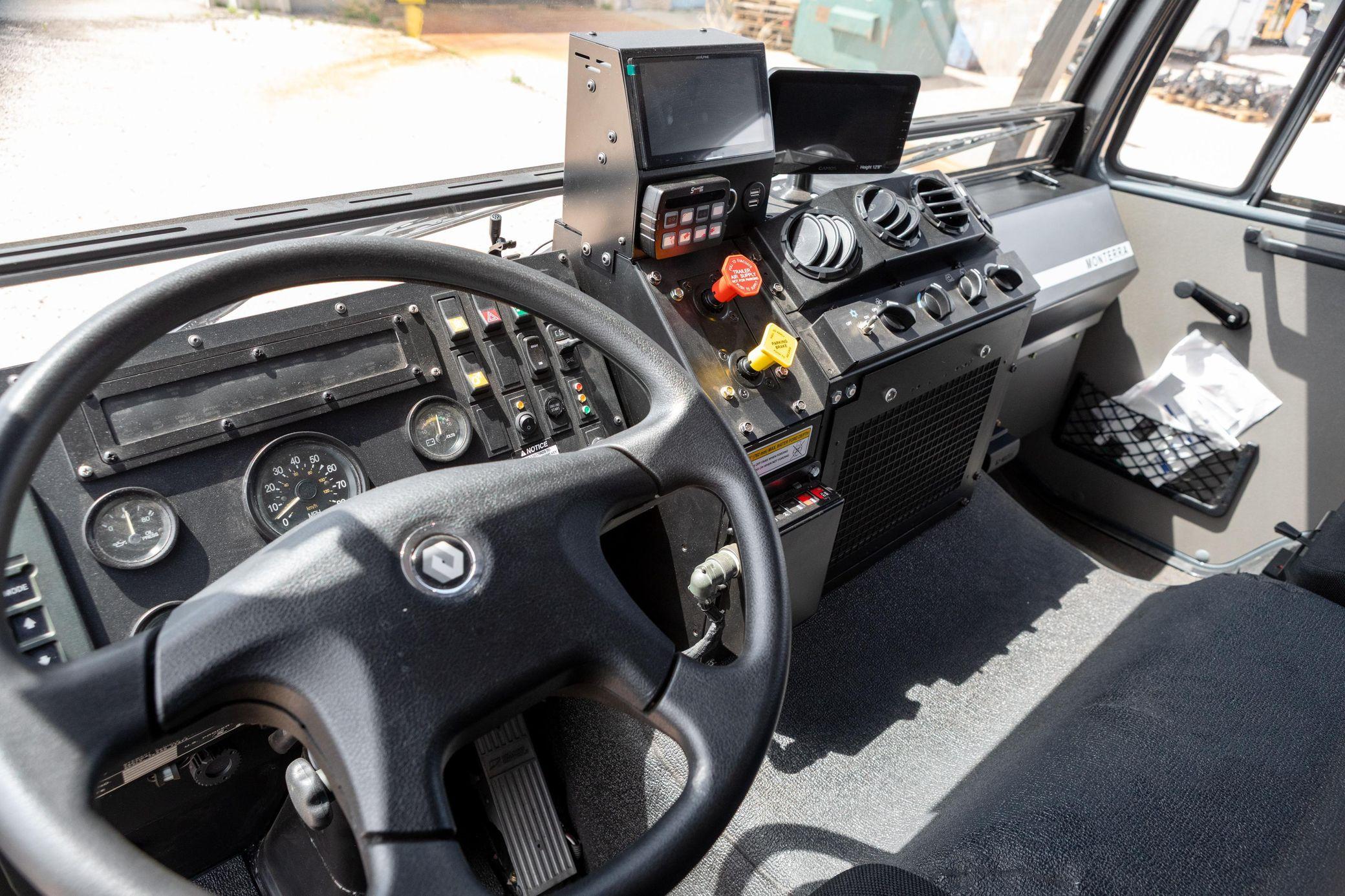

Cab & Driver Equipment
- Alpine touchscreen head unit
- Camos 360-degree camera system
- Four wide-angle exterior cameras
- Cab heating
- Cab air conditioning
- 12V power outlets
- USB charging outlets
KRUG Expedition Living Module
- KRUG Expedition Type C module
- Approximately 16 feet / 4.9 meters long
- Insulated composite sandwich-panel construction
- Torsion-free mounting system
- Permanent rear double bed
- FROLI spring bed system
- Convertible dinette sleeping area
- Leather-upholstered dinette
- Wood veneer furniture surfaces
- Panoramic roof hatch glazing

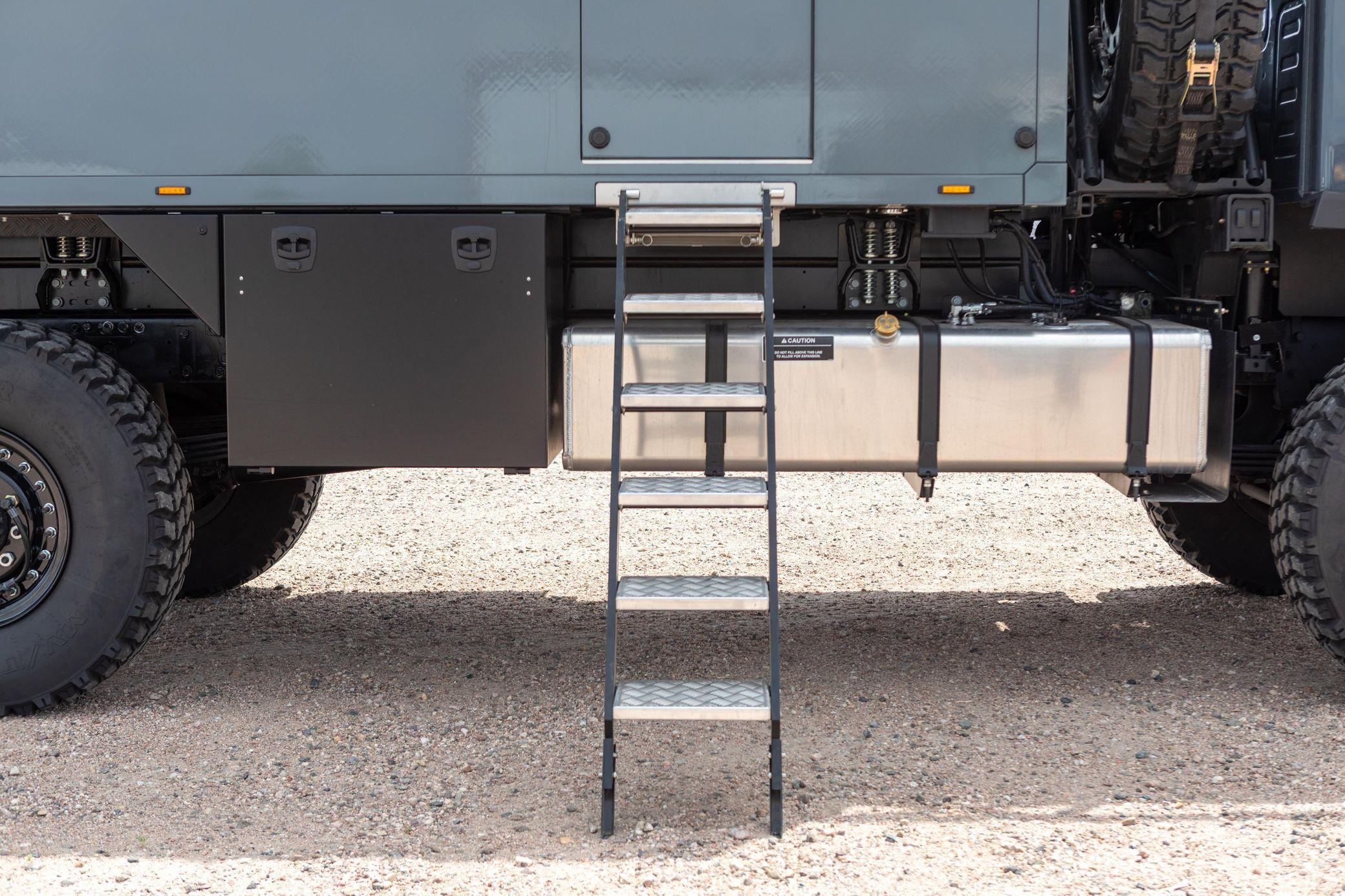

- Atlas fold-out stairs
- Three underfloor storage boxes
- Four wheel-arch storage compartments
- Starlink preparation
- Worldwide remote electrical-system monitoring
Electrical & Solar
- Victron 24V electrical system

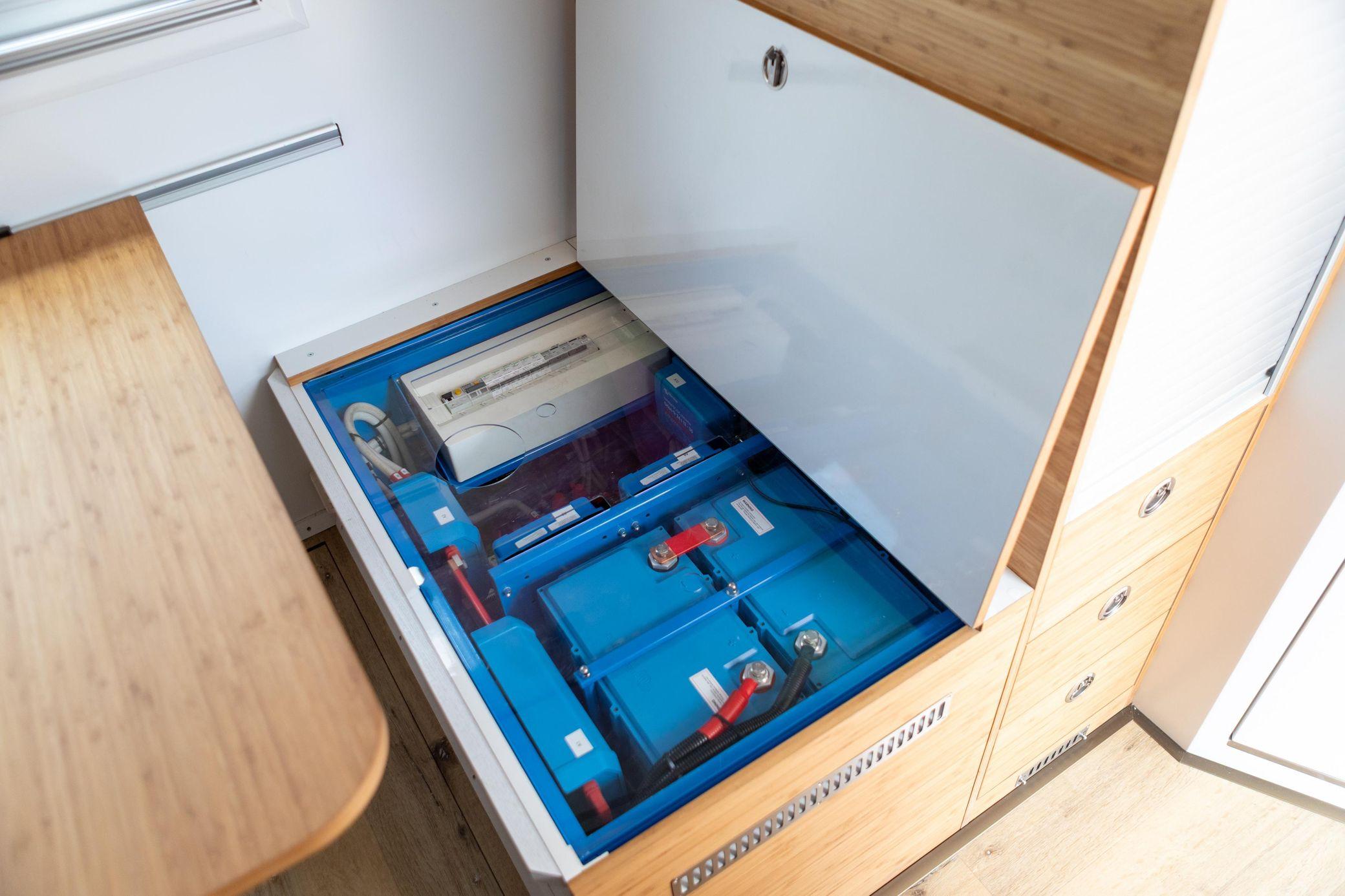

- 990Ah LiFePO4 battery bank
- Victron Quattro 5000 120V inverter/charger
- Victron Quattro 8000 230V inverter/charger
- 1,400W solar array
- 120V outlets
- 230V outlets
- USB-C charging ports
- Dimmable LED interior lighting
Heating & Cooling
- Hydronic heating system
- Underfloor heating
- 5kW Webasto diesel heater
- Additional 9kW Webasto heater for high-altitude operation
- Auxiliary Webasto air heater
- Dometic RTX 2000 rooftop air conditioner
- Maxxair roof ventilator with rain sensor
Water System
- 130-gallon fresh-water tank
- 66-gallon gray-water tank

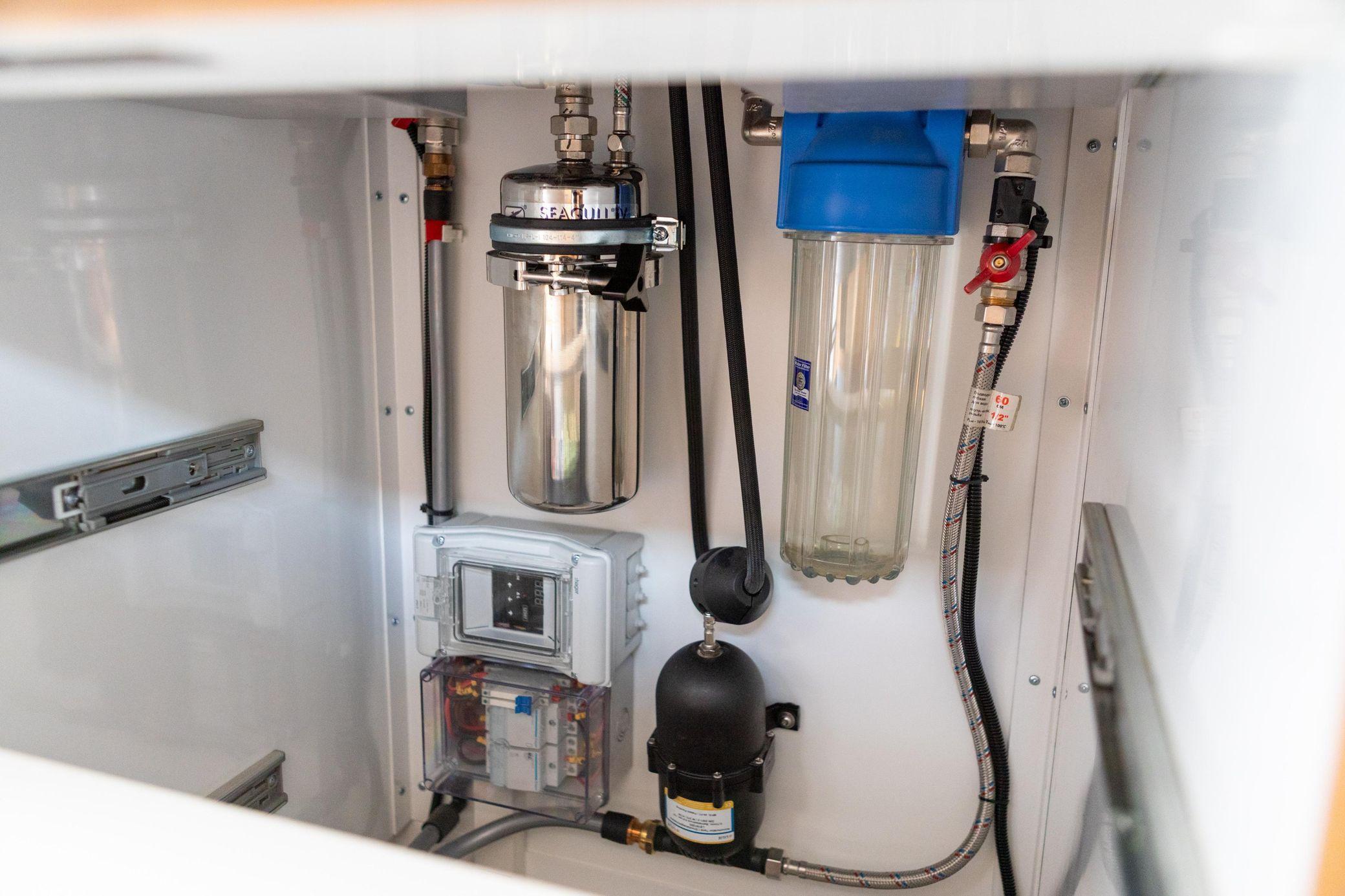

- Three-stage fresh-water filtration
- PURION 1000 UV water-treatment system
- General Ecology Seagull IV X2 drinking-water filtration system

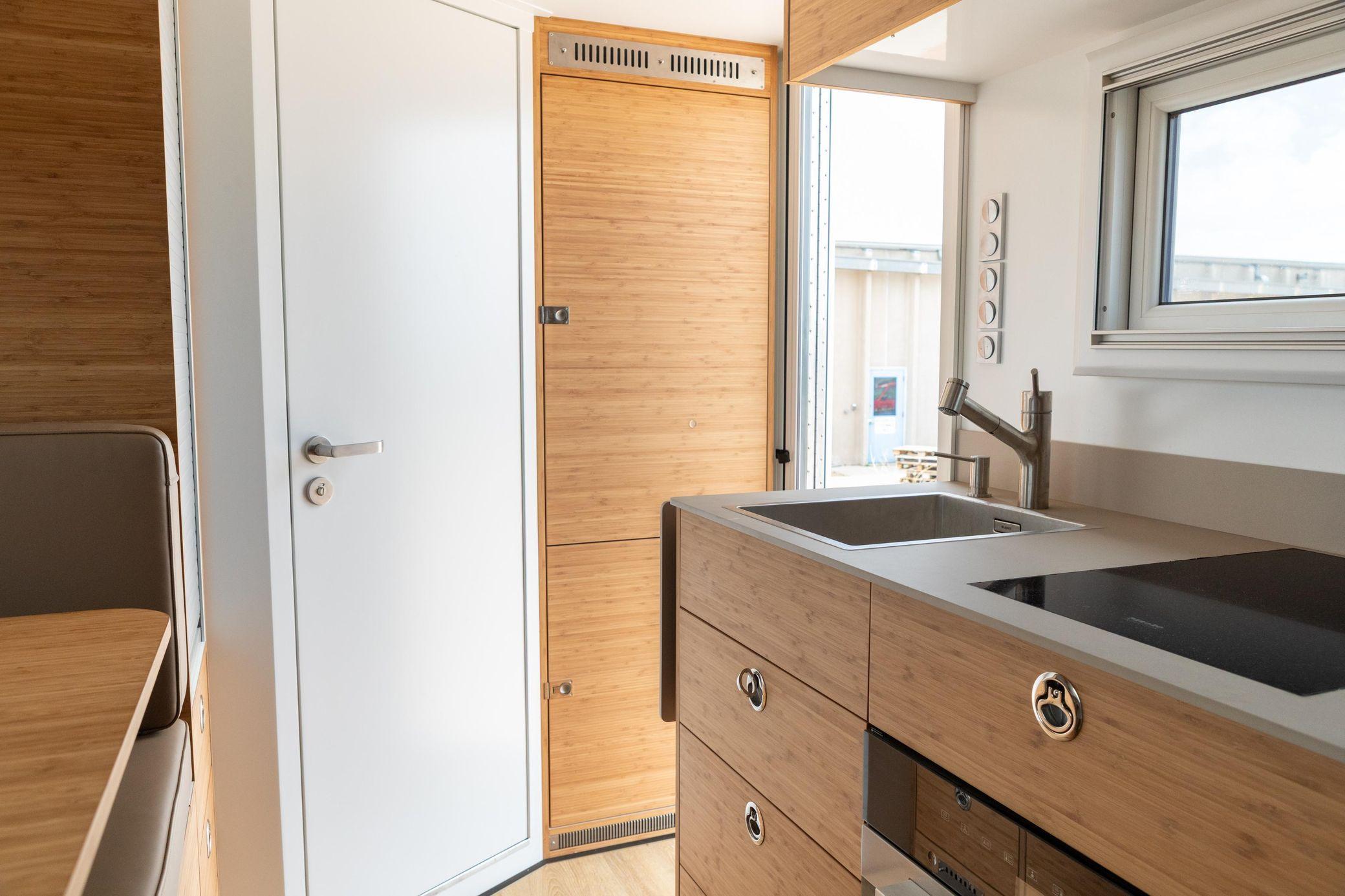

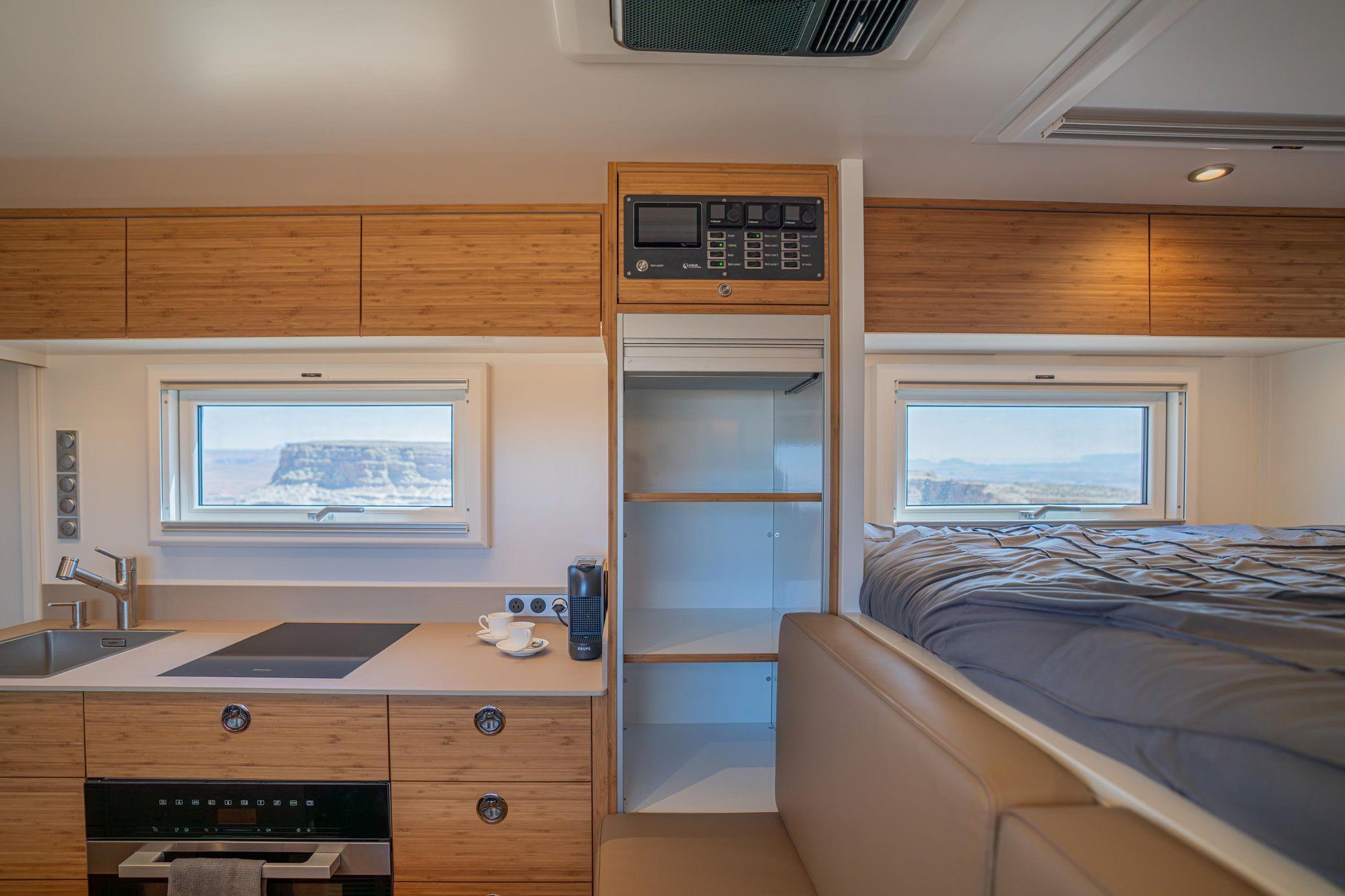

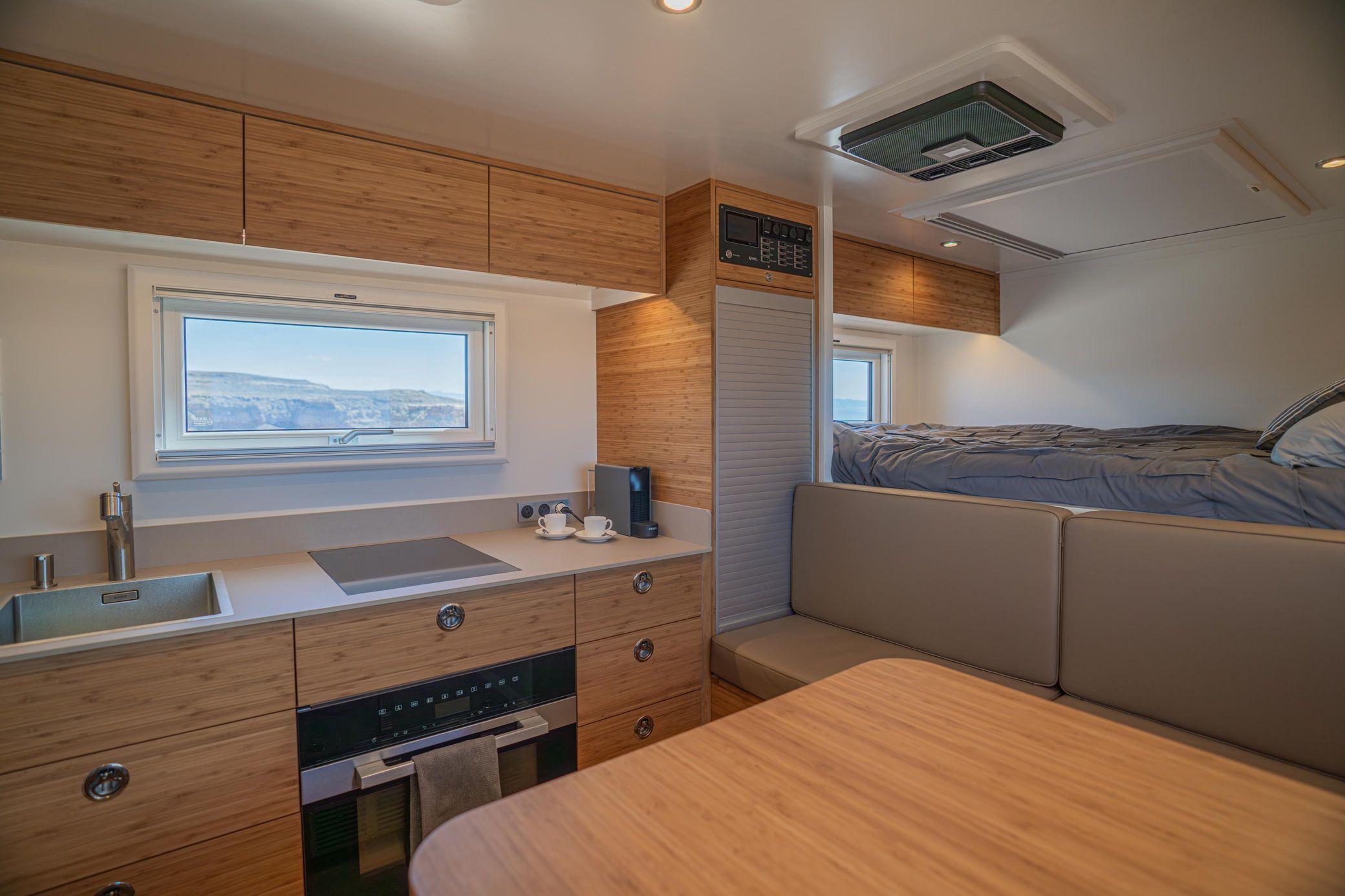

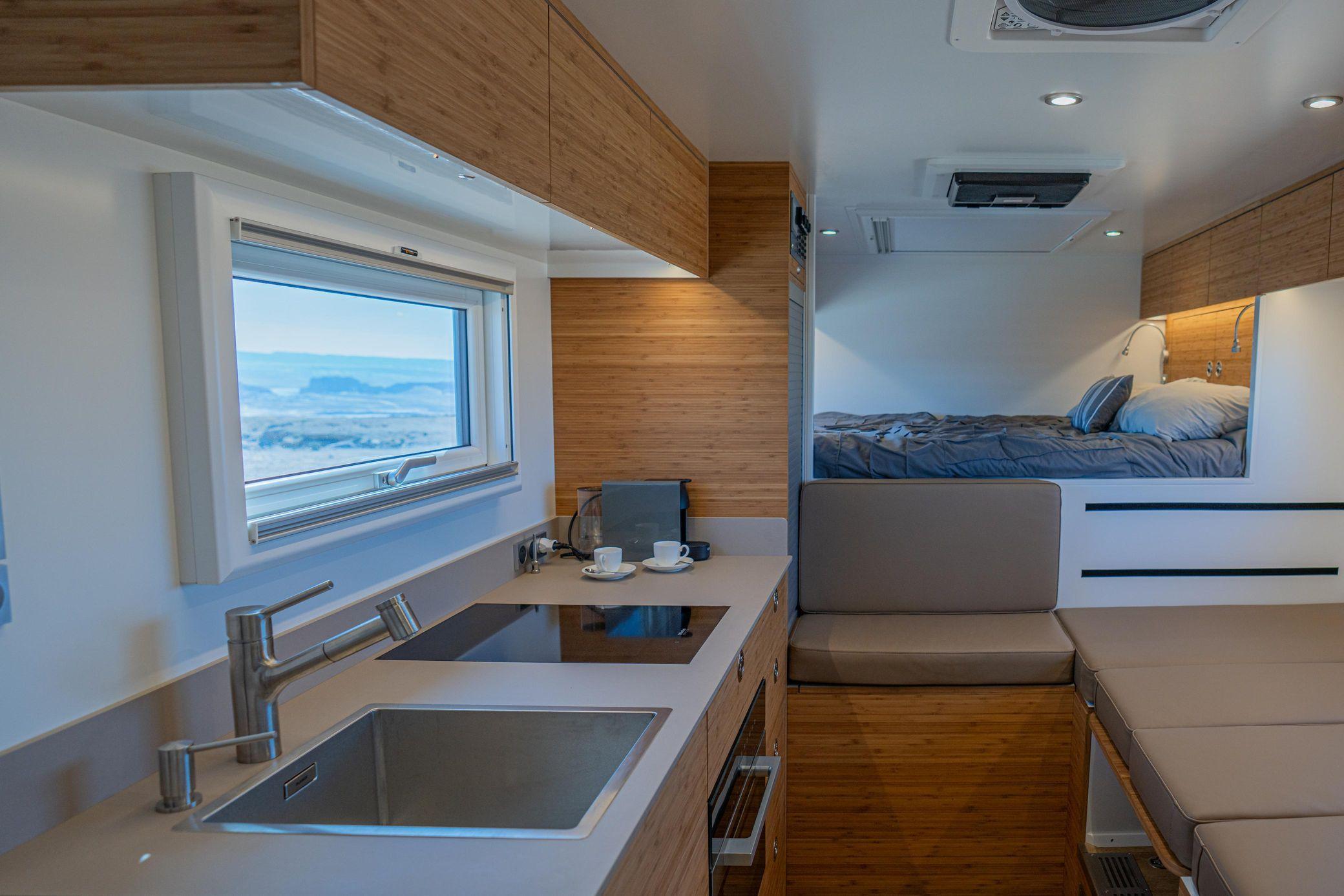

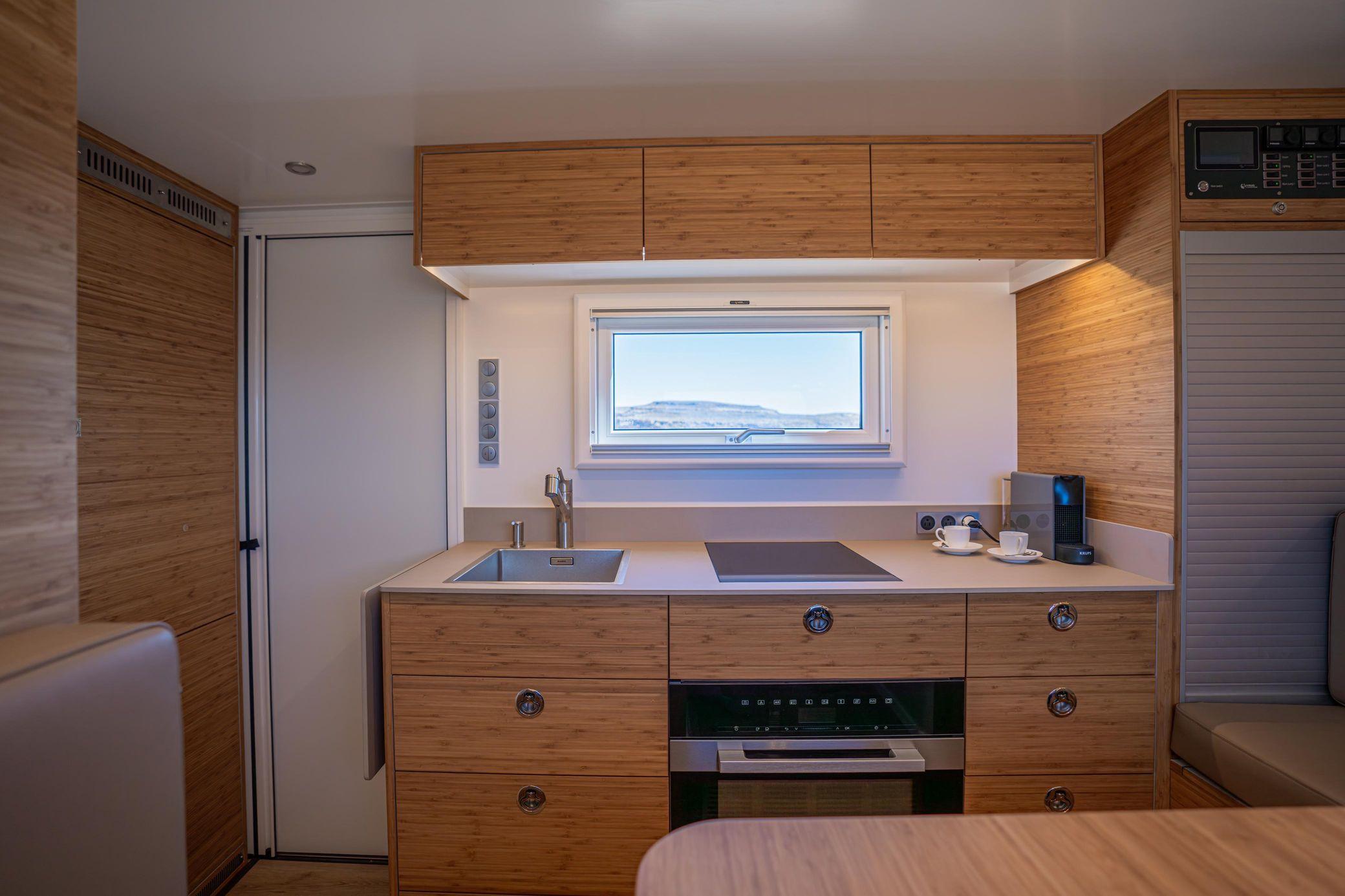

Kitchen
- Fenix NTM worktop
- Blanco stainless-steel sink
- Miele two-zone induction cooktop
- Miele steam oven with microwave function
- Vitrifrigo C270DP refrigerator/freezer

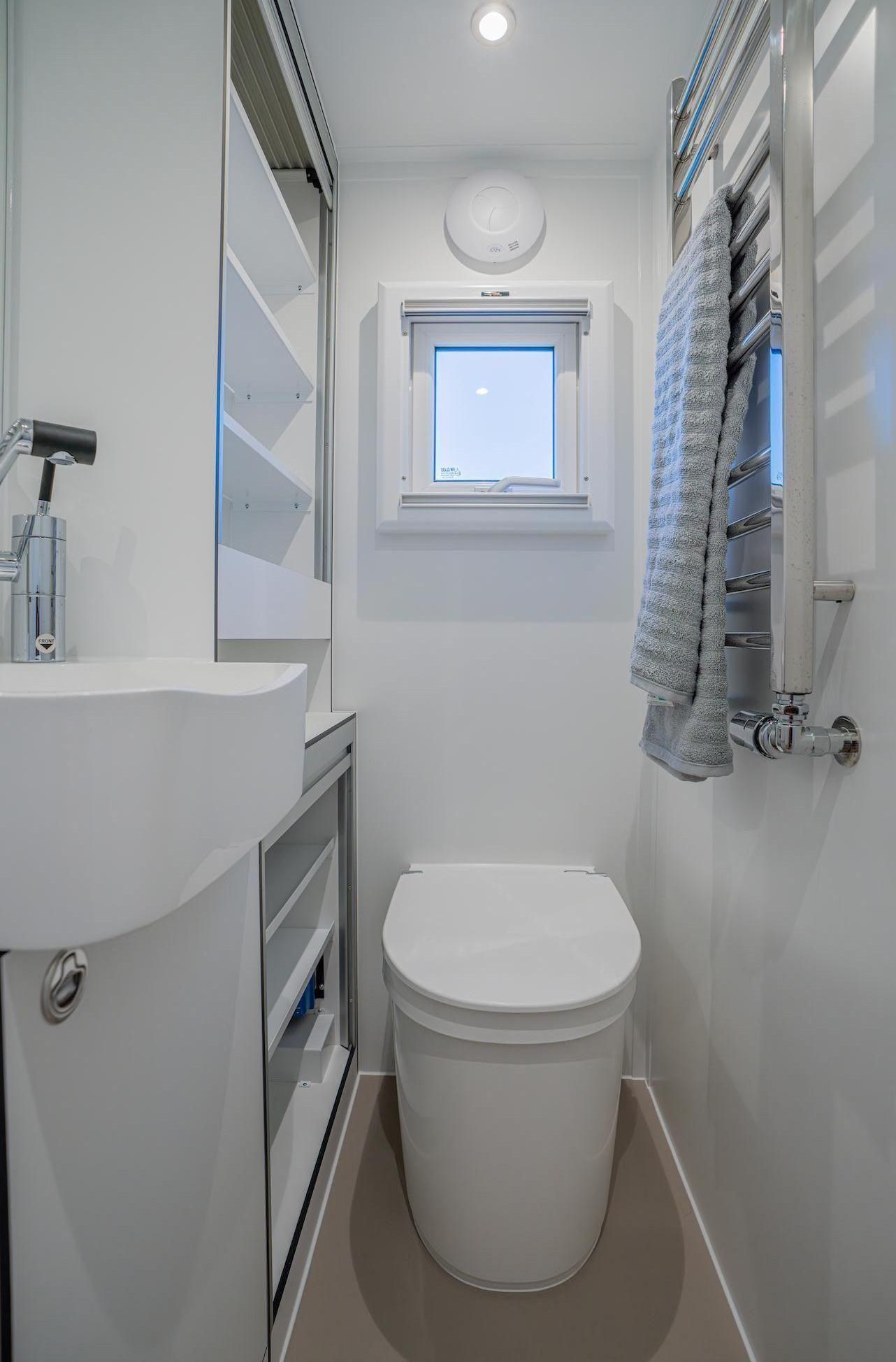

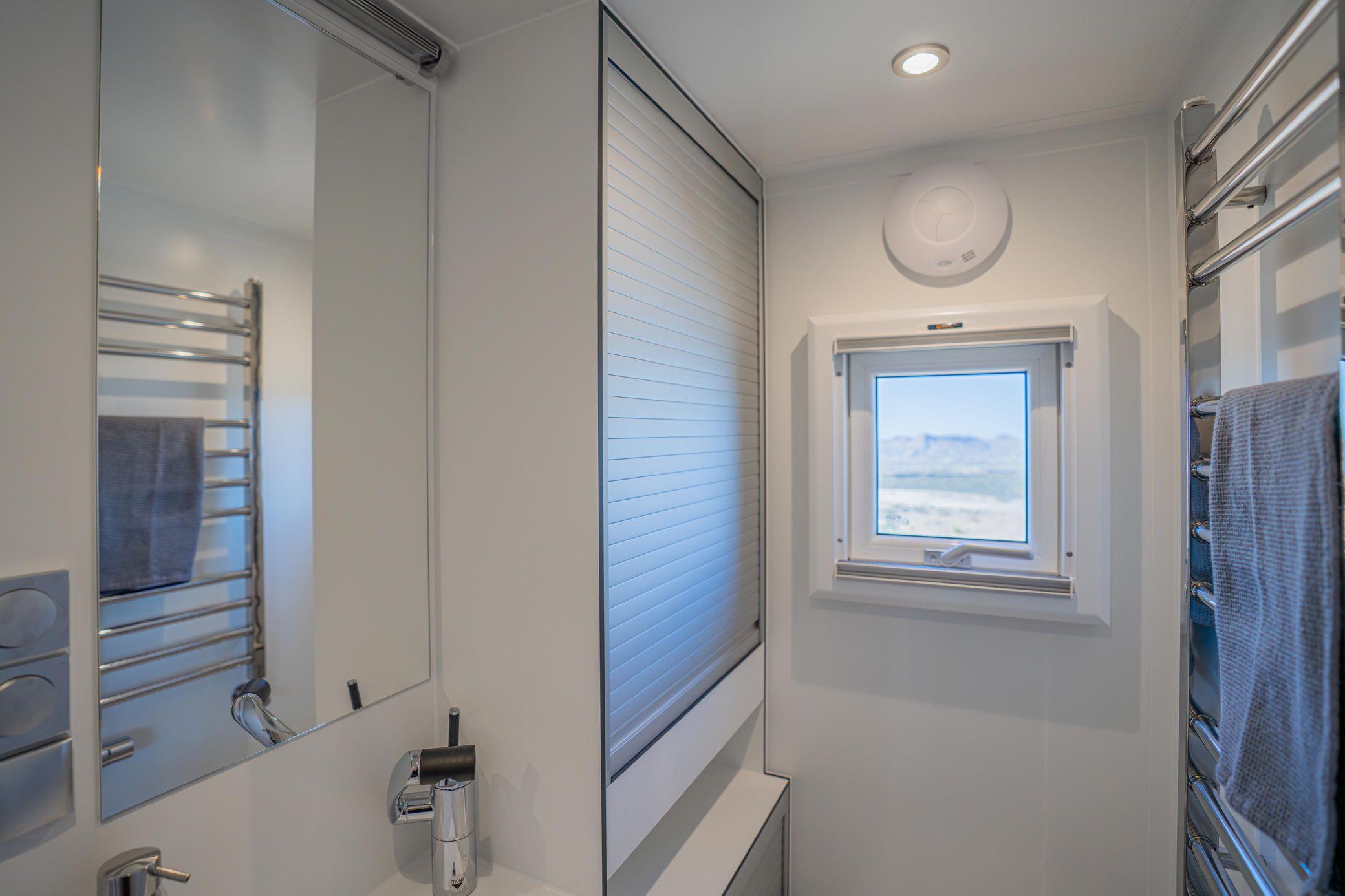

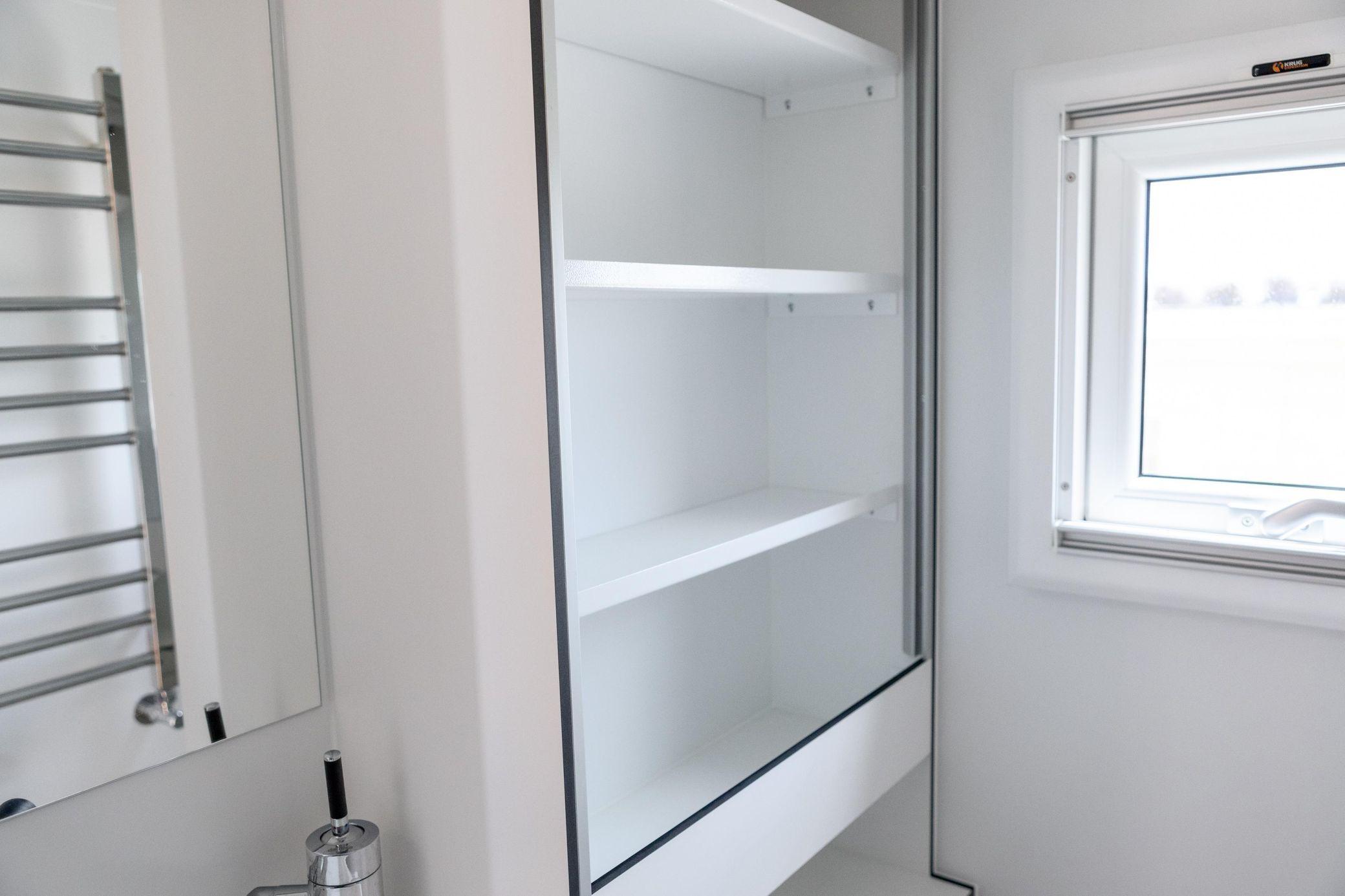

Bathroom
- Enclosed bathroom
- Indoor shower
- Separett Tiny dry separation toilet
- Bathroom window
