2020 GXV Patagonia 6x6
$850,000
Year
2020Make
GXVModel
PatagoniaOdometer
15,500Engine
Cummins L9Fuel Type
dieselTransmission
automaticDrivetrain
6×6VIN / Chassis #
Upon RequestSeller
private partyLocation
Olympia, WATitle Status
cleanKenworth K370 • Cummins 9L • 425 HP / 1,250 LB-FT • Allison 3000 • Locking 6x6
Approx. 15,500 Total Miles • Approx. 4,500 Miles on Upgraded Powertrain

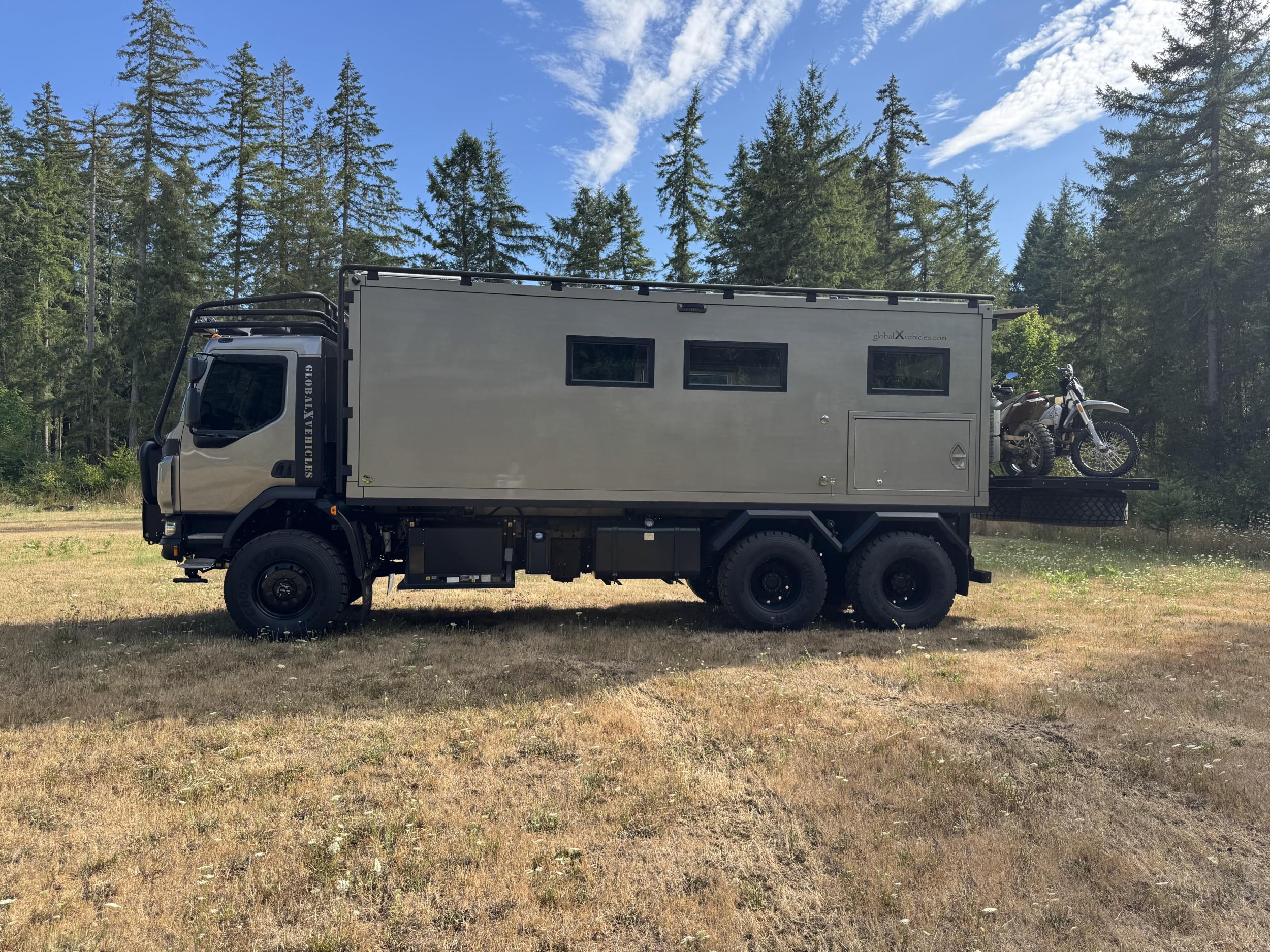

Offered for sale is an exceptionally unique 2020 Global Expedition Vehicles Patagonia, combining GXV’s premium composite expedition habitat with an extensively upgraded 6x6 chassis and powertrain
This is not a standard GXV build. The original expedition platform underwent an extensive second-stage mechanical build that dramatically increased power, torque, traction and drivetrain capability.
Originally built as a 4x4 with a 260 HP / 660 lb-ft powertrain and Allison 2000-series transmission, this Patagonia subsequently underwent a major mechanical transformation. It now features a 425 HP Cummins 9-liter diesel, Allison 3000-series transmission, substantially upgraded transfer case, locking 6x6 drivetrain, upgraded cooling system, and custom rear motorcycle/twin-spare lift.
CHASSIS & POWERTRAIN
- 2020 Kenworth K370 cabover
- Professional 4x4-to-6x6 conversion completed in 2024
- Ability to lock all four rear wheels completed in 2024
- Selectable front-wheel engagement
- Cummins 9L turbo diesel — 425 HP / 1,250 lb-ft -completed in 2024
- Upgraded from original Paccar 6.7L PX-7
- Allison 3000-series automatic transmission completed in 2024
- Upgraded from original Allison 2000-series
- Substantially upgraded/larger transfer case completed in 2024
- Additional charge-air cooler completed in 2024
- Approx. 4,500 miles on upgraded powertrain/drivetrain
- Approx. 15,500 total vehicle miles
- 194" wheelbase

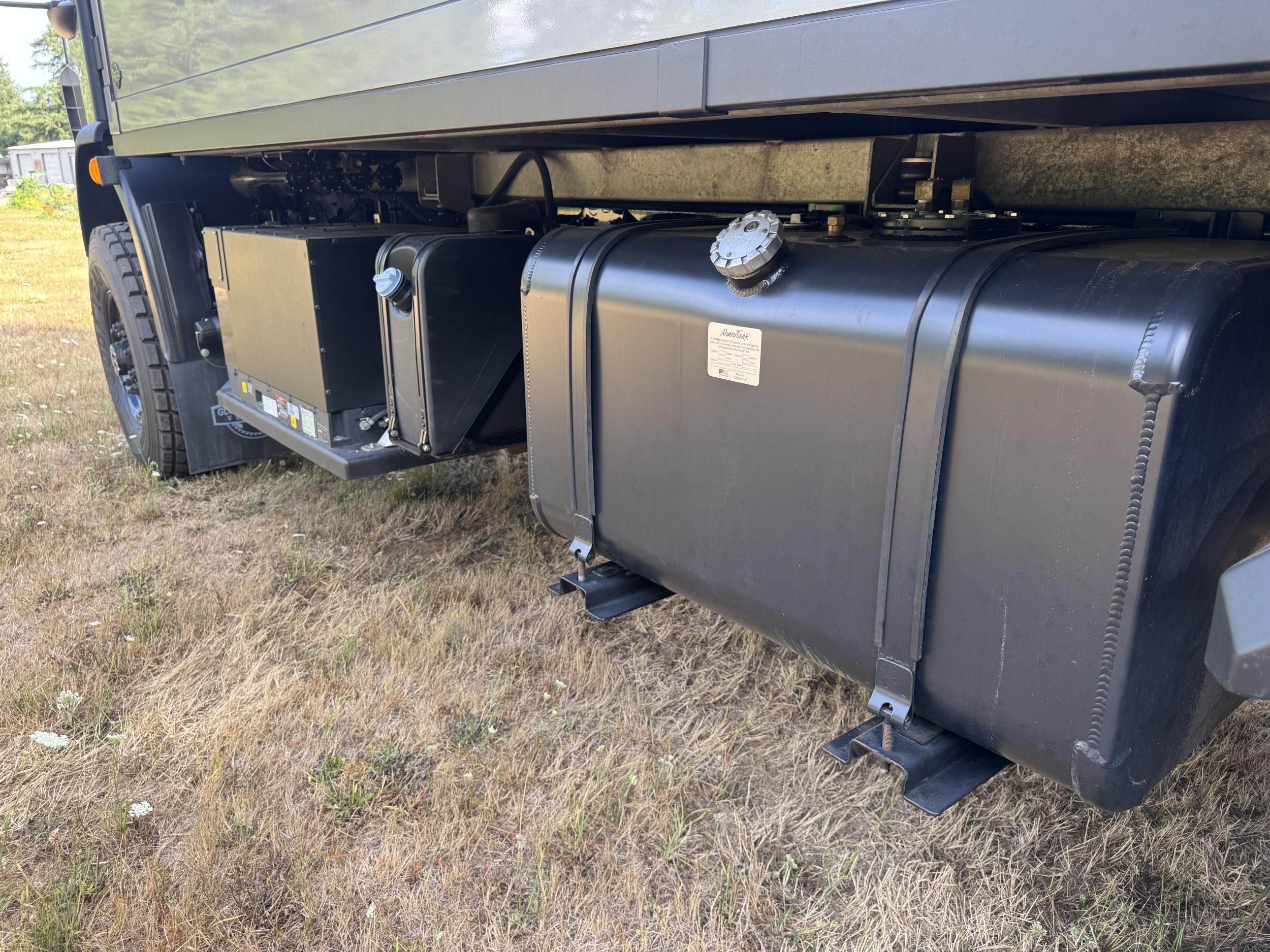

- Dual 100-gallon fuel tanks
- Kenworth front air suspension
- Custom-valved King front/rear shocks
- Alcoa aluminum wheels

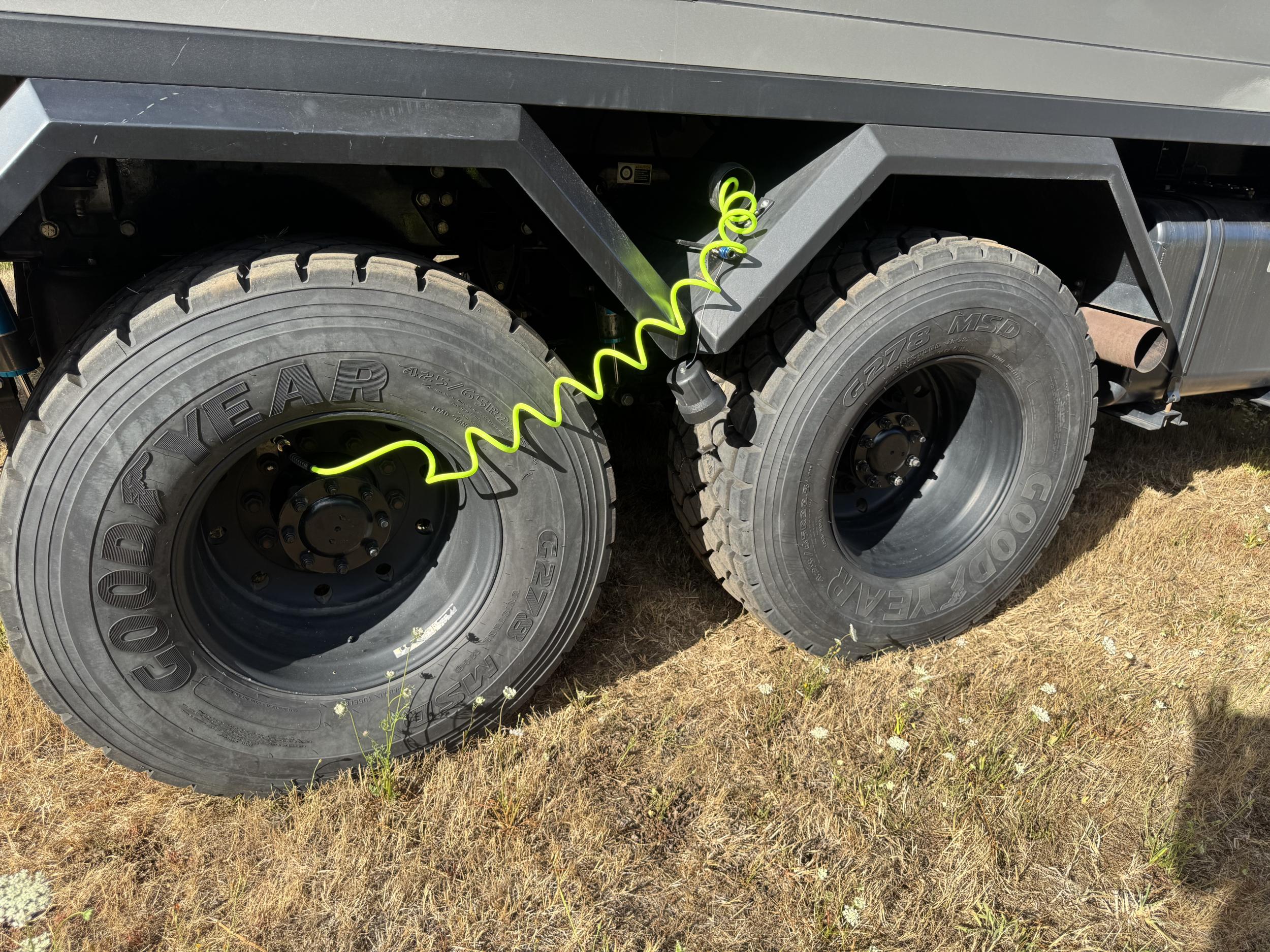

- Goodyear G278 MSD 425/65R22.5 tires
- Heavy-duty front bumper and brush guard
- Superwinch Talon 18K synthetic-line winch
- Baja exterior lighting
- FLIR Pathfinder infrared night vision
- Garmin navigation/backup camera
- Knoedler leather air-ride seats with heat and massage
REAR MOTORCYCLE & SPARE-TIRE LIFT

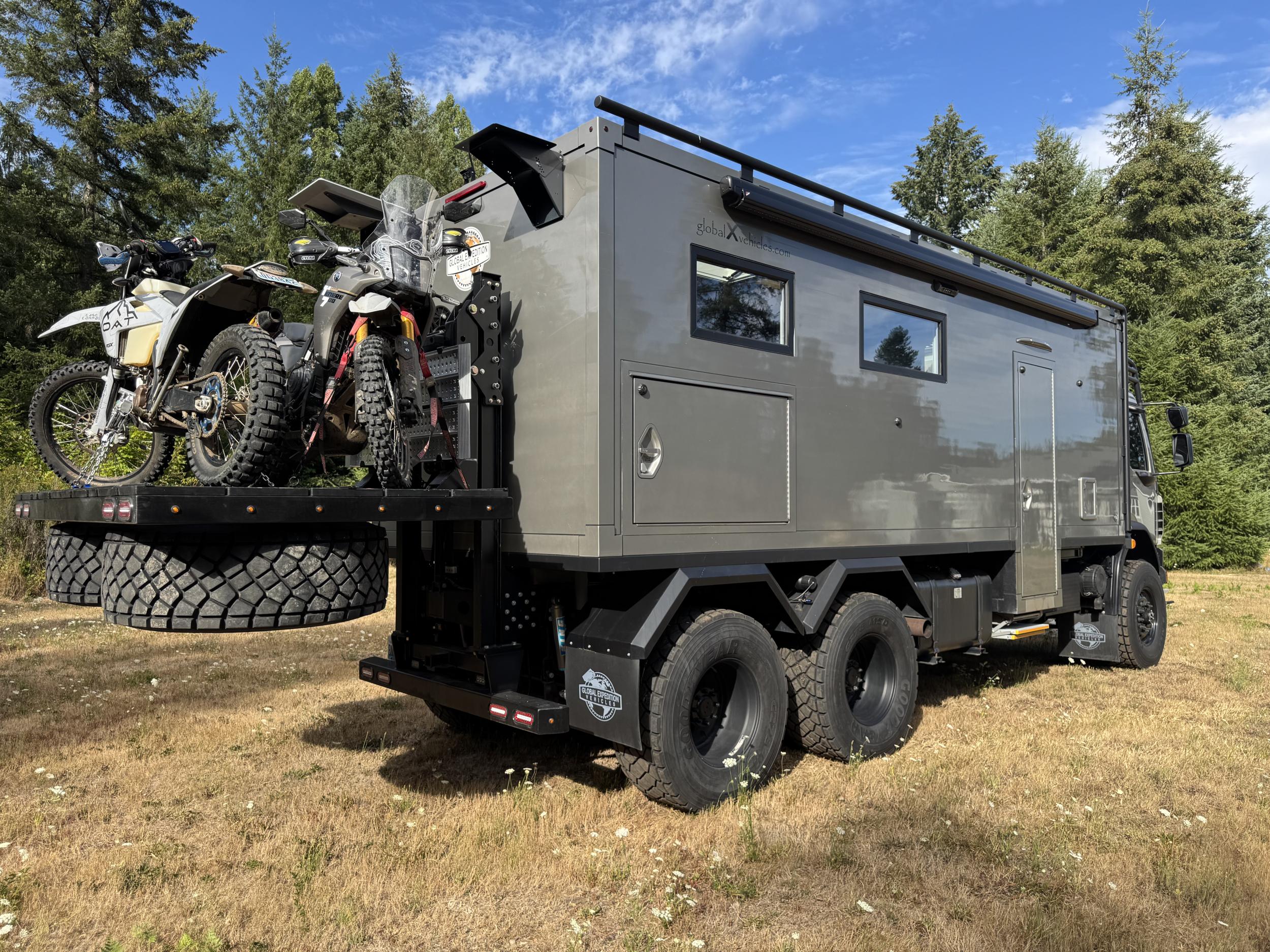

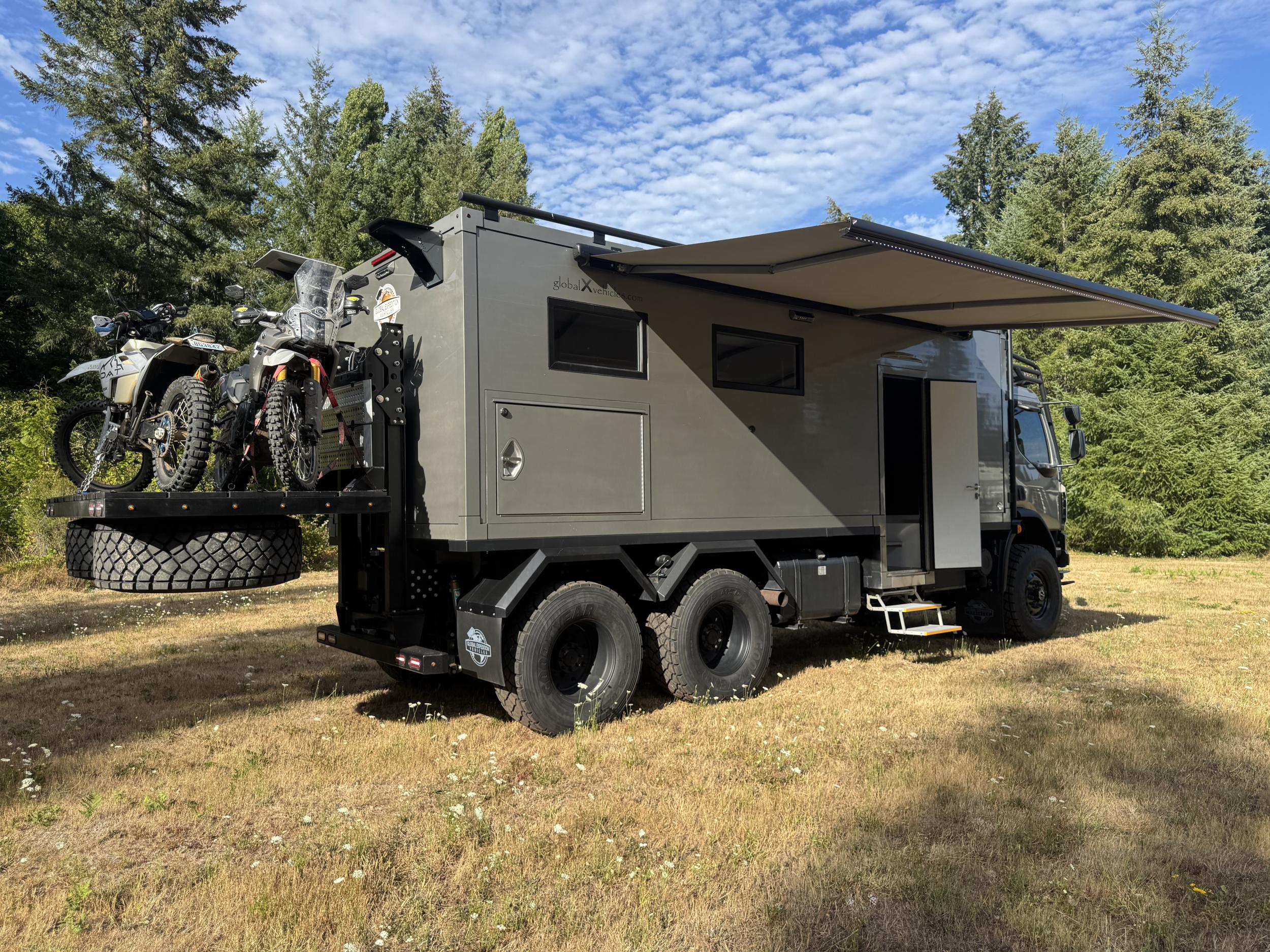

Custom heavy-duty rear motorcycle/cargo lift added after the original GXV build. Designed to carry a motorcycle/cargo while also accommodating two full-size spare tires. Completed in late 2025
GXV PATAGONIA HABITAT
- Approx. 22-foot GXV Patagonia composite habitat
- Structural composite sandwich-panel construction
- Approx. 6'7" interior ceiling height
- 60mm structural walls / 85mm roof
- Cab-to-cabin pass-through
- Three-point locking entry door
- Electric aluminum entry step

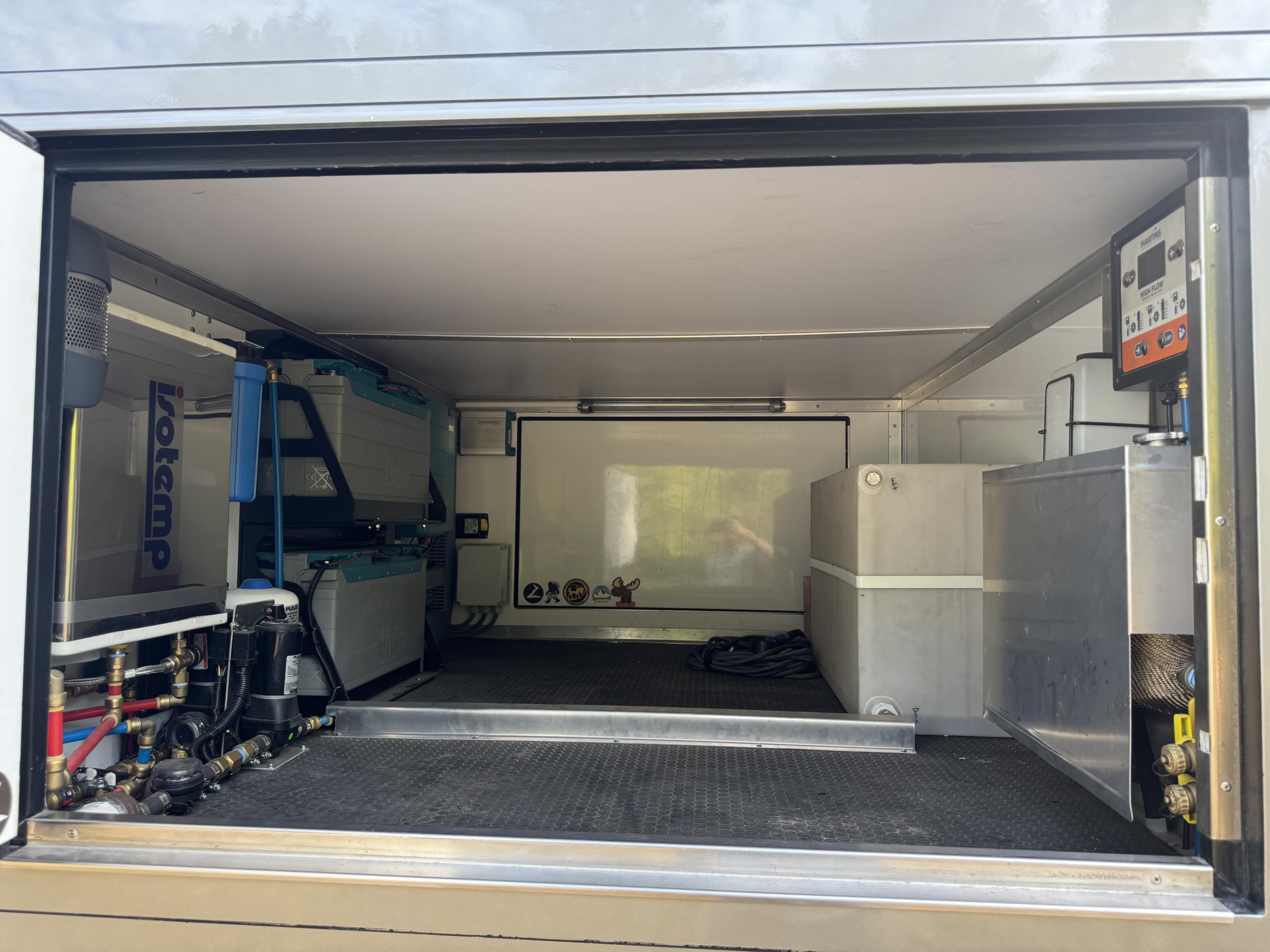

- Large exterior storage compartments
- Electric awning
- Roof protection rails
- Armor Vision dual-pane glass windows
- Integrated blinds and insect screens
- Multiple Armor Vision skylights
OFF-GRID ELECTRICAL

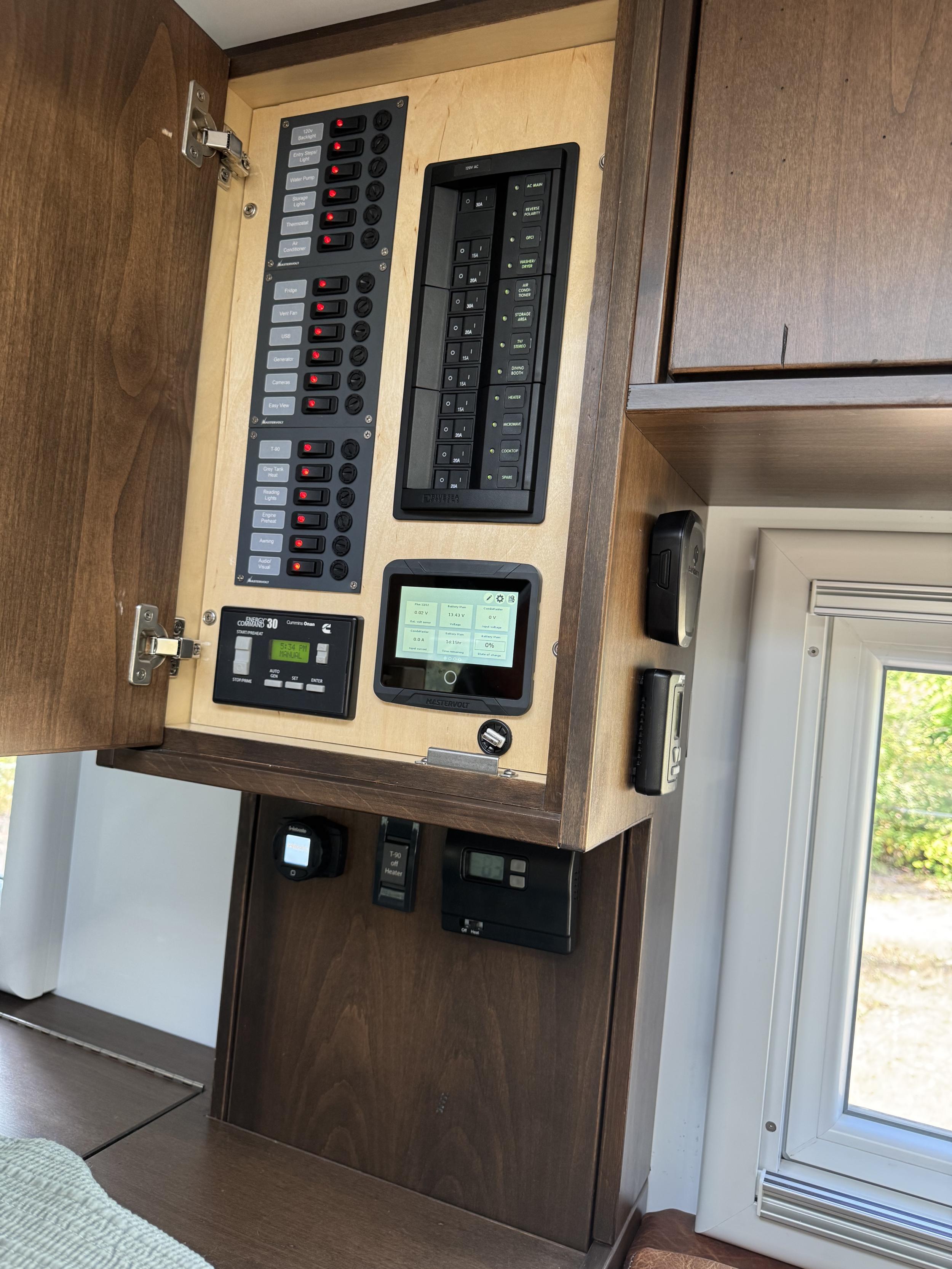

- Mastervolt electrical system with EasyView monitoring
- 800Ah Mastervolt lithium battery bank
- Mastervolt 4,000W inverter/charger
- Mastervolt MPPT solar controller
- 1,000 watts of solar
- Onan QD3200 diesel generator
- 12V and 120V systems
- Shore-power connection
- Marine-grade wiring and sealed connectors
- LED interior/exterior lighting
- Numerous 120V and USB outlets
HEATING & CLIMATE
- Webasto Thermo Pro 90 diesel hydronic system
- Approx. 6,100–26,000 BTU variable output
- Forced-air cabin heating
- Domestic hot water
- Engine coolant preheating
- Hydronic heated towel bar/shower heater
- Engine-compartment heater
- Electrically heated floors
- Rooftop air conditioning
- High-velocity temperature/rain-sensing ventilation fans

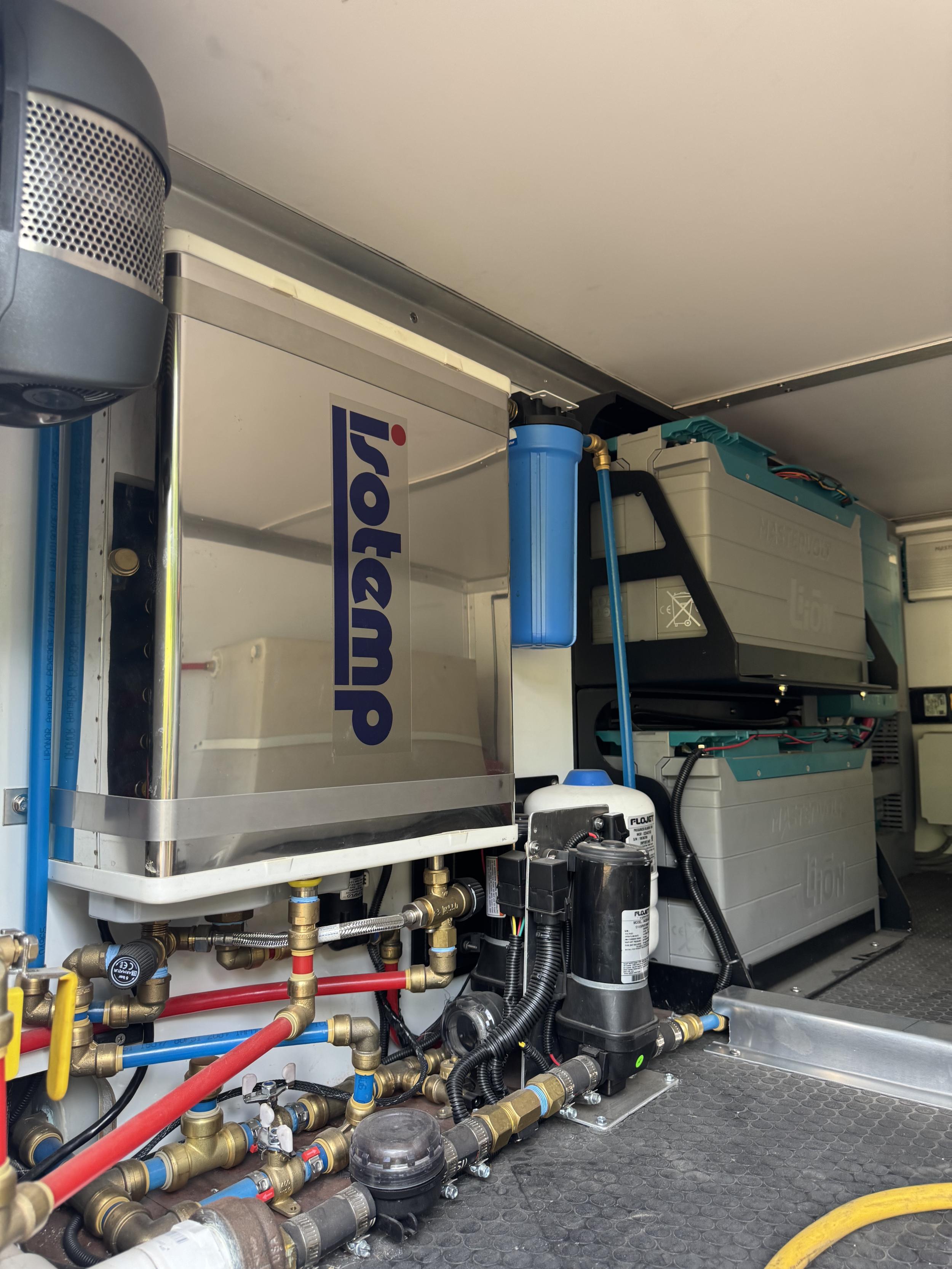

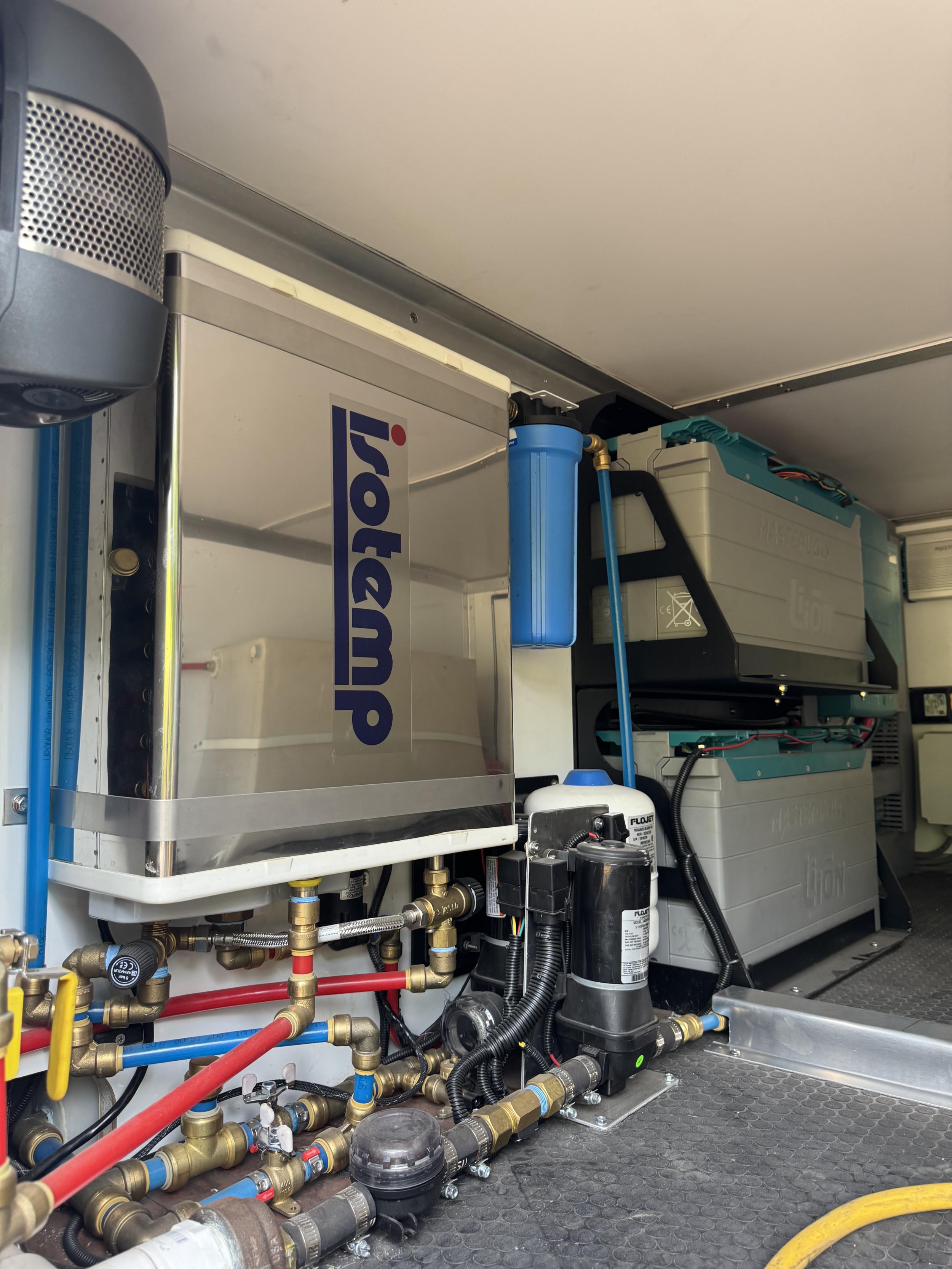

WATER & PLUMBING
- 135-gallon fresh-water capacity
- 28-gallon thermally protected gray-water tank
- 4.5-GPM variable-speed water pump
- PEX plumbing within conditioned cabin
- Seagull IV drinking-water filtration

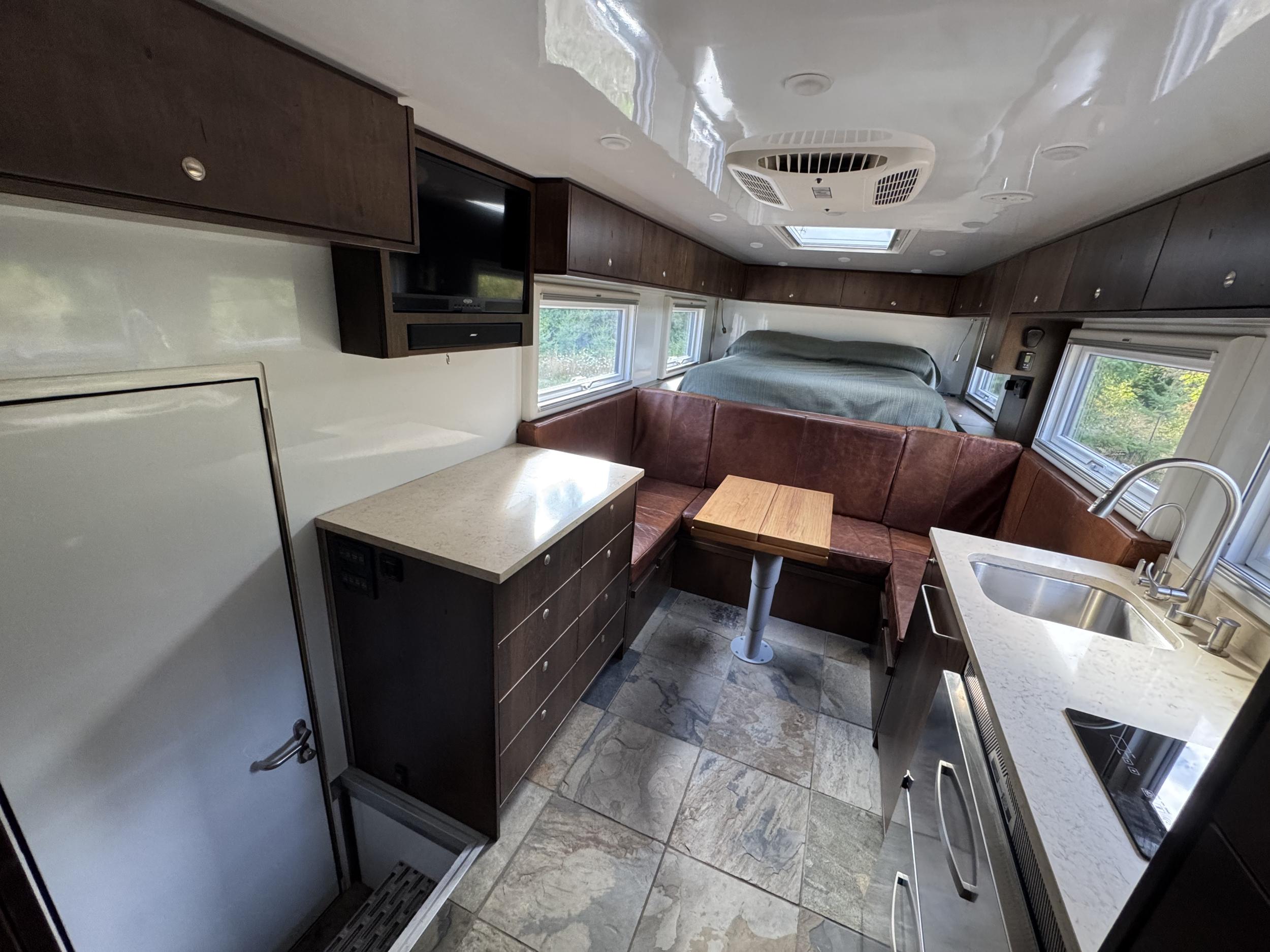

KITCHEN & LIVING
- Approx. 72" galley
- Stainless sink
- Induction cooktop
- Vitrifrigo stainless two-drawer refrigerator/freezer
- Microwave/convection oven
- Solid-surface countertops
- Custom cabinetry

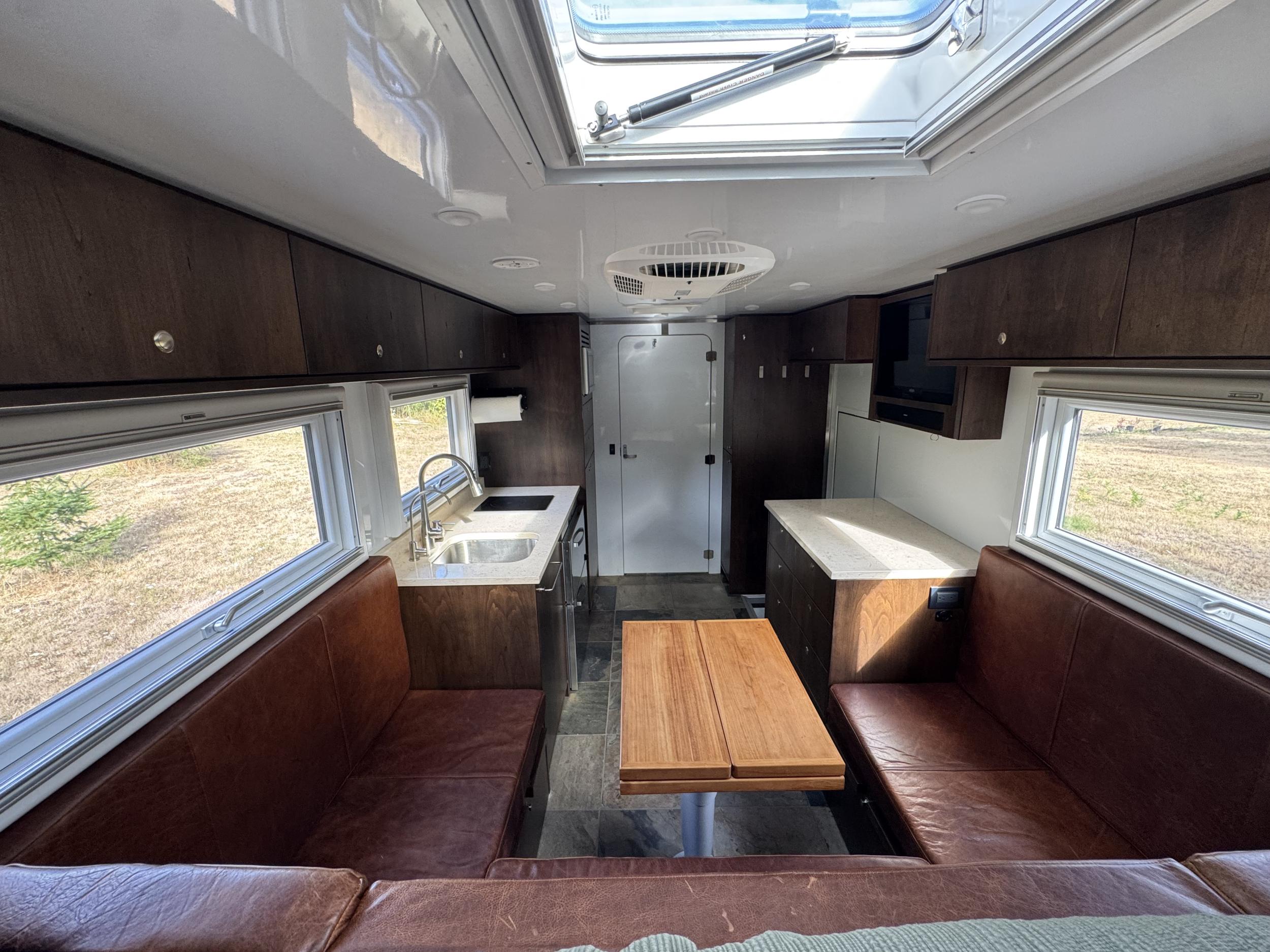

- Approx. 74" dining area
- Large booth with under-seat storage
- Adjustable/removable teak dining table
- Dining booth converts into additional sleeping space
BEDROOM & DRY BATH

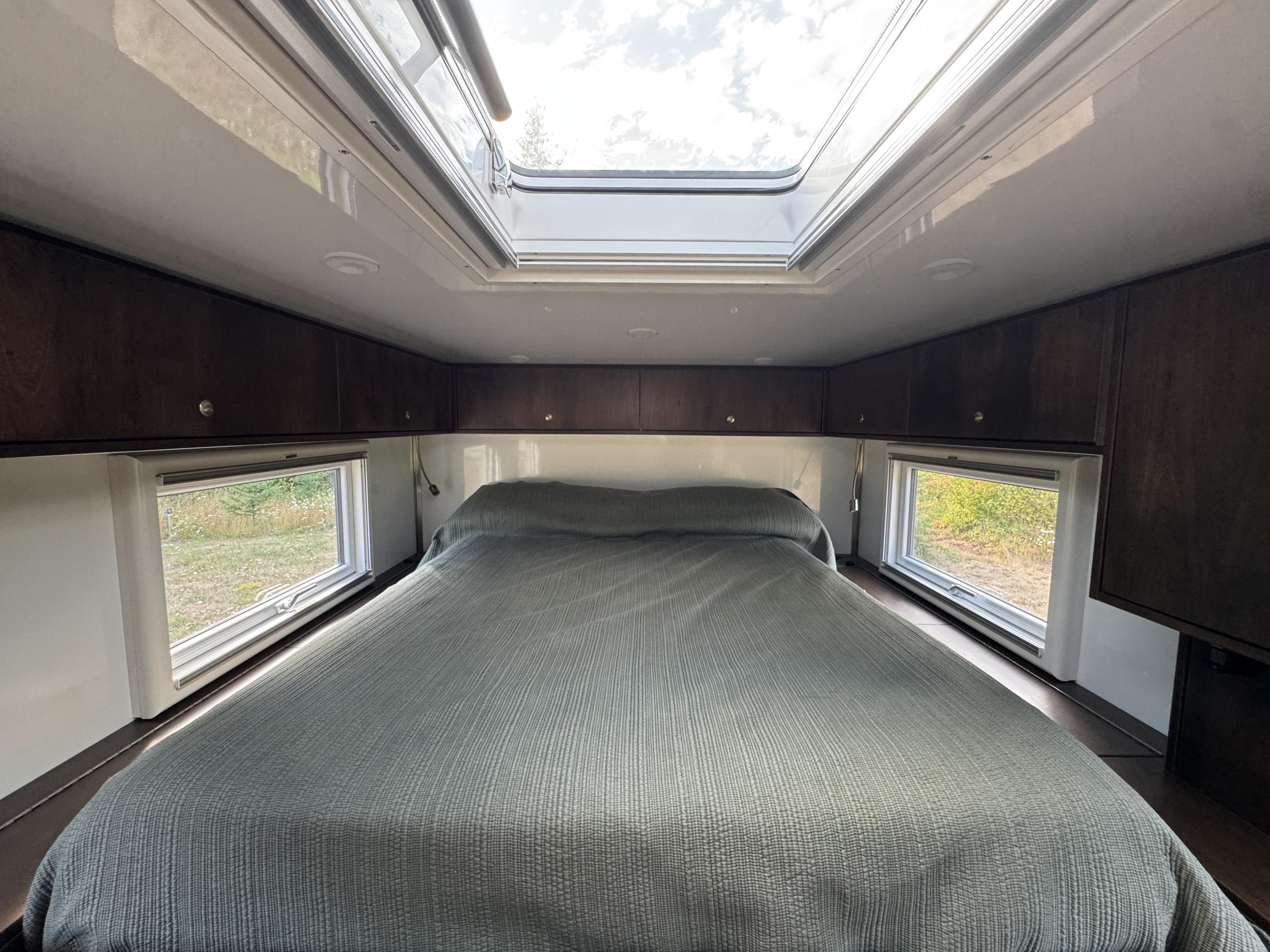

- Dedicated rear bedroom
- 60" x 80" queen bed
- North/south sleeping orientation
- Dual Armor Vision windows
- Bedside storage and charging
- Extensive overhead cabinetry
- Separate dry bath and shower
- Upgraded from standard Patagonia wet-bath configuration
- Thetford cassette toilet
- Stainless bathroom sink and vanity

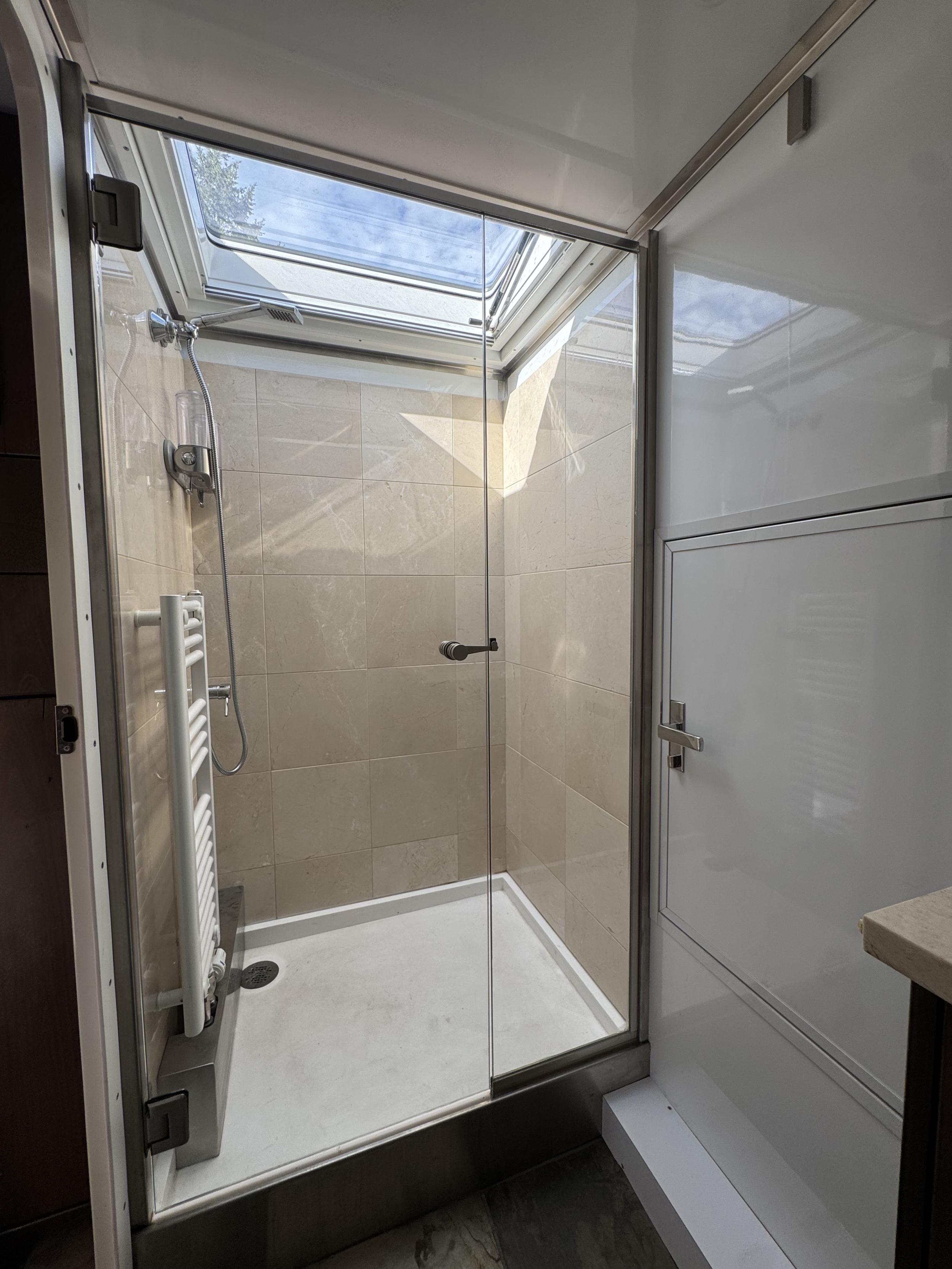

- Dedicated shower with adjustable showerhead
- Hydronic heated towel bar
- Armor Vision bath skylight
LAUNDRY & STORAGE

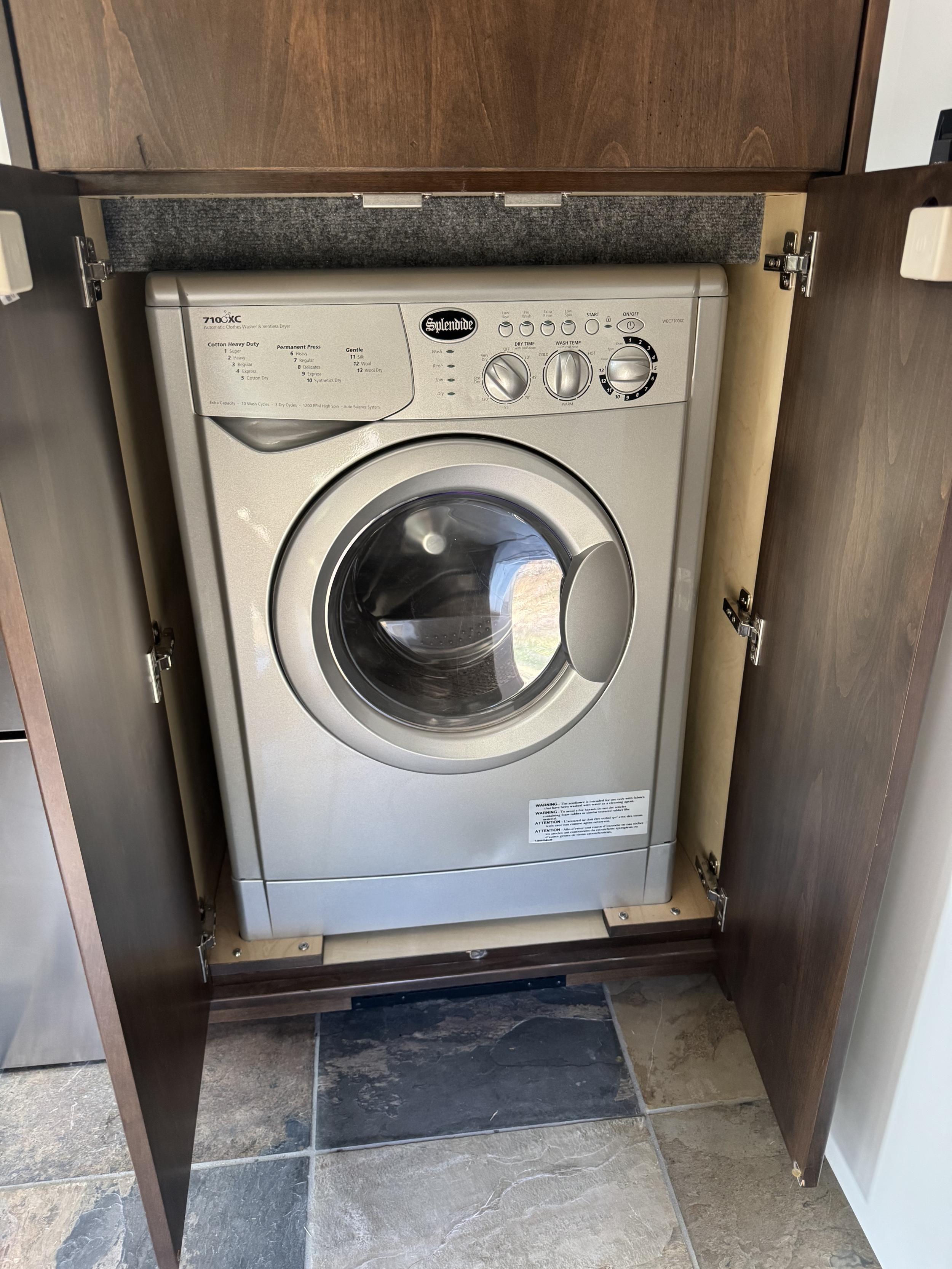

- Splendide combination washer/dryer
- Large wardrobe/dresser
- Extensive overhead cabinetry
- Multiple additional interior storage cabinets
- Large exterior storage compartments
TECHNOLOGY & SECURITY
- Starlink
- Three-camera security system with dedicated monitor
- FLIR infrared night vision
- Garmin navigation and backup camera
- 28" Jensen 12V television
- Bose sound bar
- Broadcast-TV antenna
