FEATURED

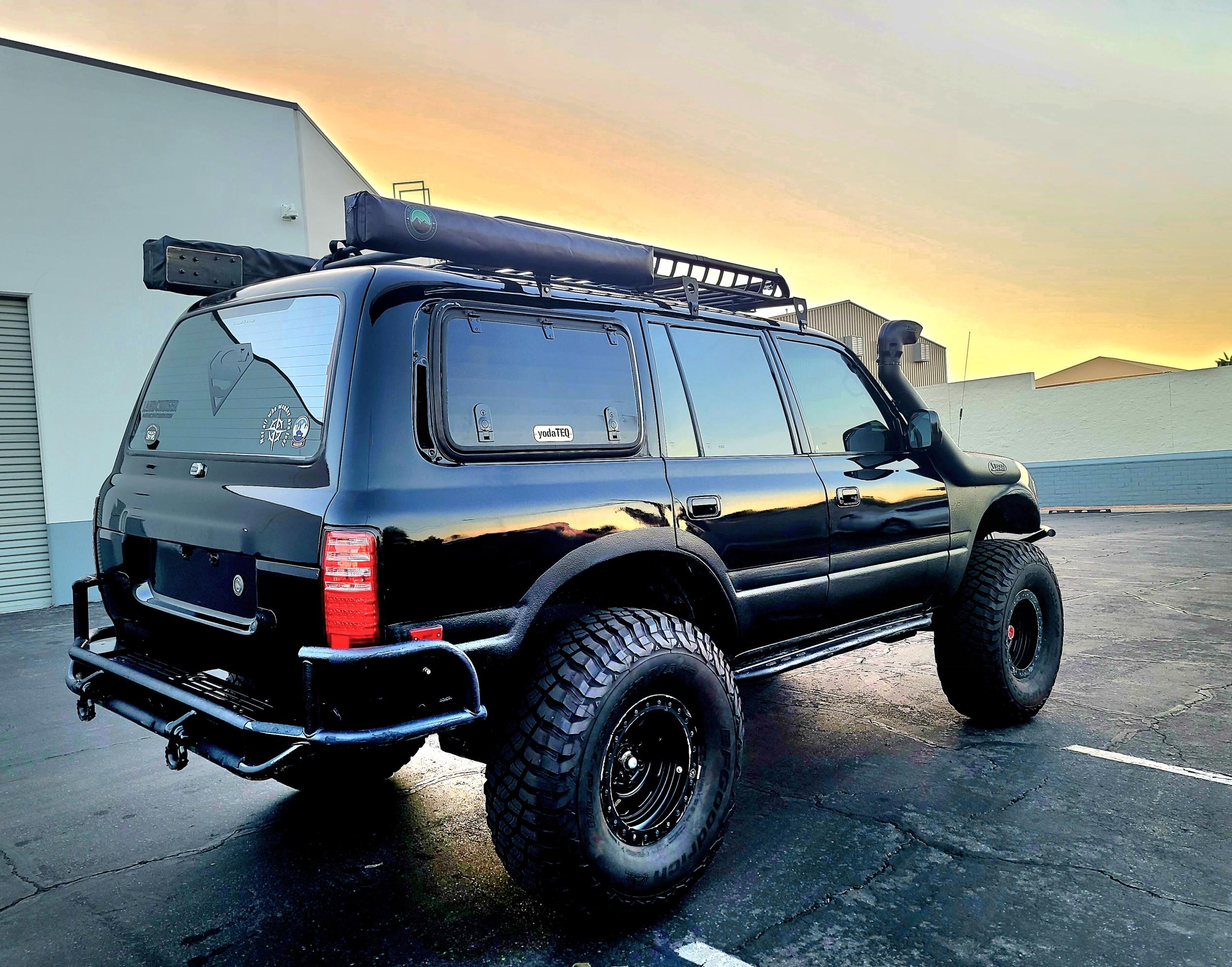

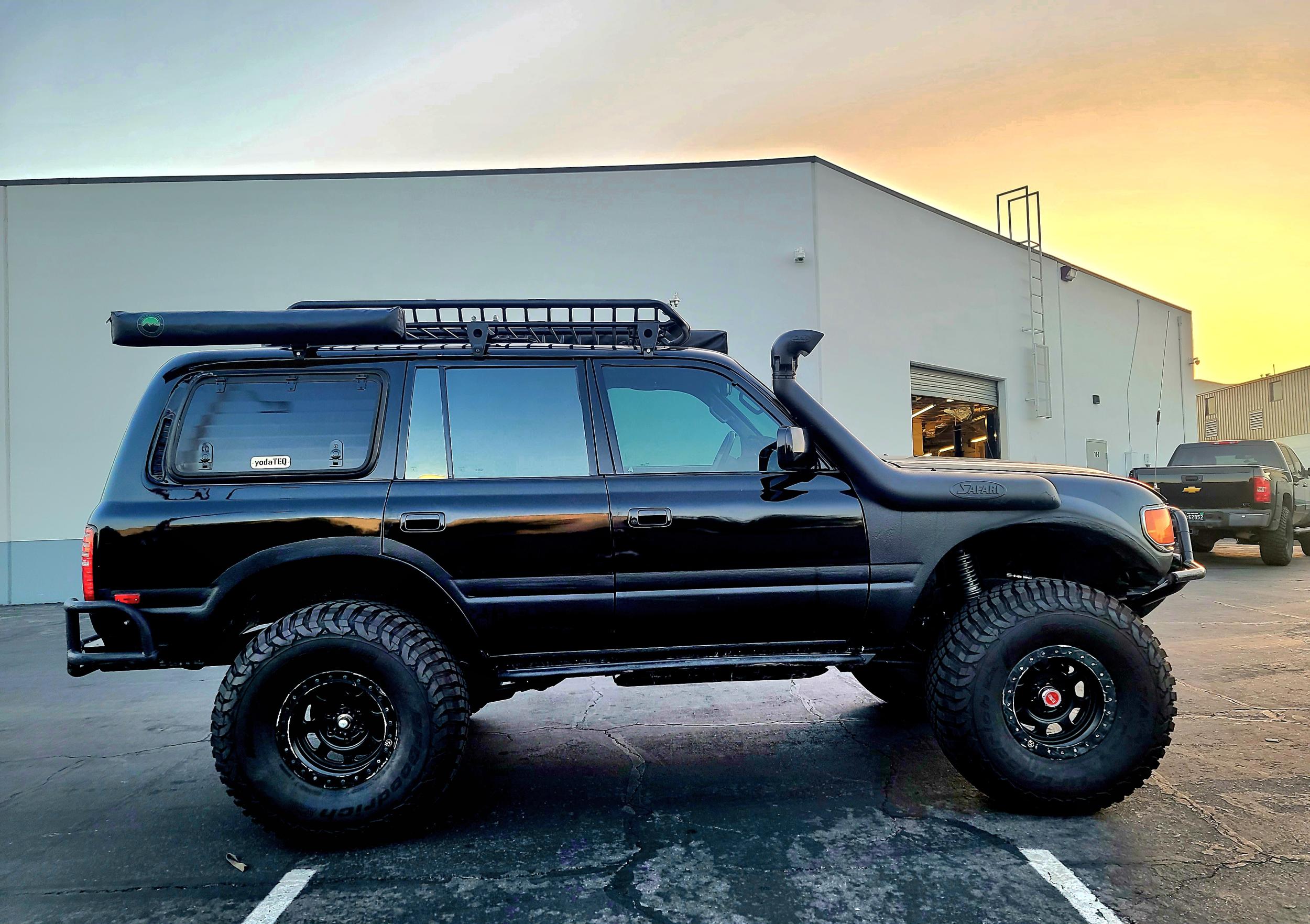

Overland-Built 1996 Toyota Land Cruiser

$60,000

Year

1996

Make

Toyota

Model

Land Cruiser

Odometer

300,000 (TMU)

Engine

4.5L 1FZ-FE I6

Fuel Type

gasoline

Transmission

automatic

Drivetrain

4×4

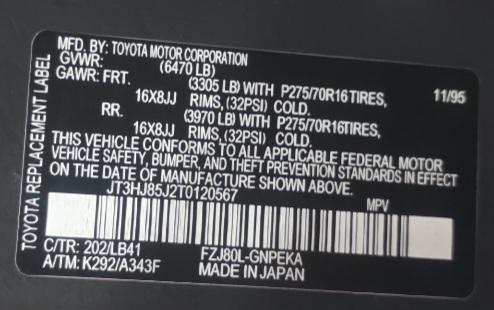

VIN / Chassis #

JT3HJ85J2T0120567

Seller

private party

Location

Las Vegas, NV

Title Status

clean
CARFAX Report

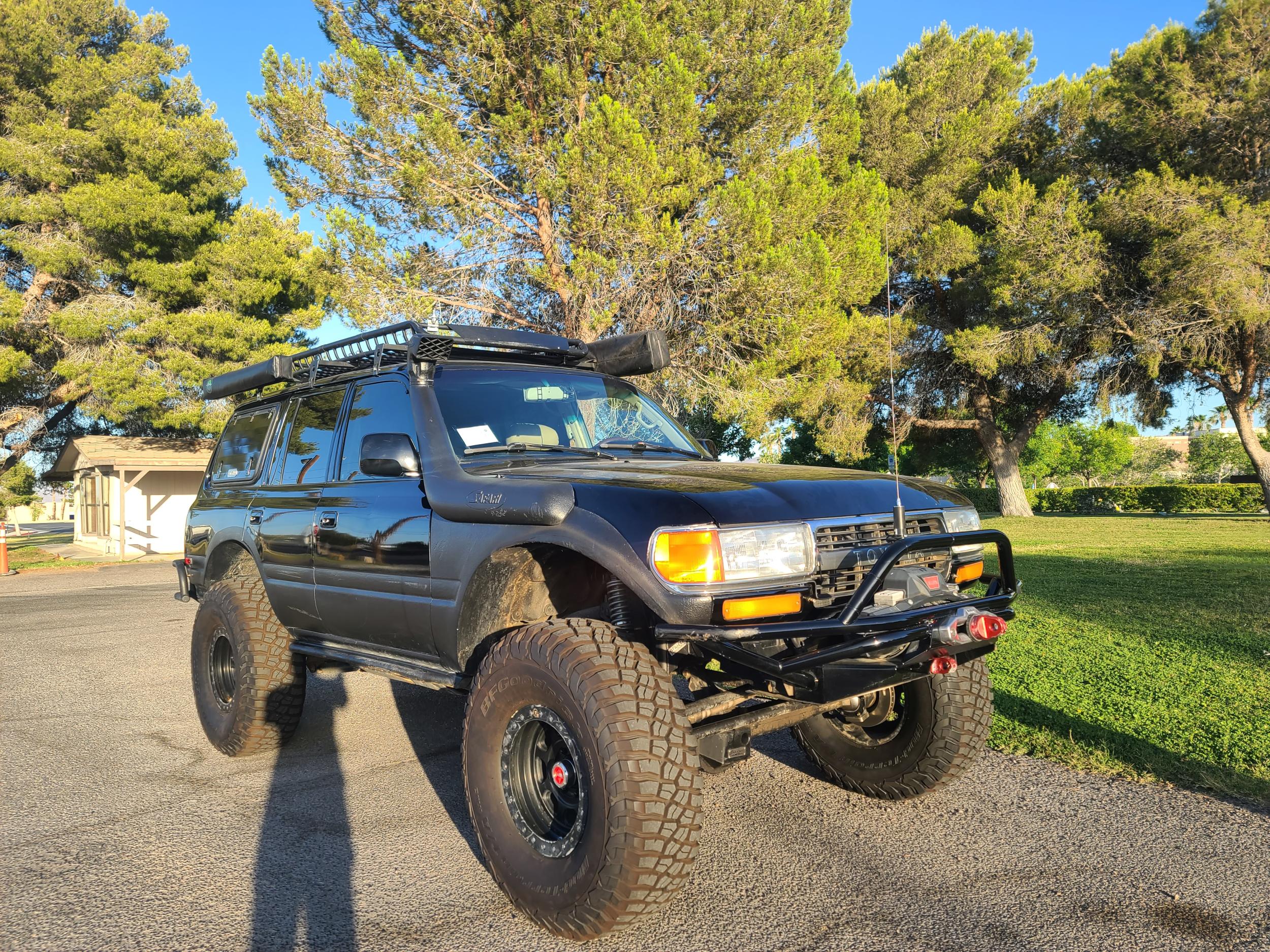

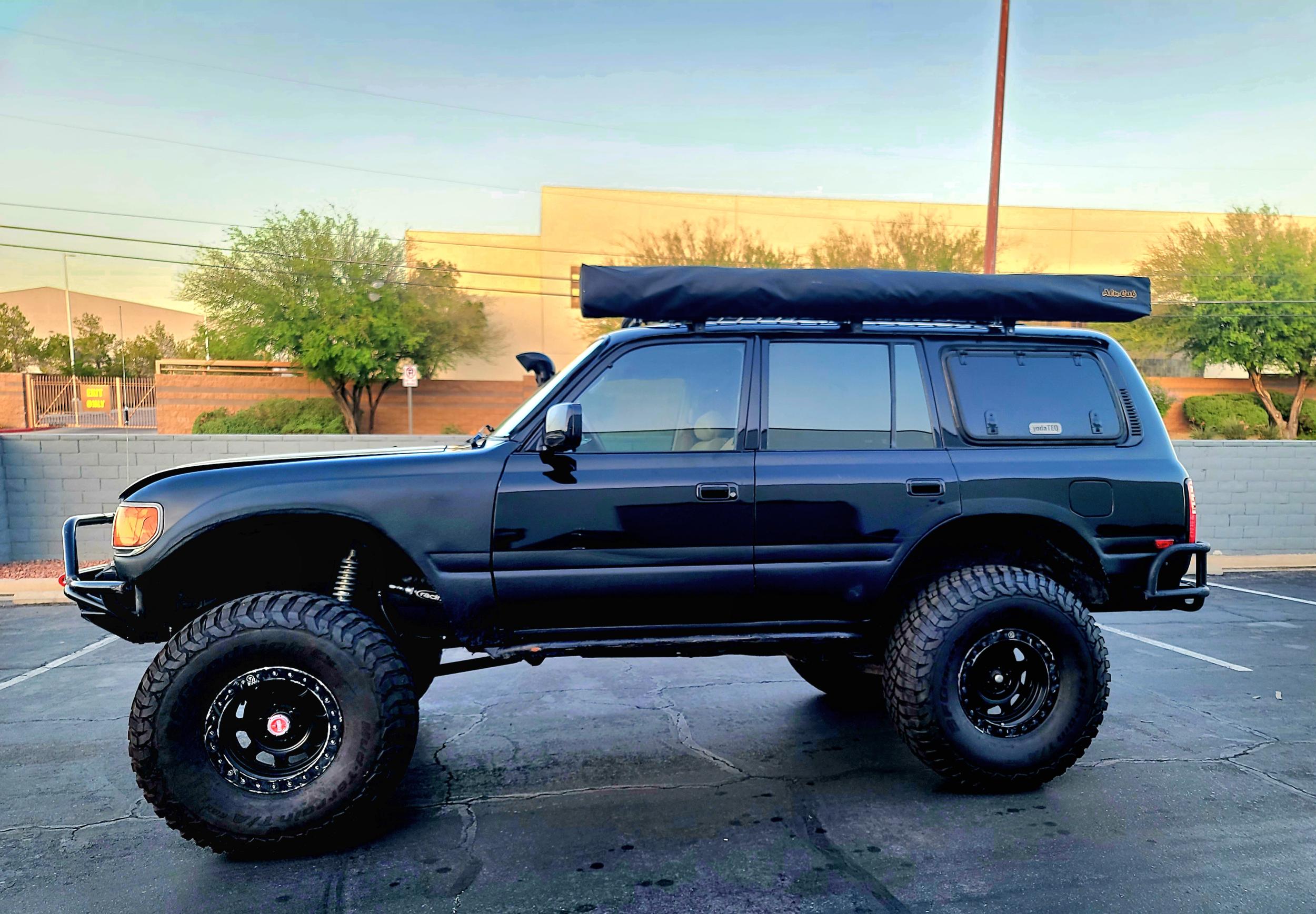

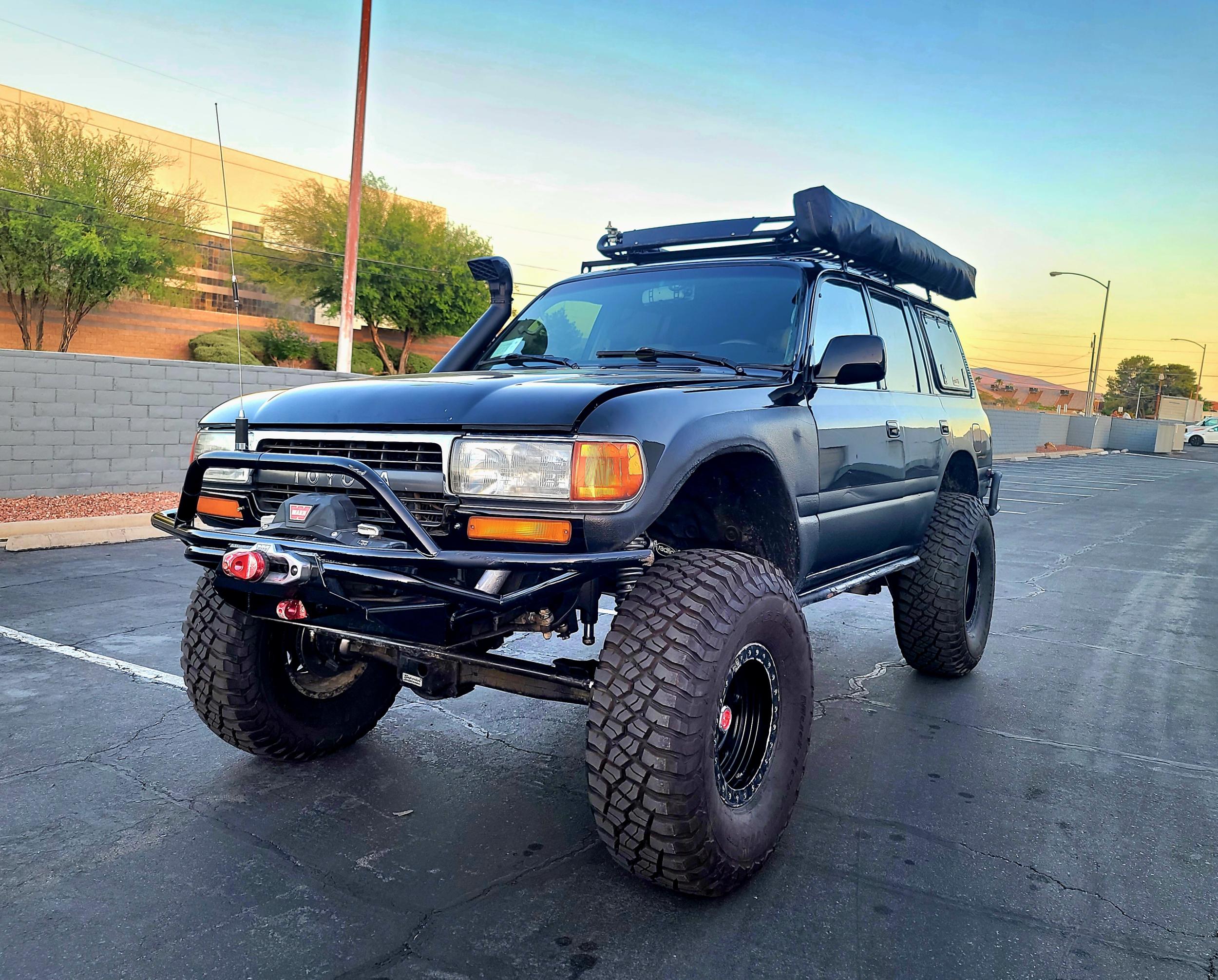

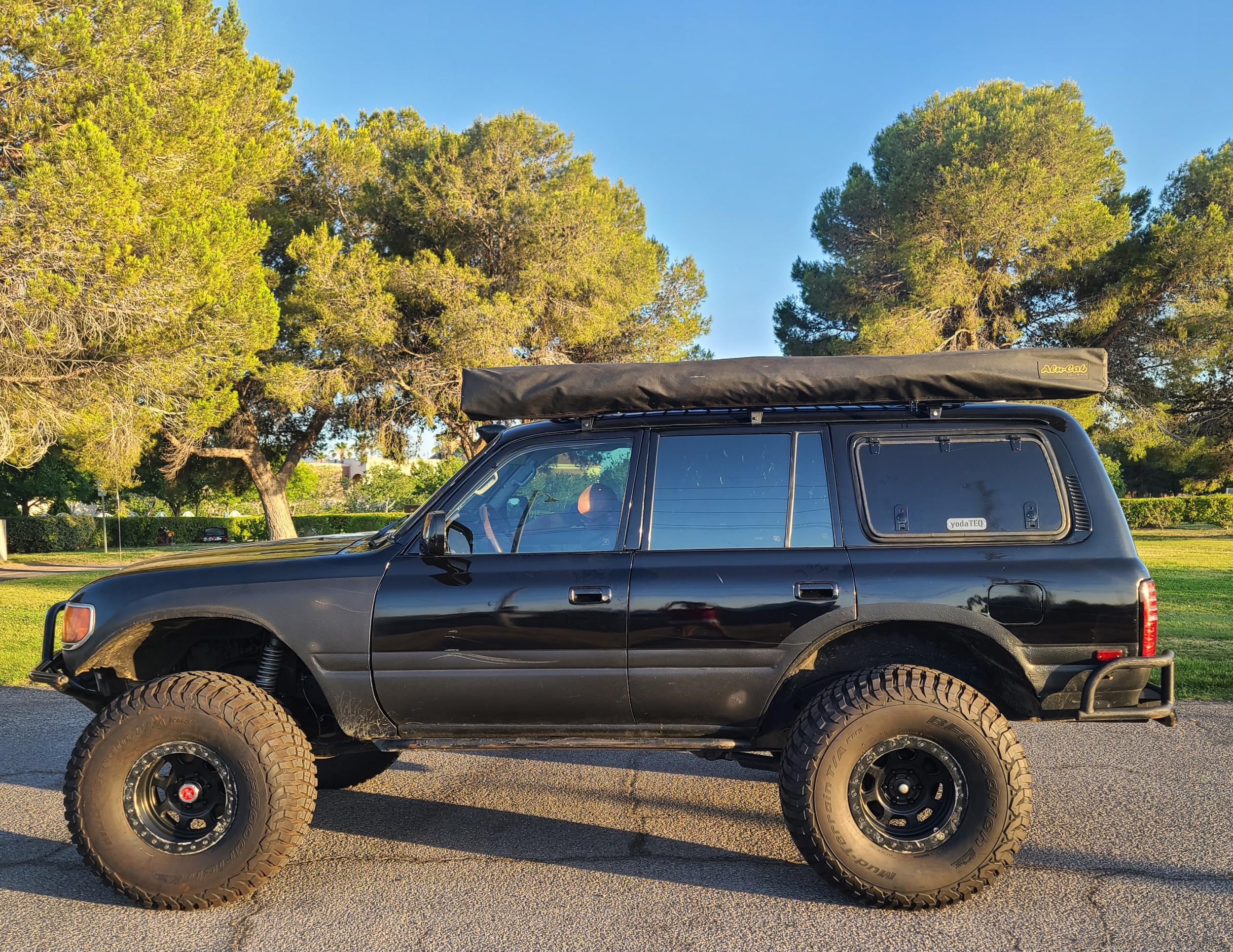

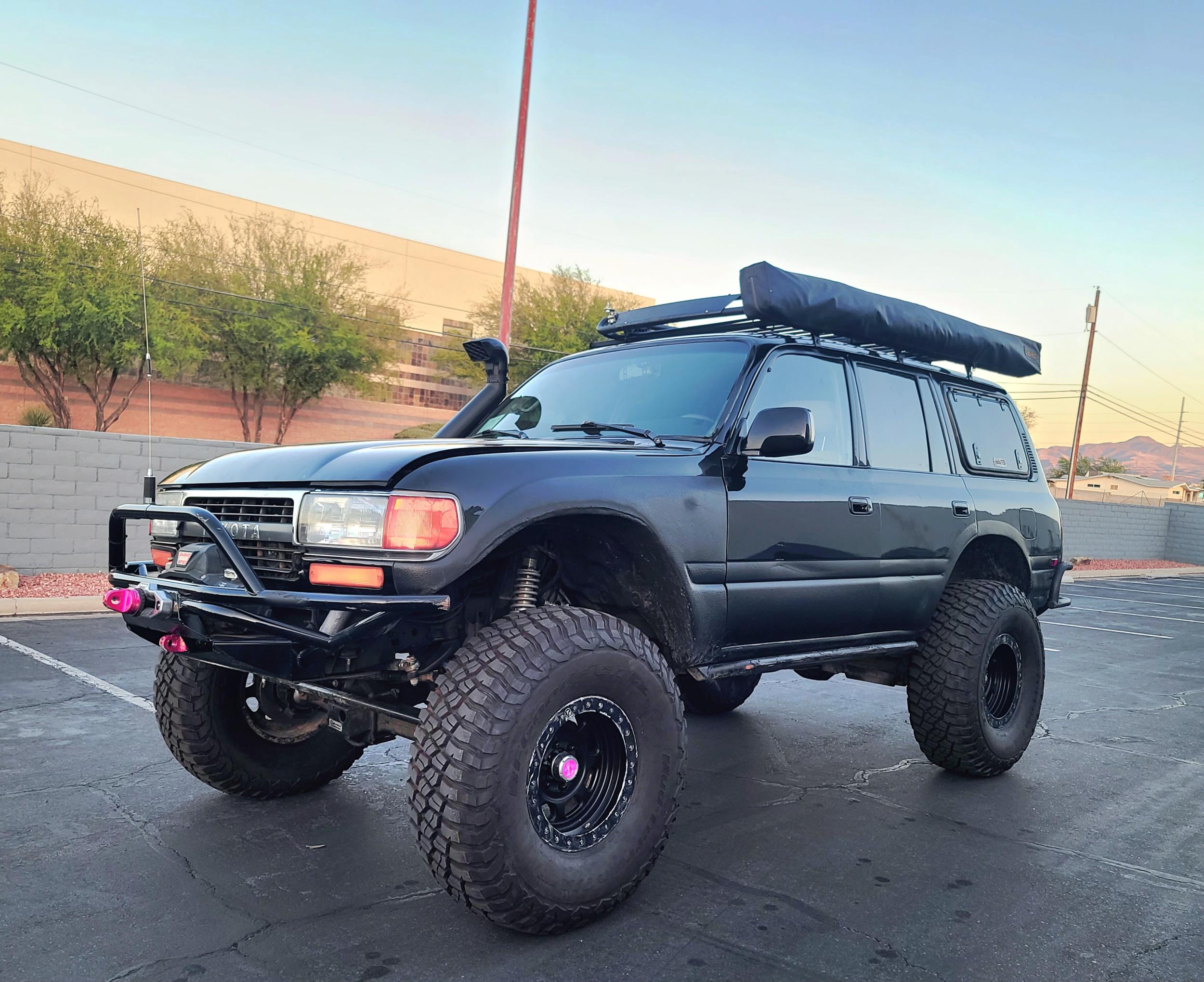

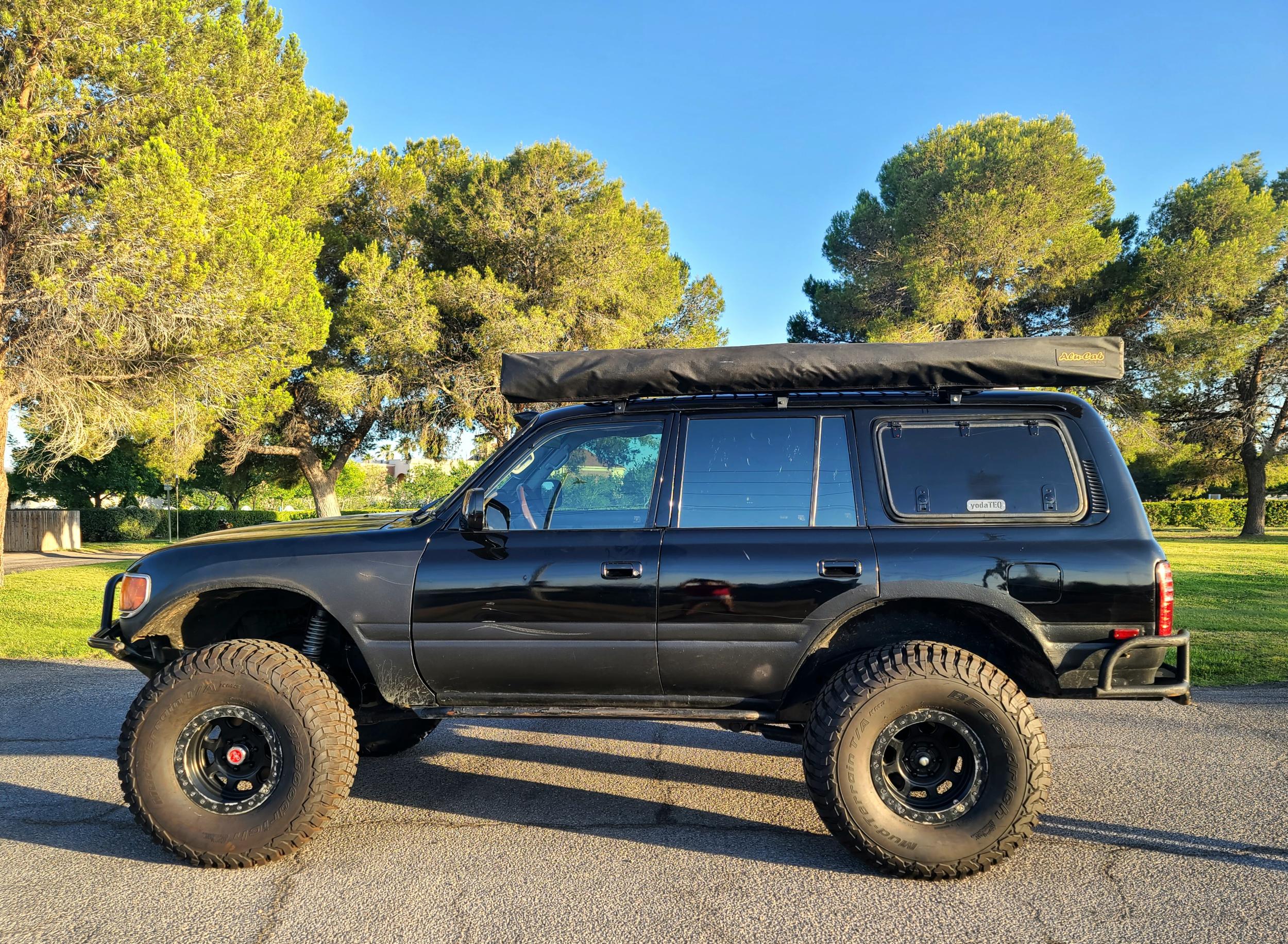

The 80 Series Land Cruiser has earned its reputation as one of Toyota’s most capable and durable 4x4 platforms, but this 1996 FJ80 has been built well beyond factory specification. Offered by a private seller in Las Vegas, Nevada, this is a purpose-built trail and overland rig with 5.29 gearing, ARB air lockers front and rear, a part-time 4WD conversion, 39-inch BFGoodrich KM3s on true beadlocks, long-travel suspension, RCV axles, armor, extended-range fuel capacity, and a long list of supporting mechanical upgrades.

The current owner has had the Land Cruiser for approximately five years and reports that the modifications have fewer than 5,000 miles of use. More importantly, this isn't an untested build: the seller has taken it through the Rubicon Trail, including the RTF loop, and reports completing the trip without mechanical issues or breakdowns.
  • Triple-Locked & Re-Geared: This FJ80 is equipped with ARB air lockers front and rear along with a locking center differential, while Nitro 5.29 gearing helps compensate for the substantially larger tires. The transfer case has been rebuilt with 10/25 gearing and converted to part-time four-wheel drive with locking front hubs. The seller reports that the combination was specifically chosen to retain stock-like road manners while providing considerably more torque both on the trail and during highway climbs.

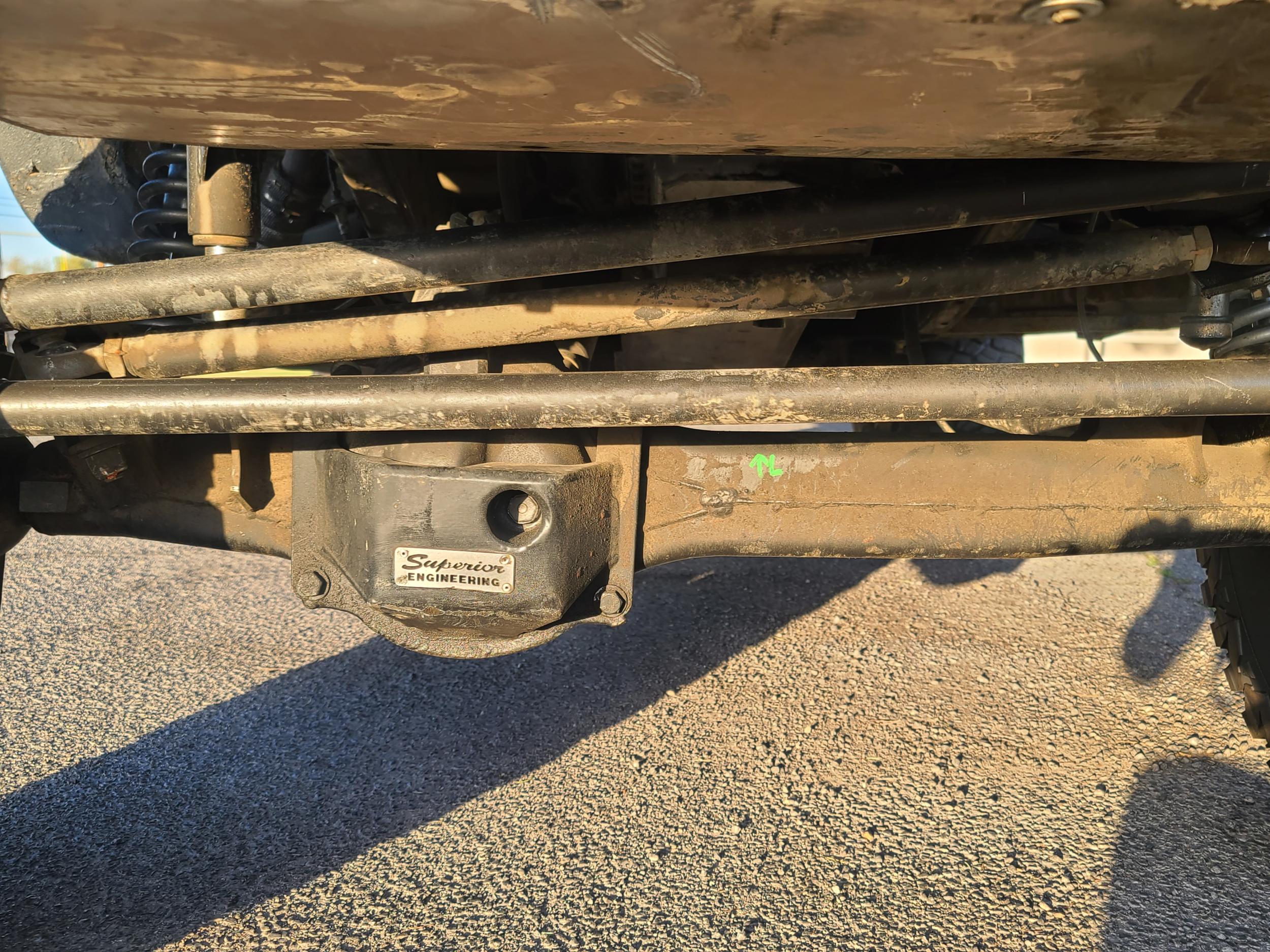

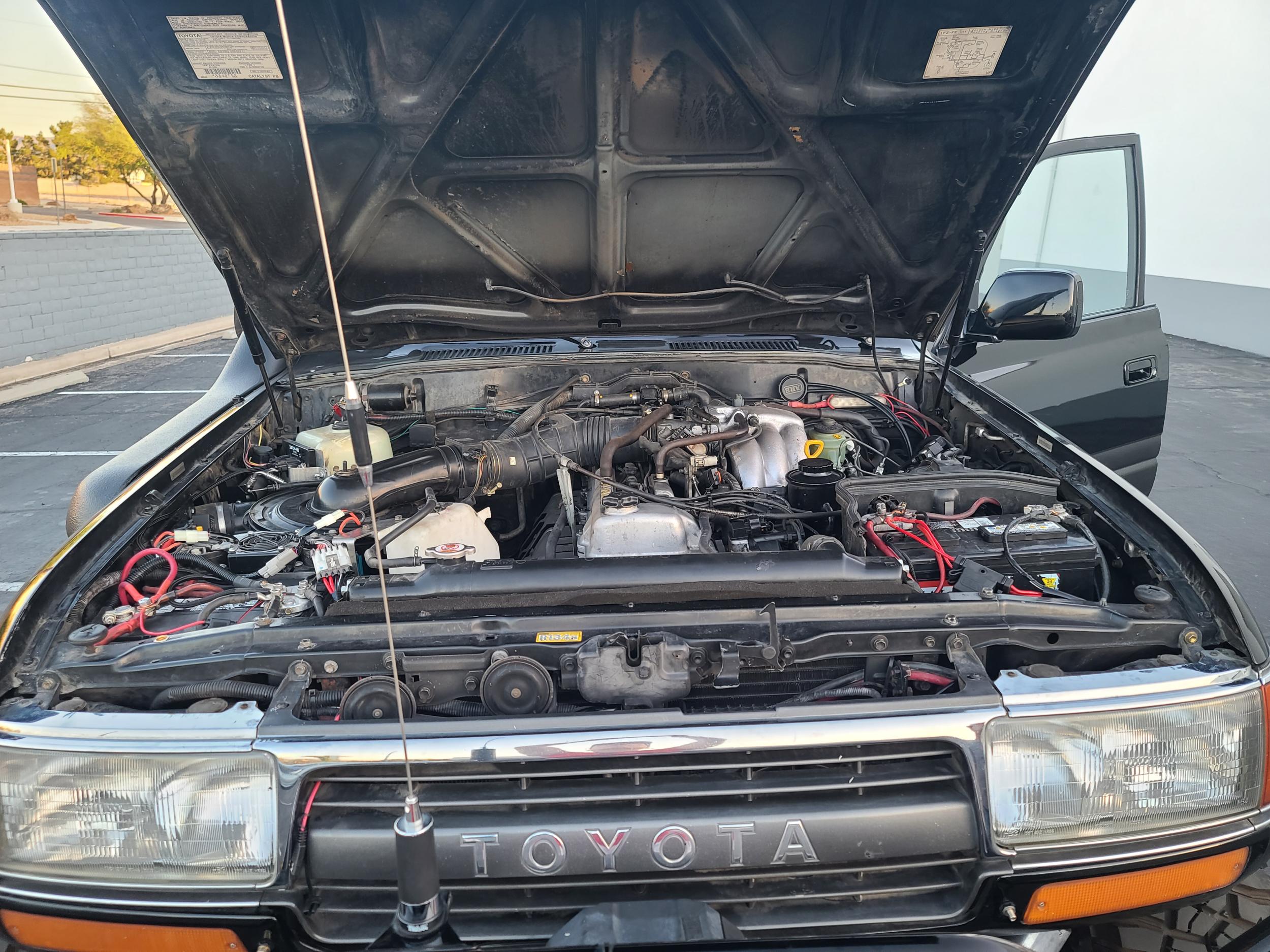

  • Built Drivetrain: The automatic transmission has been rebuilt and fitted with a Nomad valve body, while the front and rear driveline uses RCV Ultimate 30-spline 300M axle sets and replacement driveshafts. A dedicated transmission cooler with electric fan helps manage temperatures. The 4.5-liter 1FZ-FE inline-six has also received substantial recent work, including a rebuilt cylinder head with fewer than 5,000 miles, along with a new radiator, water pump, thermostat, cooling hoses, ignition components, alternator, starter, fuel pump, drive belts, and power-steering hoses.
  • Serious Suspension & Trail Hardware: Up front is a 4 Wheels Underground three-link suspension system paired with a Front Range high-steer setup, while the rear uses a five-inch lift with BP-51 components sourced through Slee Offroad and Dobinsons heavy-duty trailing arms. The Land Cruiser rides on new 39x13.50R17 BFGoodrich KM3 tires mounted to 17x8.5-inch TR HD17 true beadlock wheels. Trail-Gear Rock Defense bumpers, welded Rocky Road Outfitters Rock Crusher sliders, extensive skid plating, and a Warn ZEON 10-S winch with synthetic line and Factor 55 thimble round out the protection and recovery equipment.
  • 38-Gallon Tank & Onboard Air: A 38-gallon Long Range America main fuel tank extends the FJ80’s range for backcountry travel, while an ARB CKMTA12 twin compressor supplies onboard air for tire inflation, air tools, the air horn, and other pneumatic accessories. A separate ARB compressor operates the lockers, and a four-way tire inflation system allows all four tires to be aired up or down together. A dual-battery system and Switch-Pros SP9100 provide electrical support and centralized control for the truck's accessories.

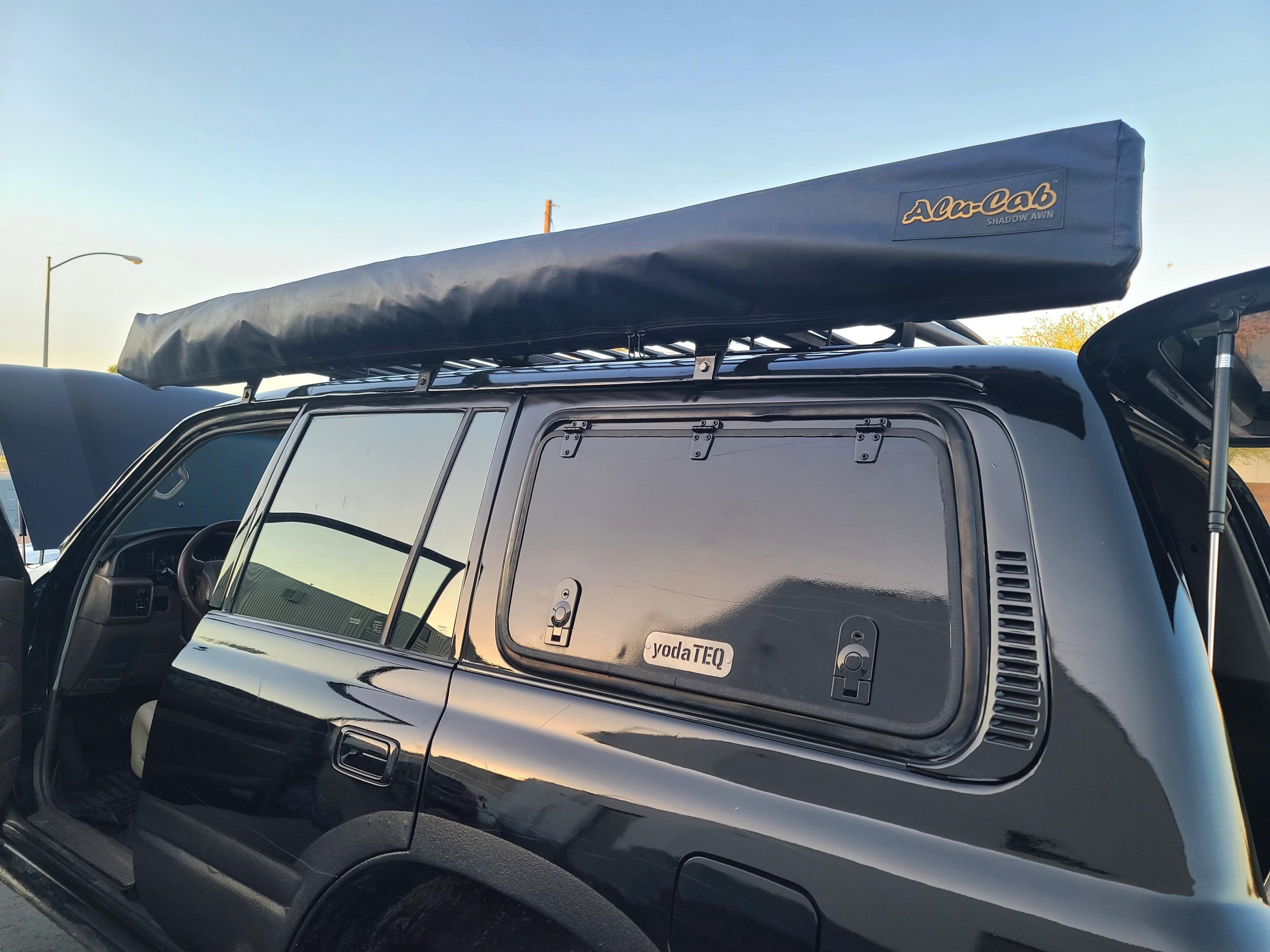

  • Minimalist Overland Setup: Rather than permanently filling the interior with a complete camper build, this FJ80 has been kept relatively simple and adaptable. Equipment includes YodaTEQ gullwing rear windows, tailgate storage, a heavy-duty tilt fridge slide, rear-view camera, Yaesu HAM radio, Alu-Cab 270-degree Shadow Awning with LED lighting, and a new Overland Vehicle Systems Nomadic shower/privacy awning. The factory rear seats remain in place, and the seller notes that the truck is ready for additions such as refrigeration or a rooftop tent depending on its next owner's needs.
There are modified 80 Series Land Cruisers, and then there are builds where the drivetrain, gearing, suspension, axles, cooling, armor, recovery equipment, fuel capacity, and supporting systems have all been addressed as a package. This one falls firmly into the latter category. The 5.29 gearing and 39-inch tires are supported by RCV 30-spline axles, rebuilt transmission and transfer case, high-steer and three-link front suspension, BP-51 rear suspension, heavy-duty trailing arms, upgraded cooling, and substantial underbody protection. At the same time, the 38-gallon tank, dual batteries, onboard air, gullwing windows, awnings, and storage additions give it a useful foundation for longer overland trips without committing the next owner to somebody else's full interior layout.

The seller describes the Land Cruiser as mechanically sound with only minor cosmetic flaws and says all modifications have fewer than 5,000 miles.

Engine & Drivetrain

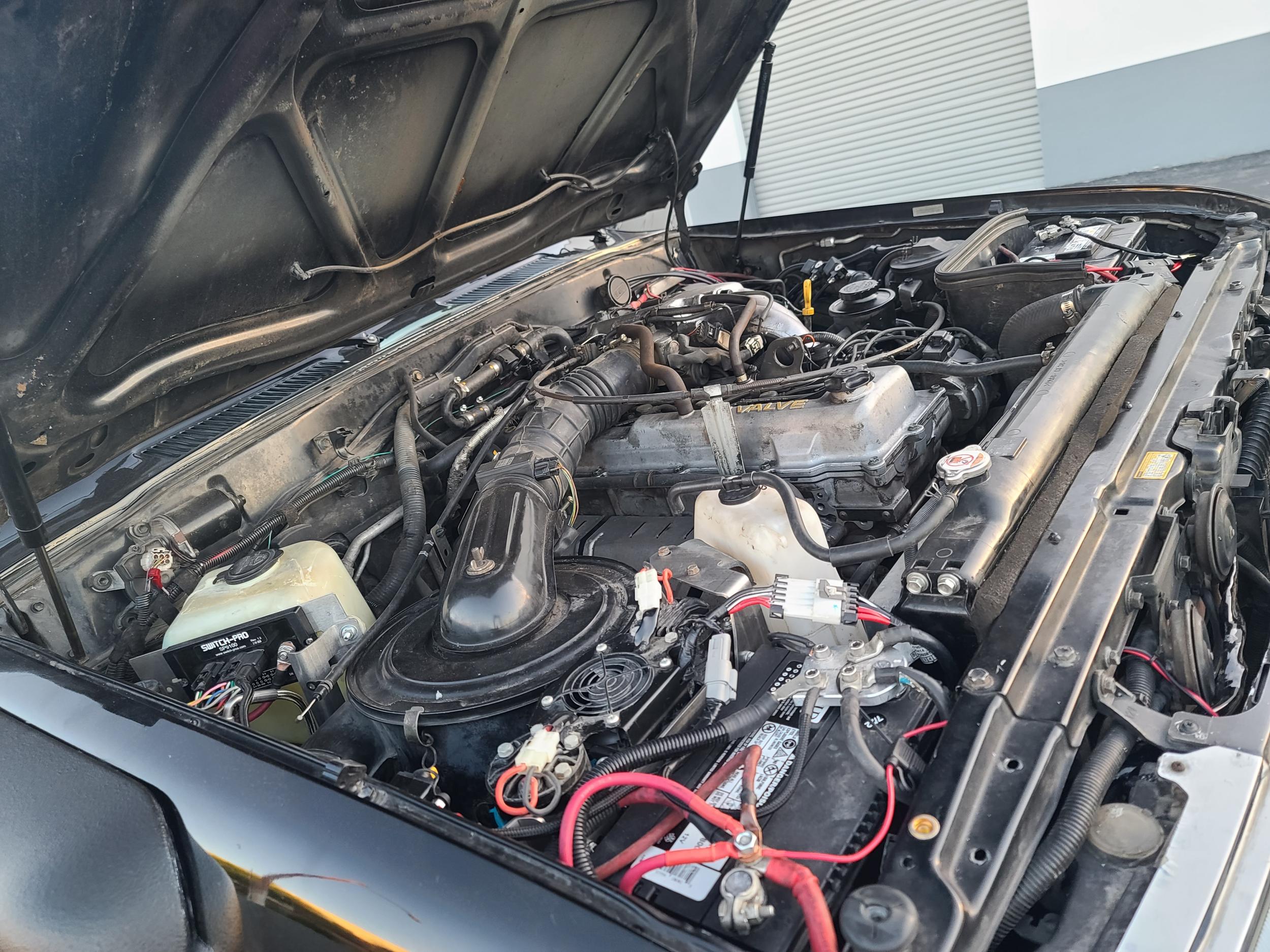

  •  4.5-liter 1FZ-FE inline-six
  •  Rebuilt automatic transmission
  •  Nomad valve body
  •  Rebuilt transfer case with 10/25 gearing
  •  Part-time 4WD conversion
  •  Locking front hubs
  •  Nitro Gear 5.29 gearing
  •  ARB front air locker
  •  ARB rear air locker
  •  Locking center differential
  •  RCV Ultimate 30-spline 300M front and rear axle sets
  •  Replacement front and rear driveshafts

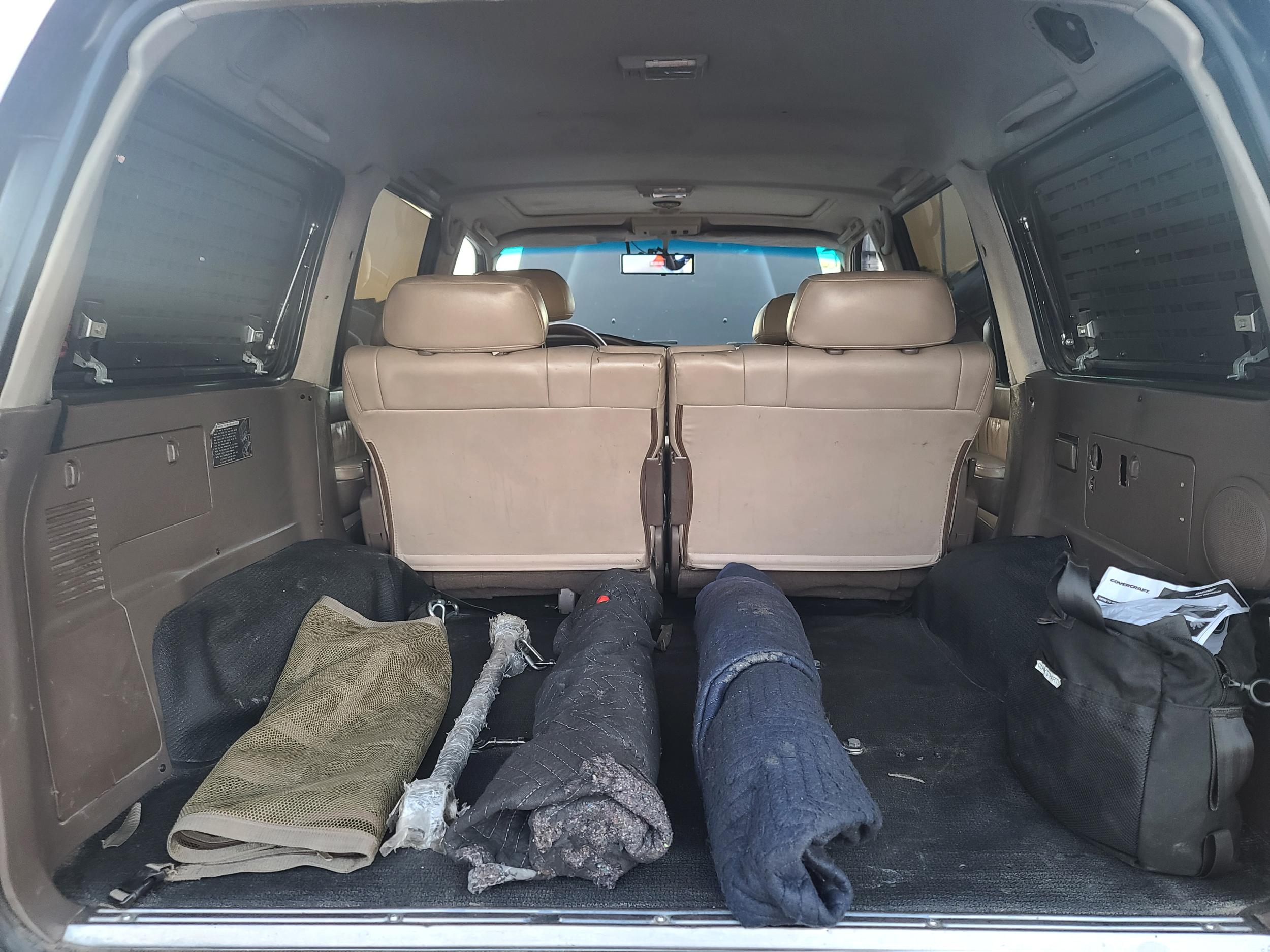

  •  Spare driveshafts included
  •  ABS delete
Suspension & Steering

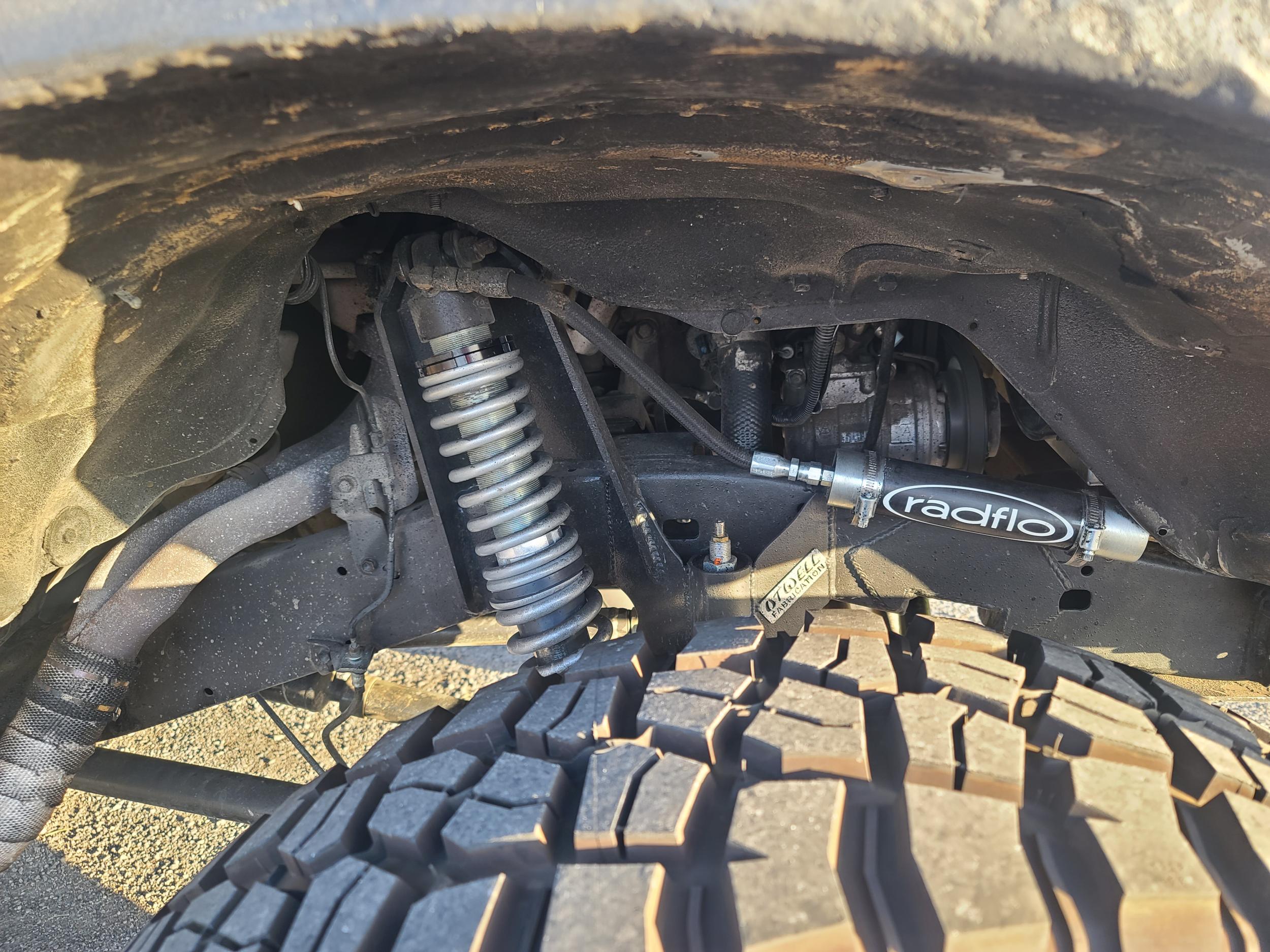

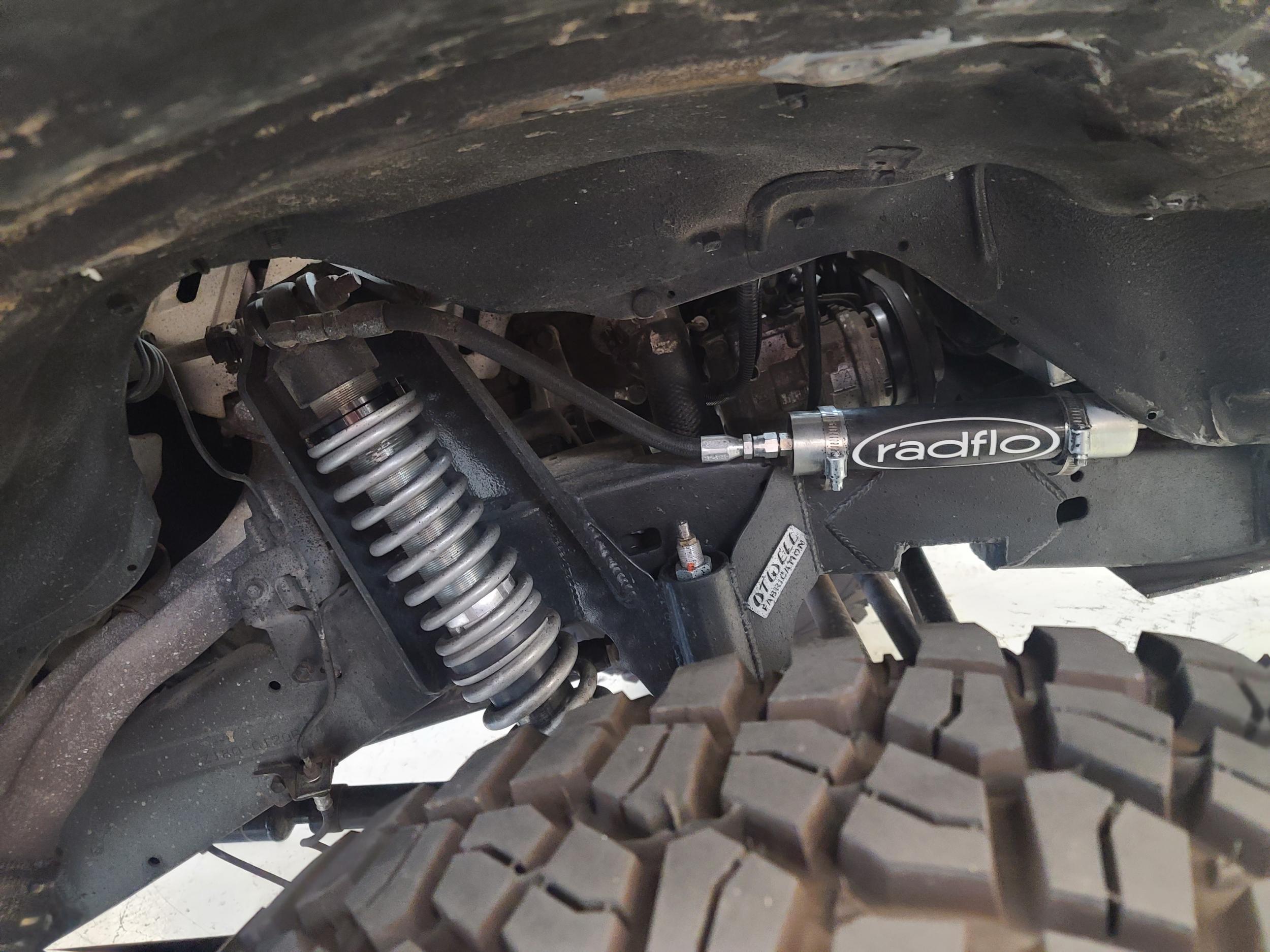

  •  4 Wheels Underground three-link front suspension
  •  Front Range high-steer system
  •  Five-inch rear lift
  •  BP-51 suspension components
  •  Dobinsons heavy-duty rear trailing arms

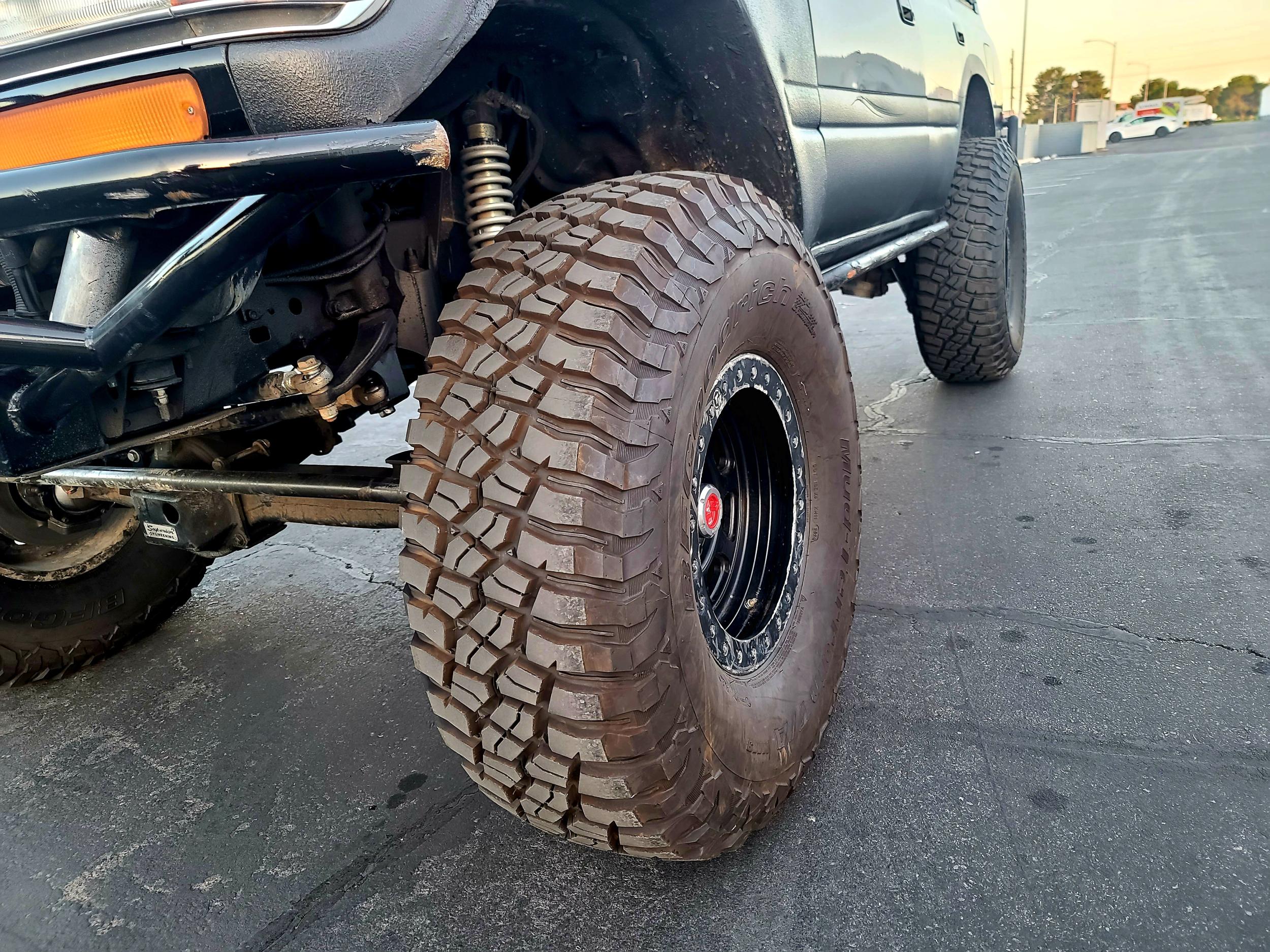

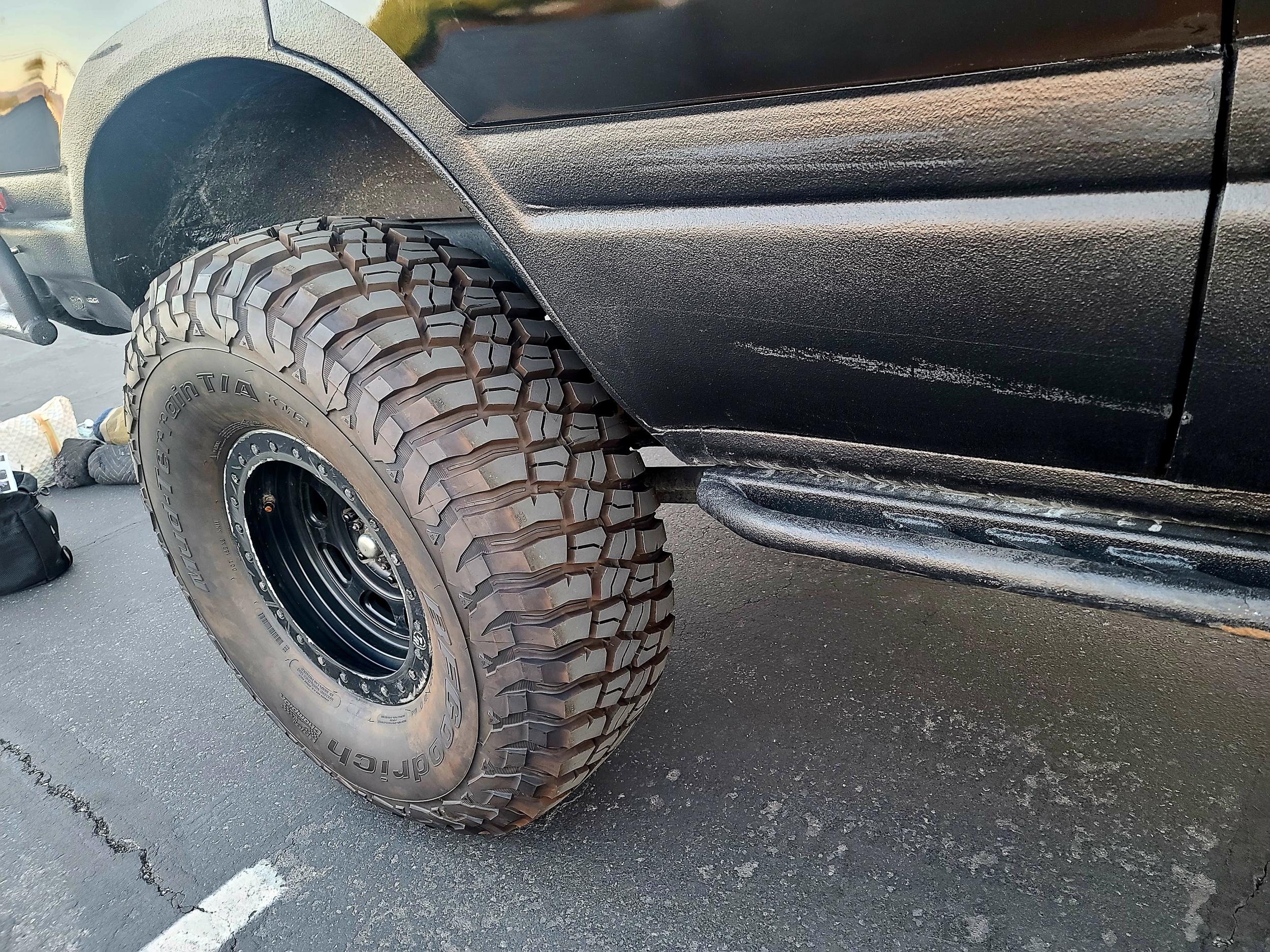

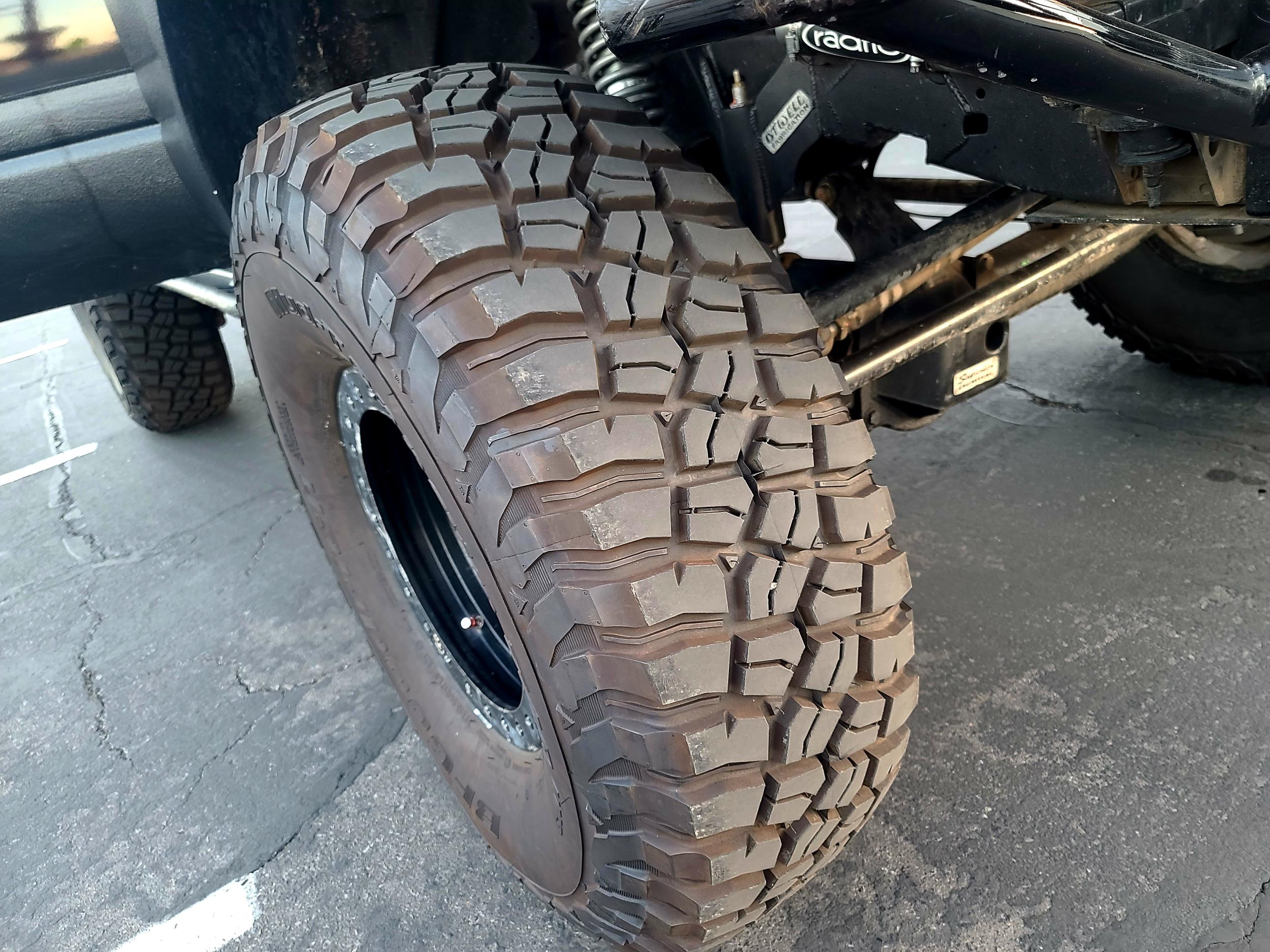

  •  39x13.50R17 BFGoodrich KM3 tires
  •  TR HD17 17x8.5-inch true beadlock wheels

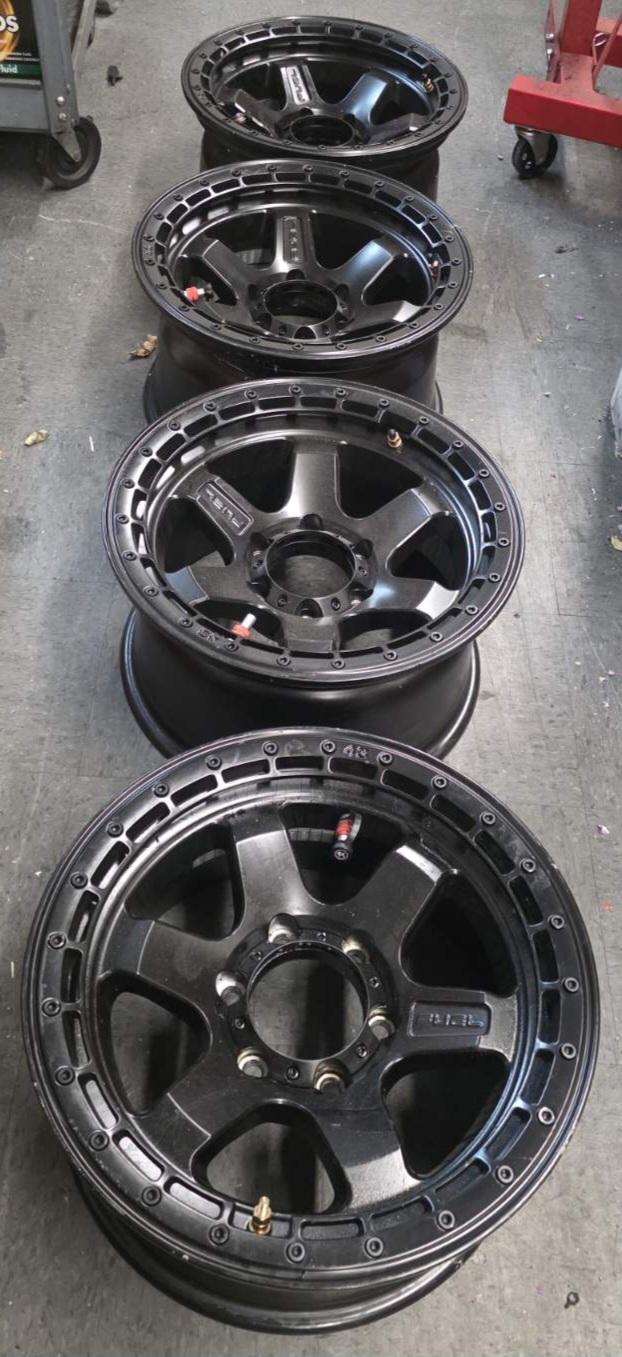

  •  Four new Fuel D750 Block 17x9 wheels included
Cooling & Mechanical
  •  Rebuilt cylinder head with fewer than 5,000 miles
  •  New radiator
  •  New water pump
  •  New thermostat
  •  New cooling hoses
  •  50-amp electric cooling fan
  •  Auxiliary transmission cooler with fan
  •  New alternator
  •  New starter
  •  New Toyota fuel pump
  •  New spark plugs, coils, cap, rotor, and ignition wires
  •  New power-steering hoses
  •  New drive belts
  •  New A/C compressor and relocated receiver/dryer
  •  Cold, functional A/C
The CARFAX also documents substantial service in 2020, including cooling-system work, differential and transfer-case servicing, front brake rotors, rear brake pads, starter, fuel filter, and power-steering work.  It subsequently records transfer-case work and transmission removal/reinstallation in 2021.

Armor & Recovery

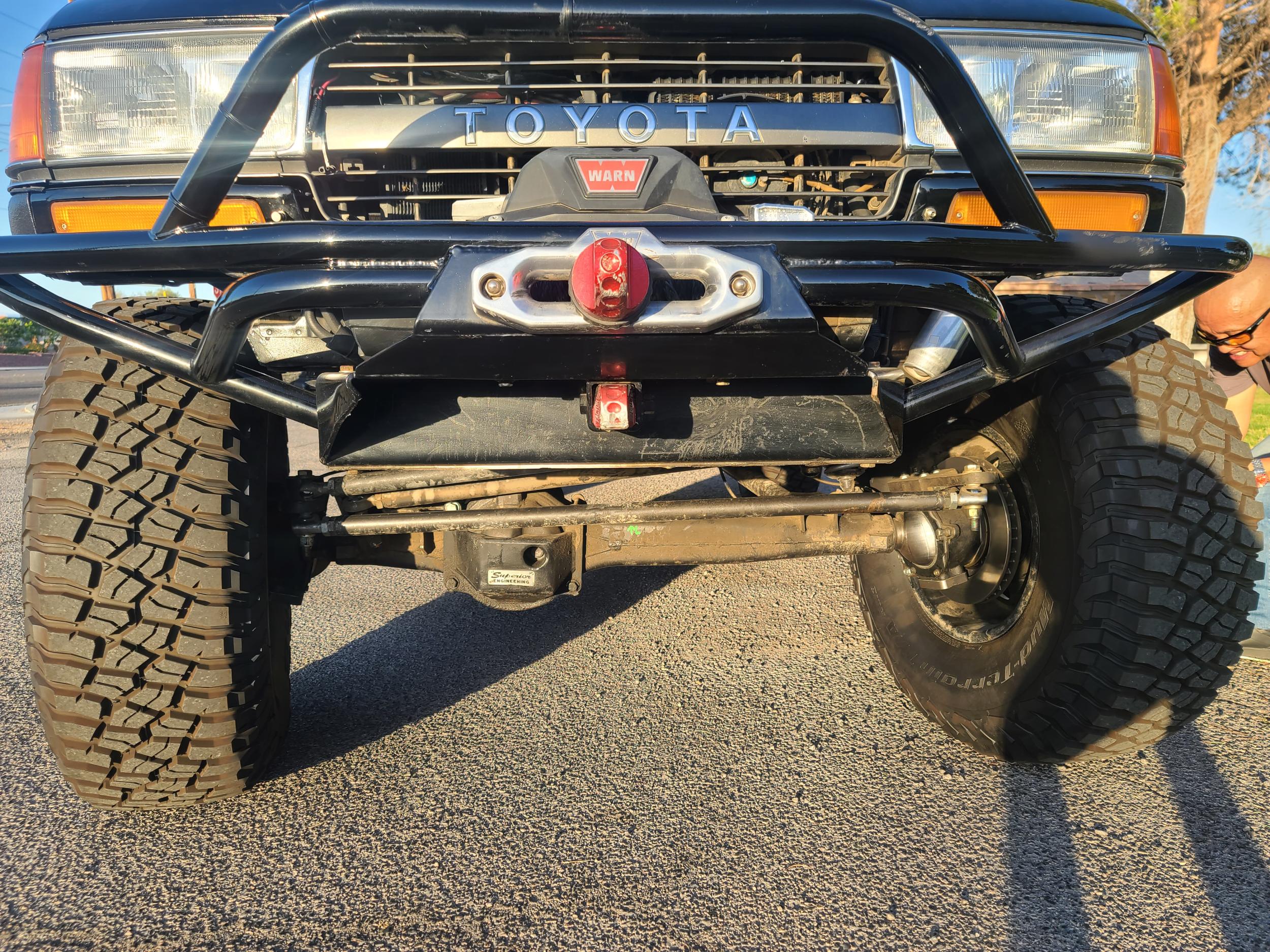

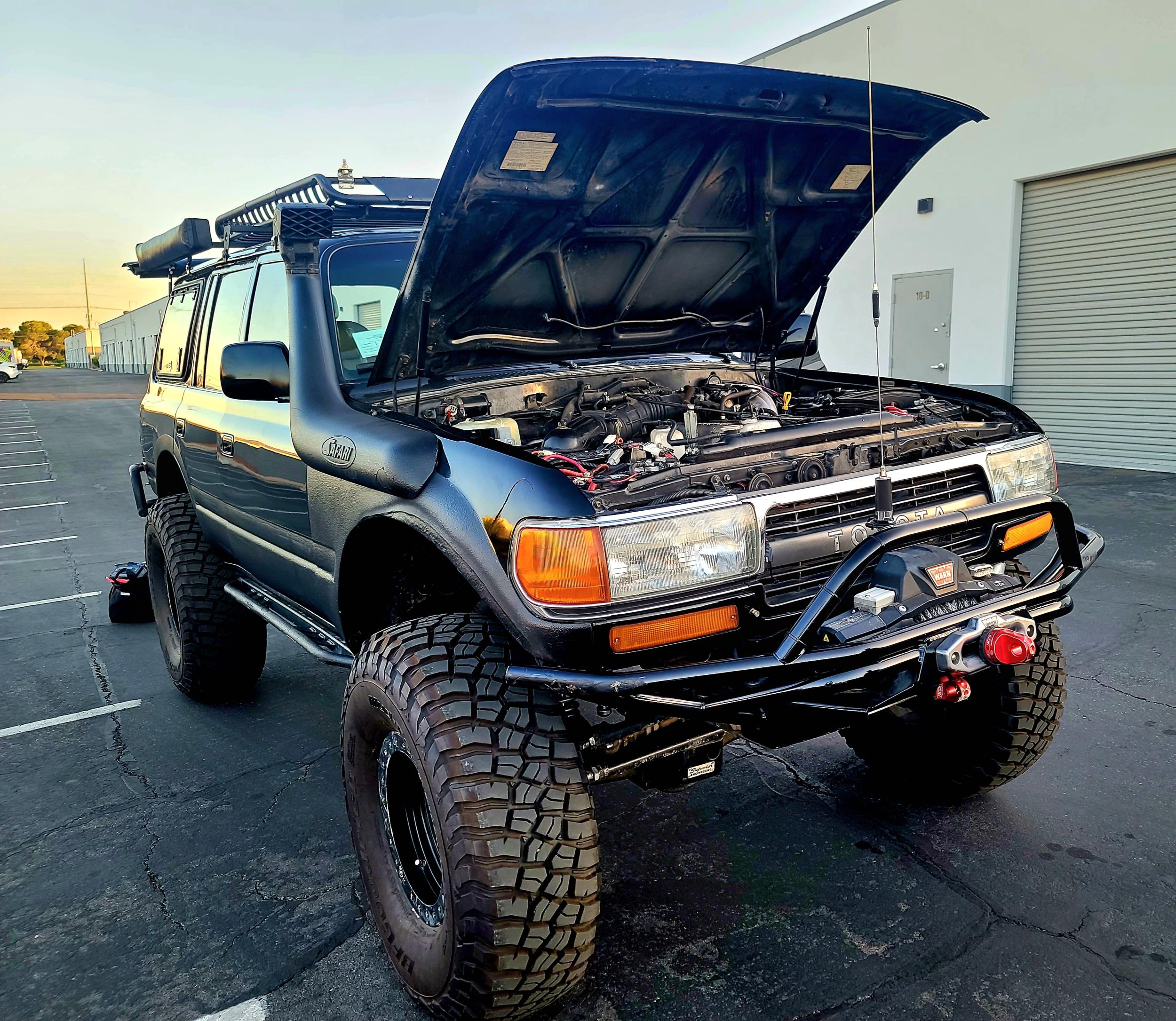

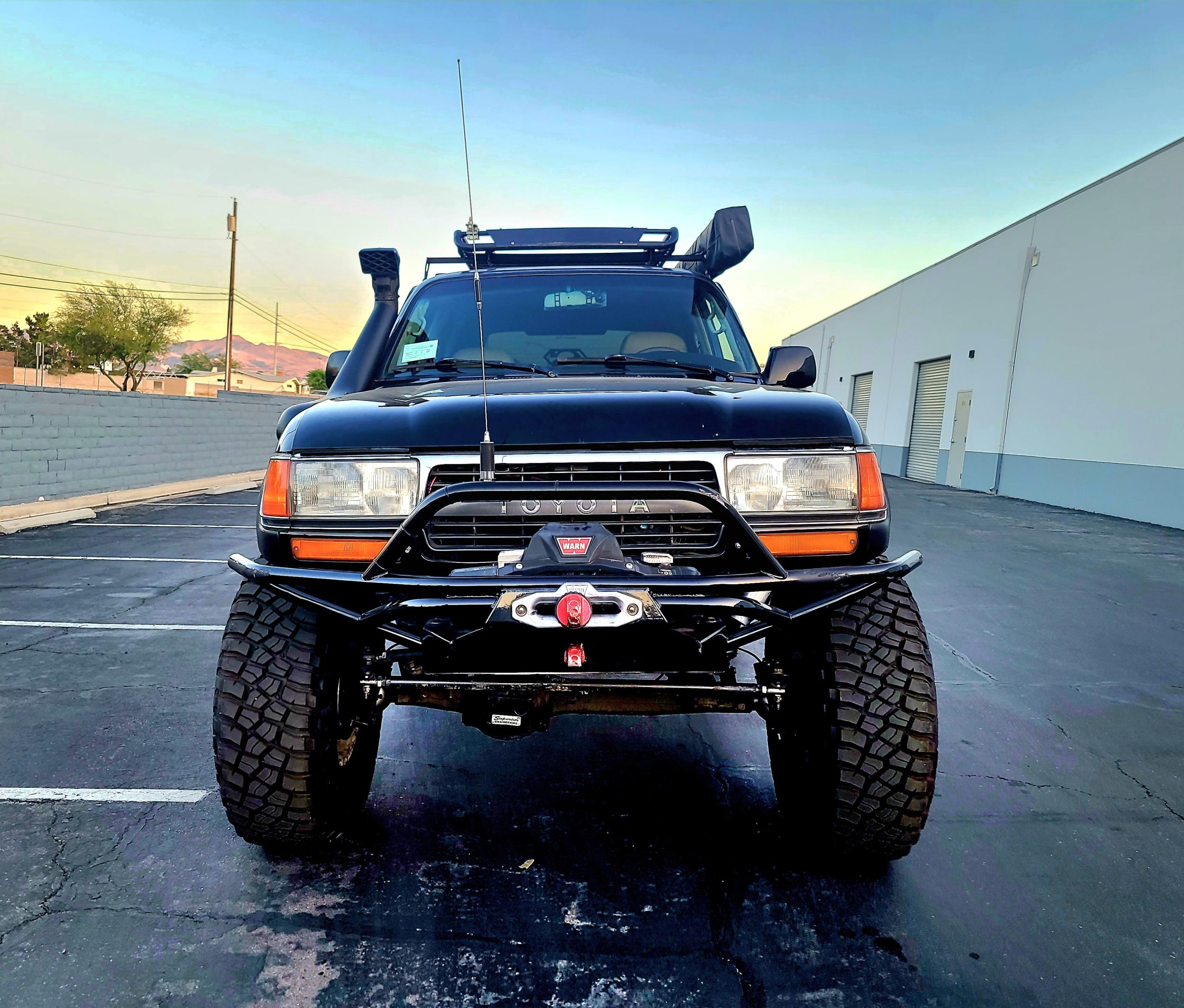

  •  Trail-Gear Rock Defense front bumper with stinger

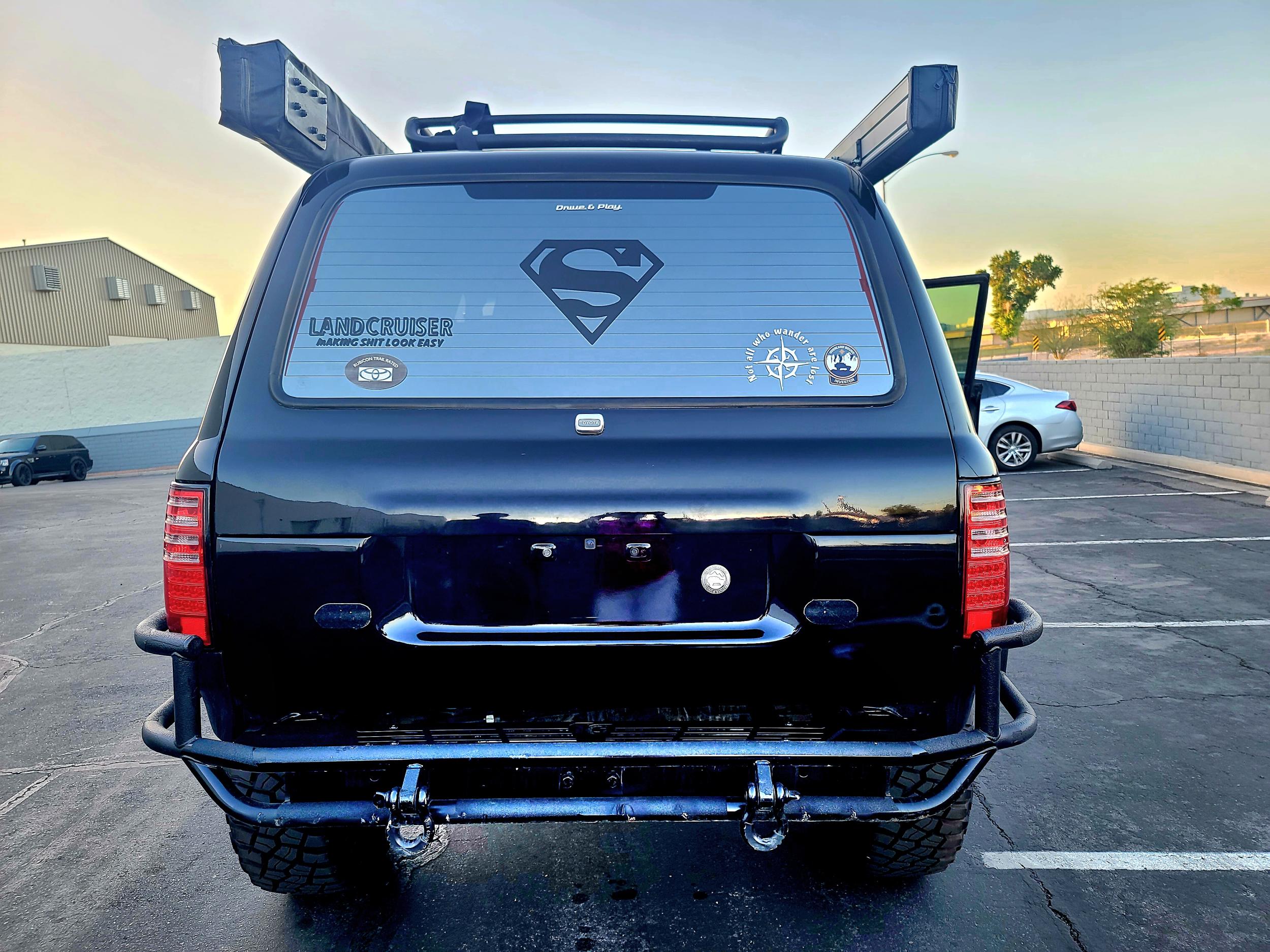

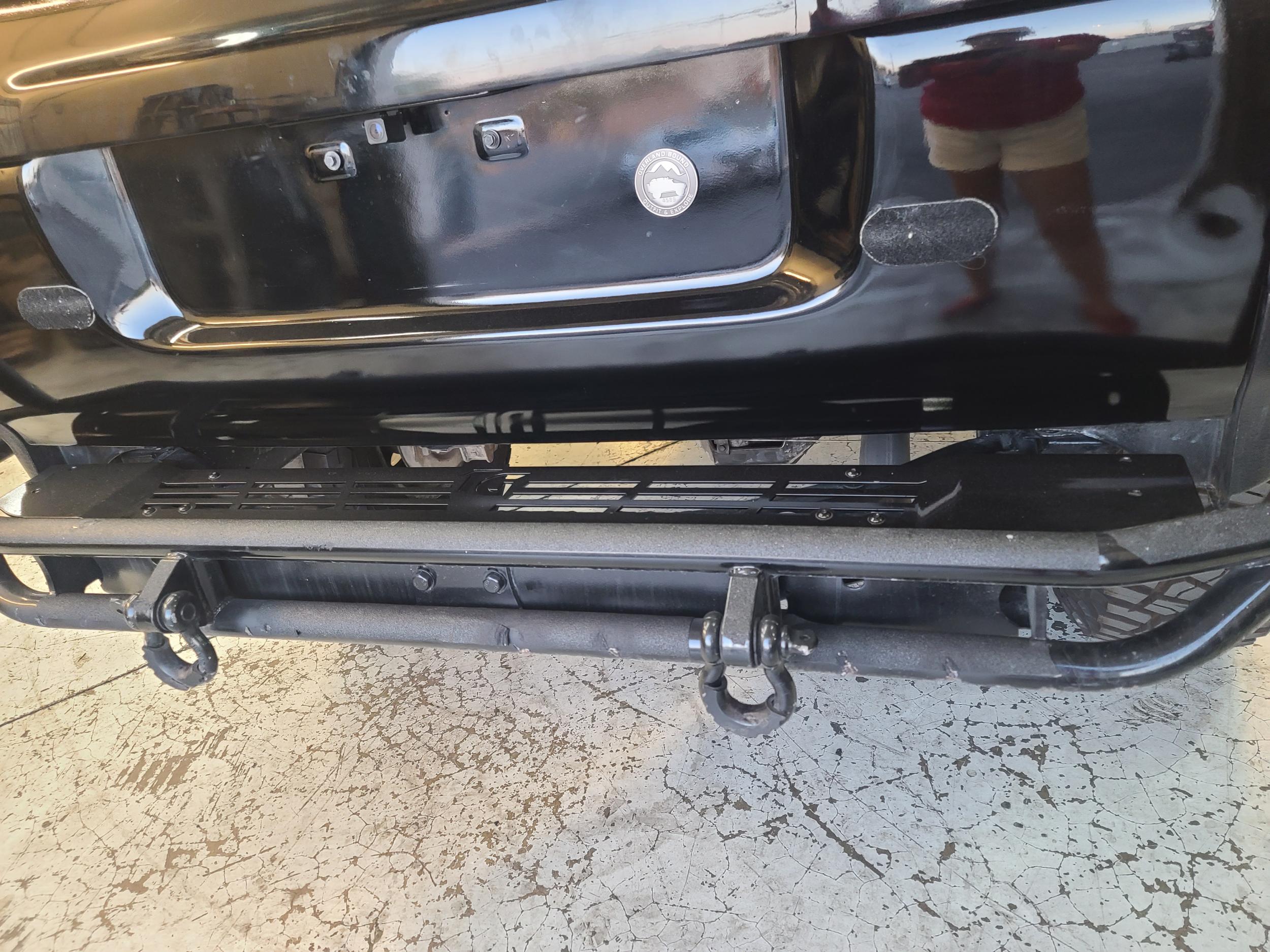

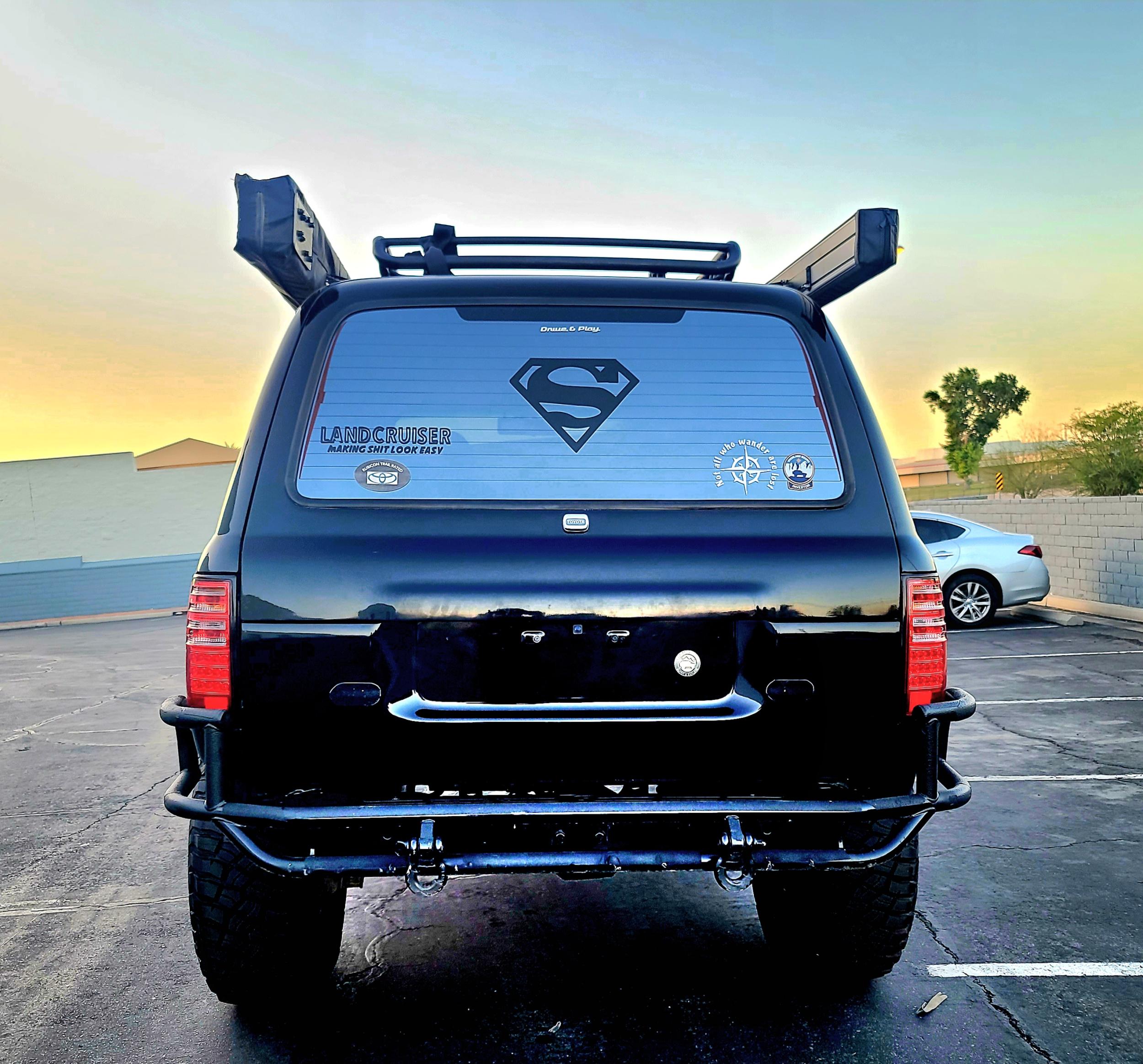

  •  Trail-Gear Rock Defense rear bumper
  •  Warn ZEON 10-S winch
  •  Synthetic winch line
  •  Factor 55 thimble
  •  Remote winch controller
  •  Rocky Road Outfitters Rock Crusher welded sliders
  •  Skid plates protecting oil pan, transmission, and differentials
  •  ARB Safari snorkel
Overland & Utility
  •  38-gallon Long Range America main fuel tank

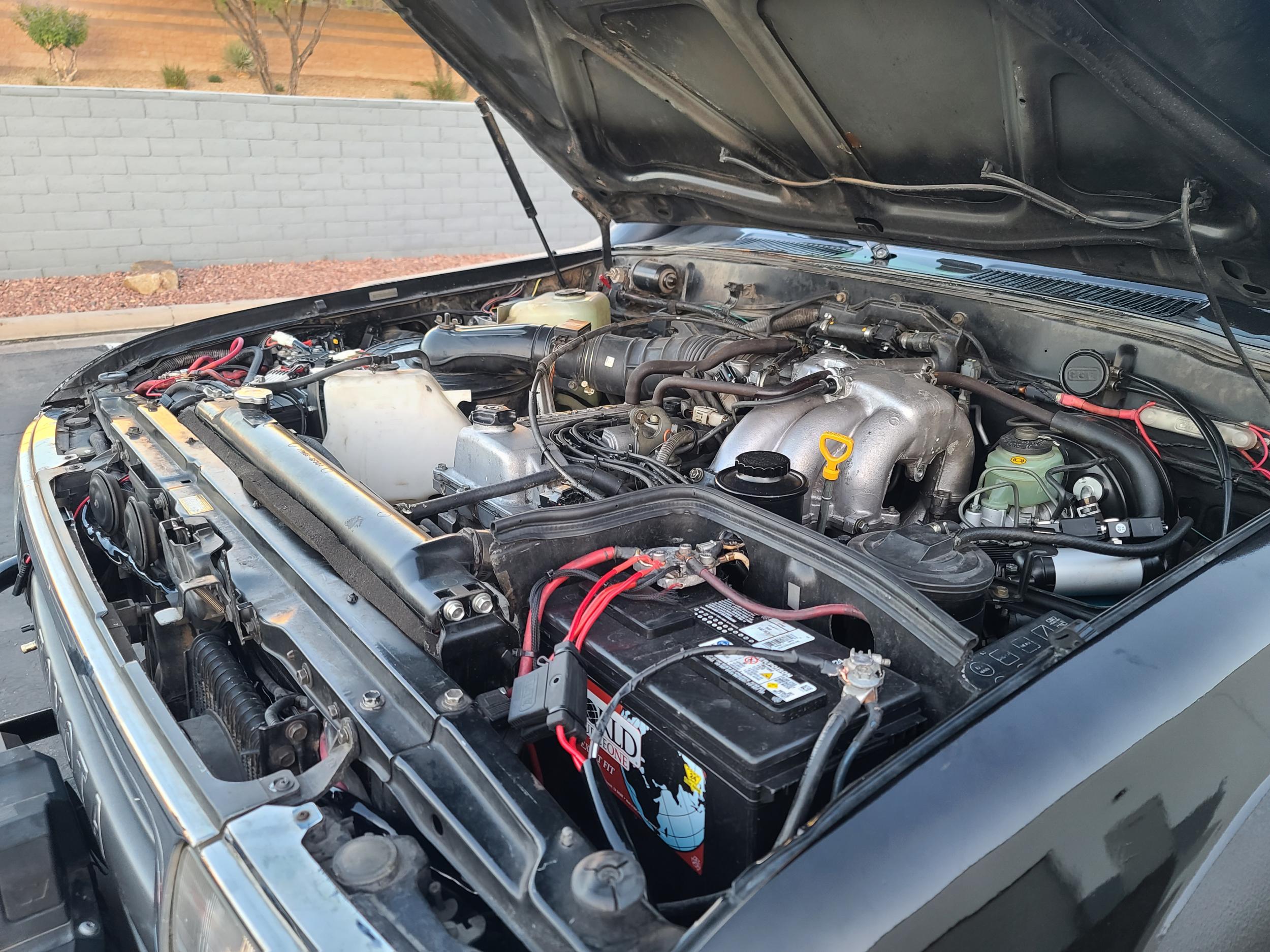

  •  Dual-battery system
  •  ARB CKMTA12 twin onboard air compressor
  •  Dedicated ARB locker compressor
  •  Four-way tire inflation/deflation system
  •  Switch-Pros SP9100 accessory control system

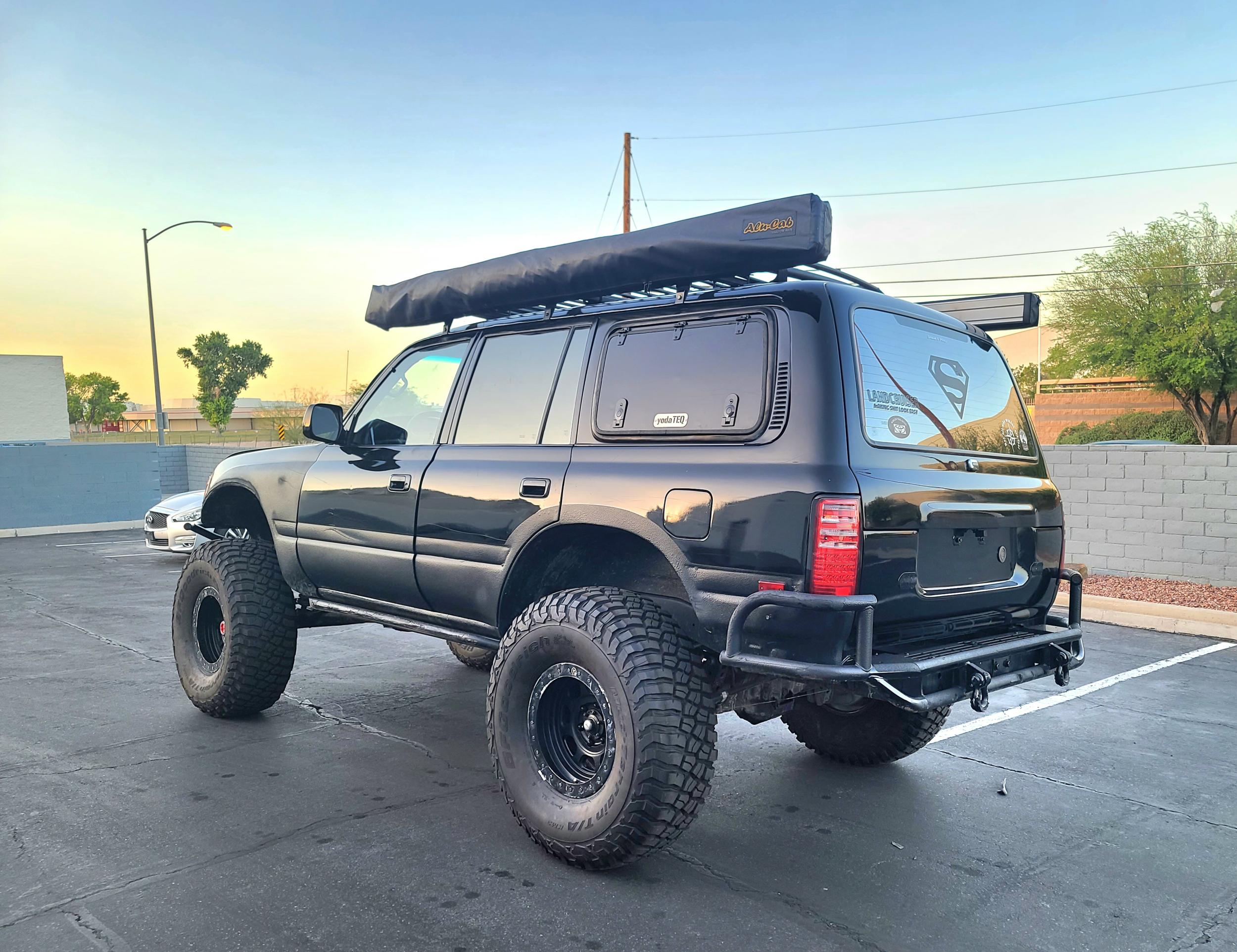

  •  Alu-Cab 270-degree Shadow Awning with LED lighting

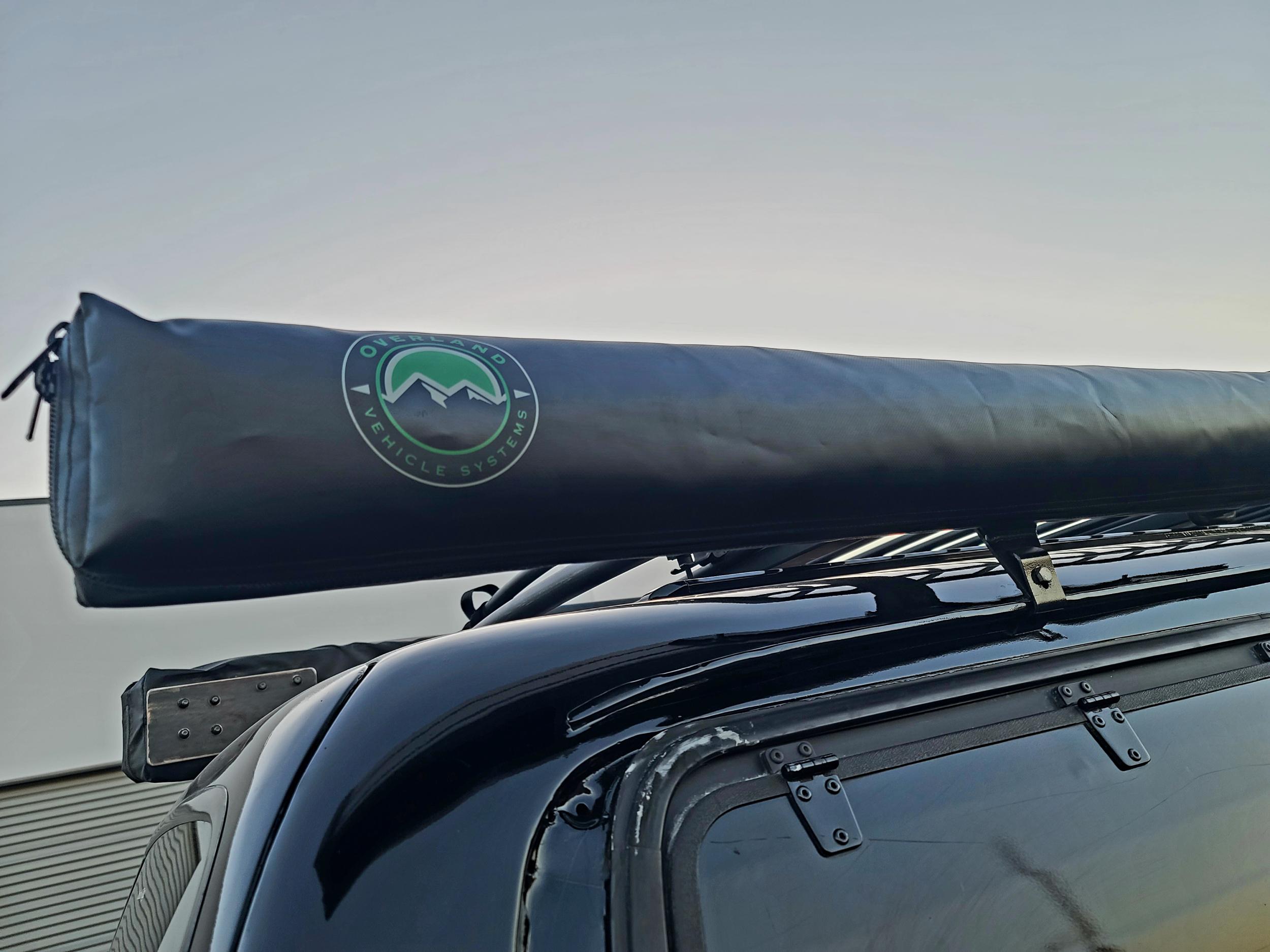

  •  Overland Vehicle Systems Nomadic shower/privacy awning

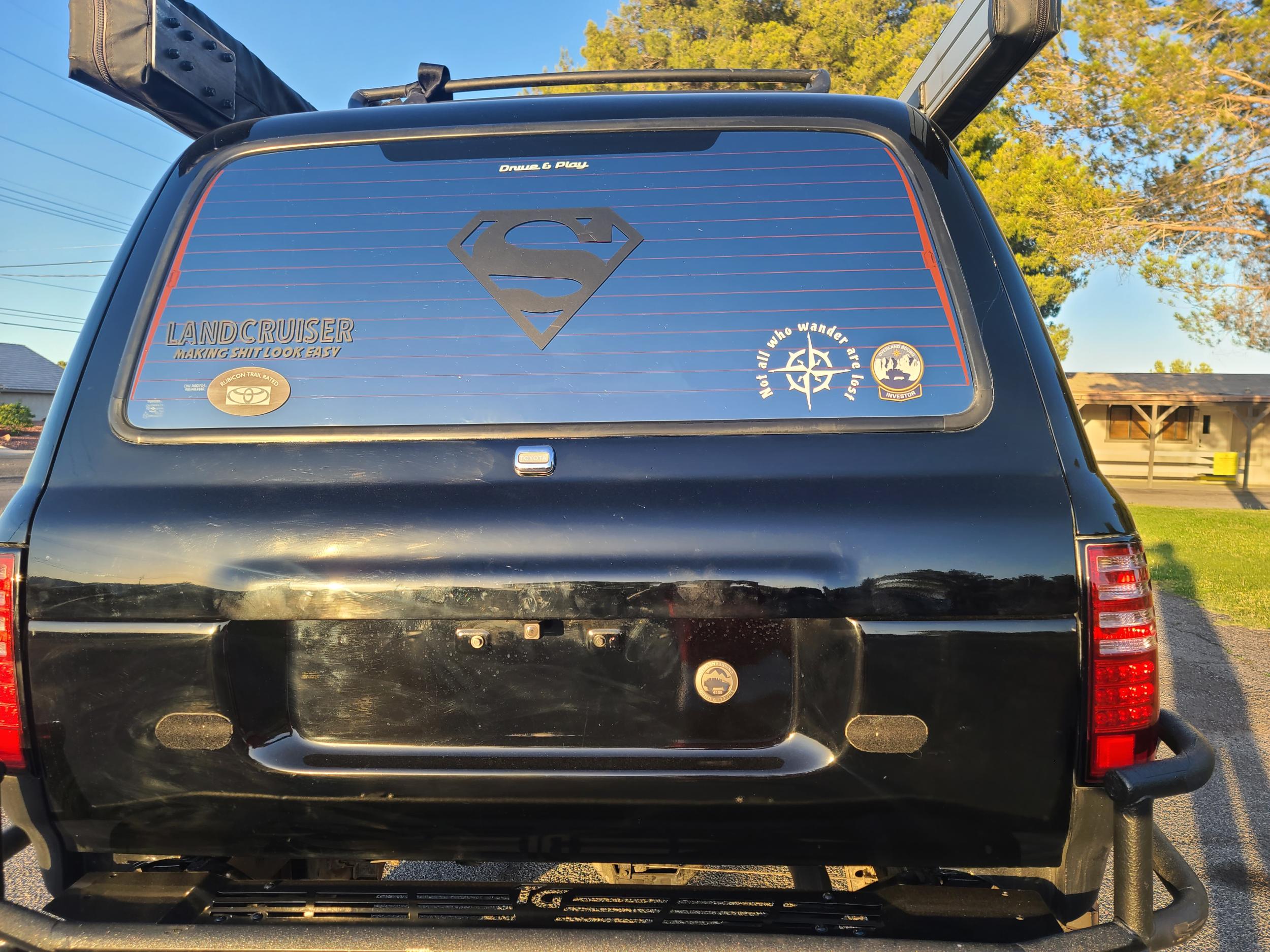

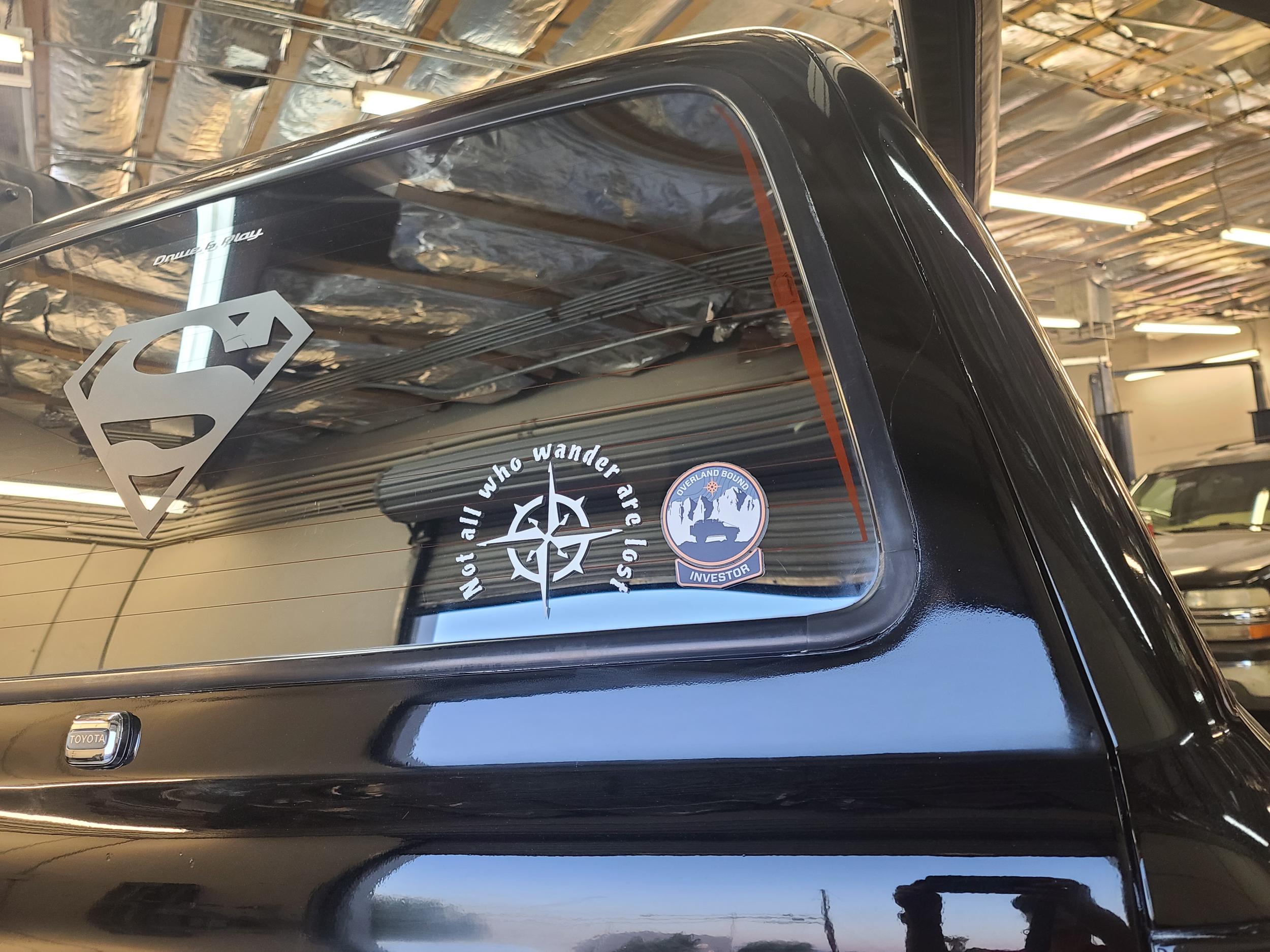

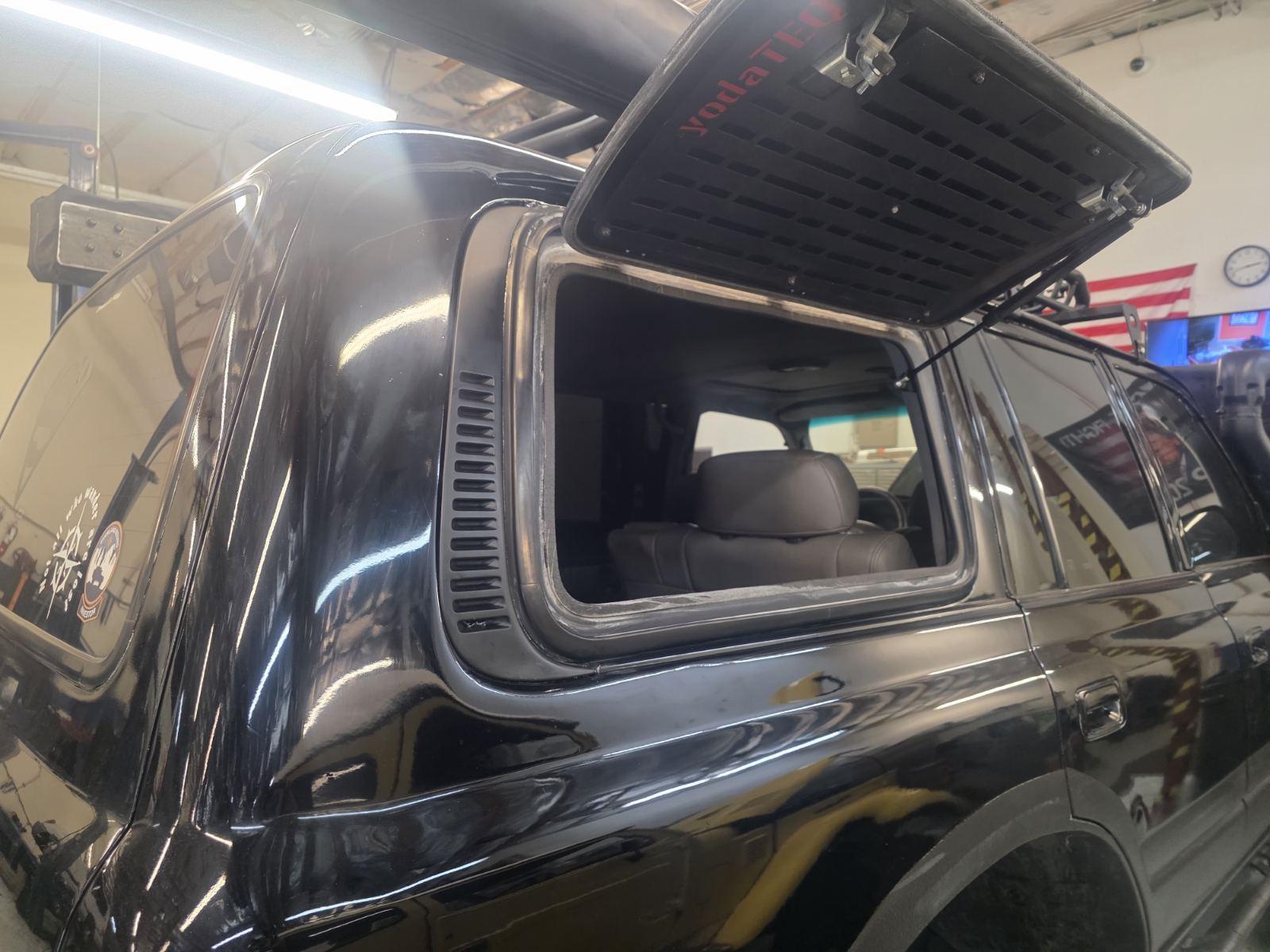

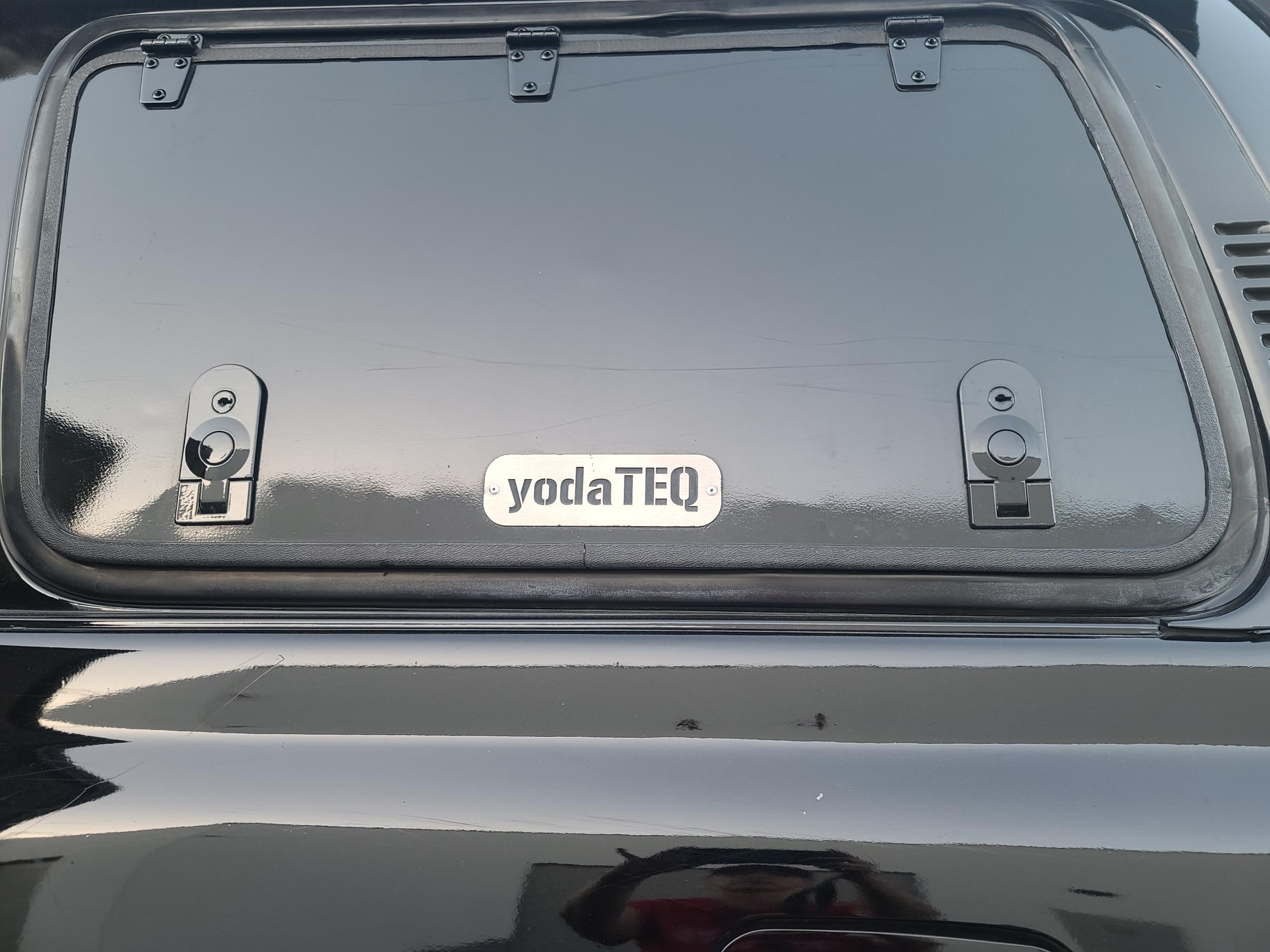

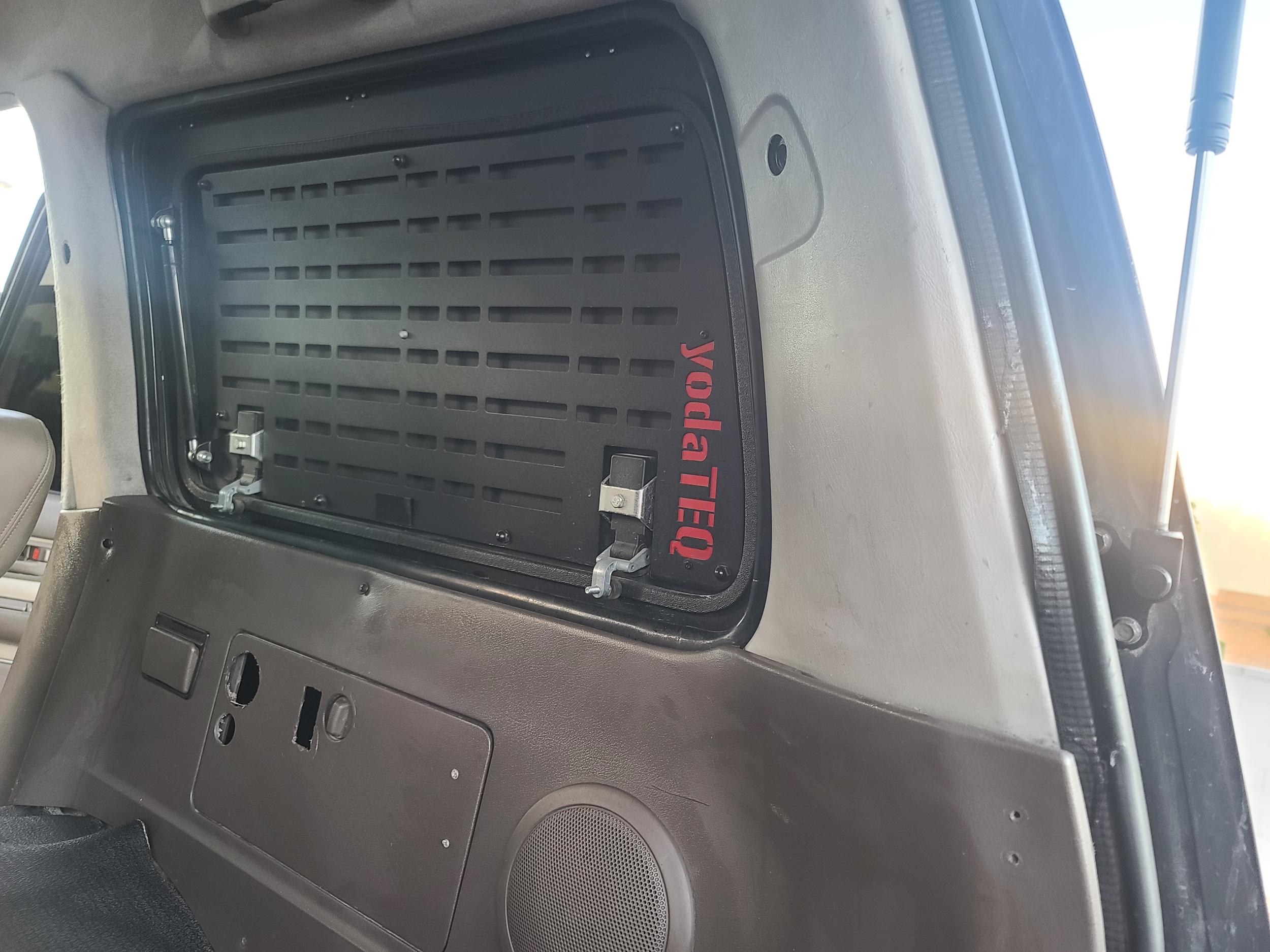

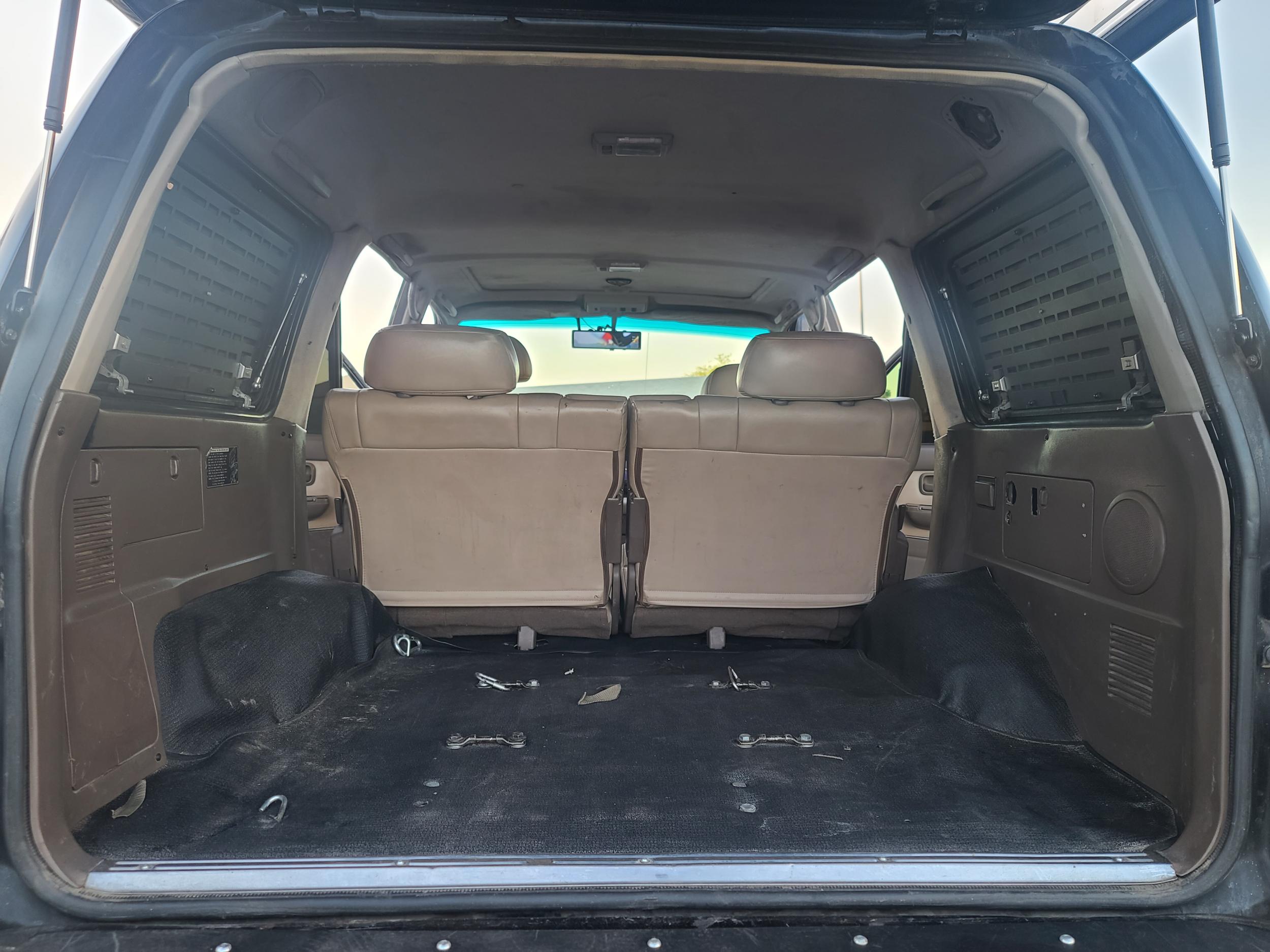

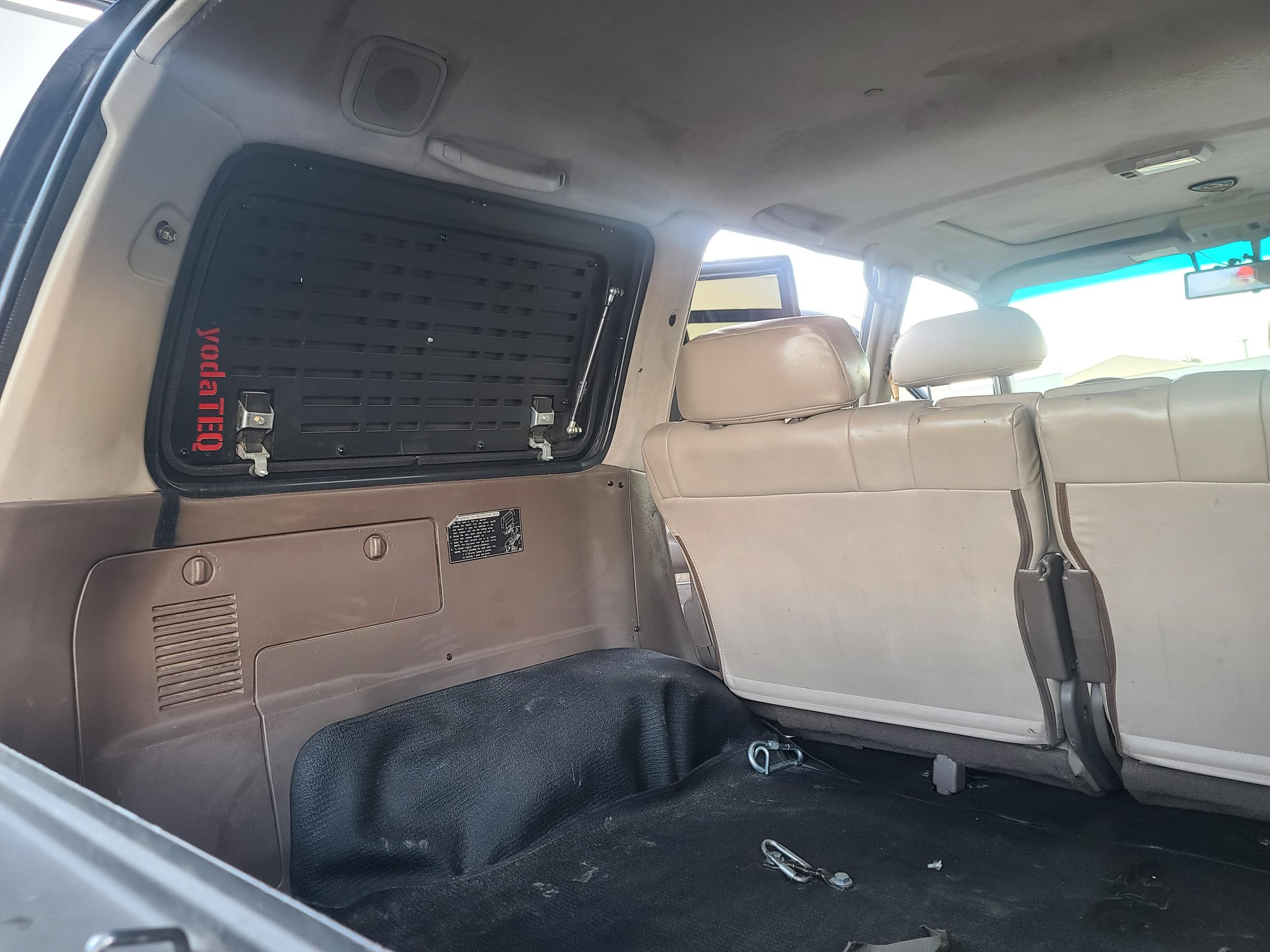

  •  YodaTEQ gullwing rear windows
  •  Heavy-duty tilt fridge slide

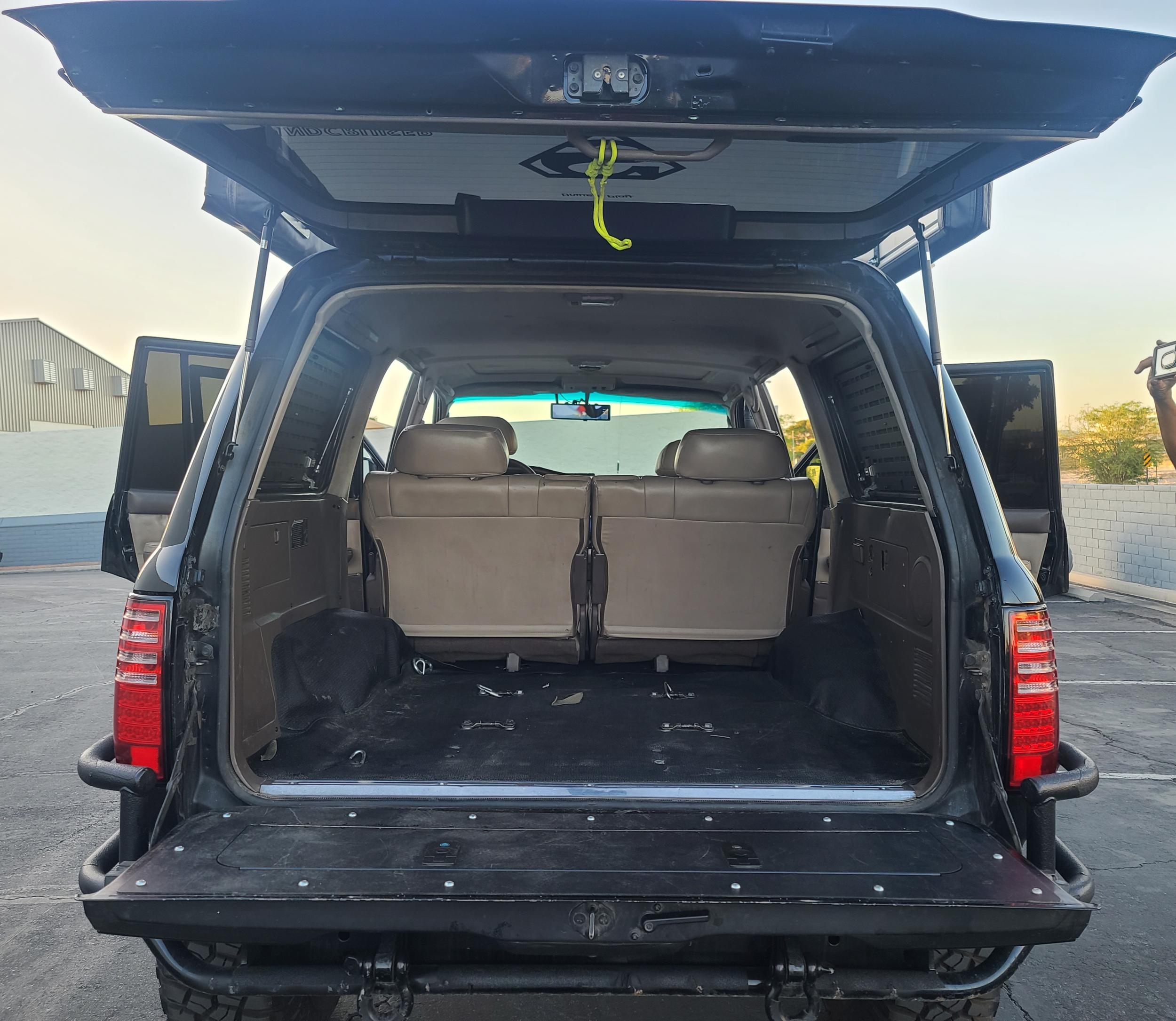

  •  Tailgate storage system

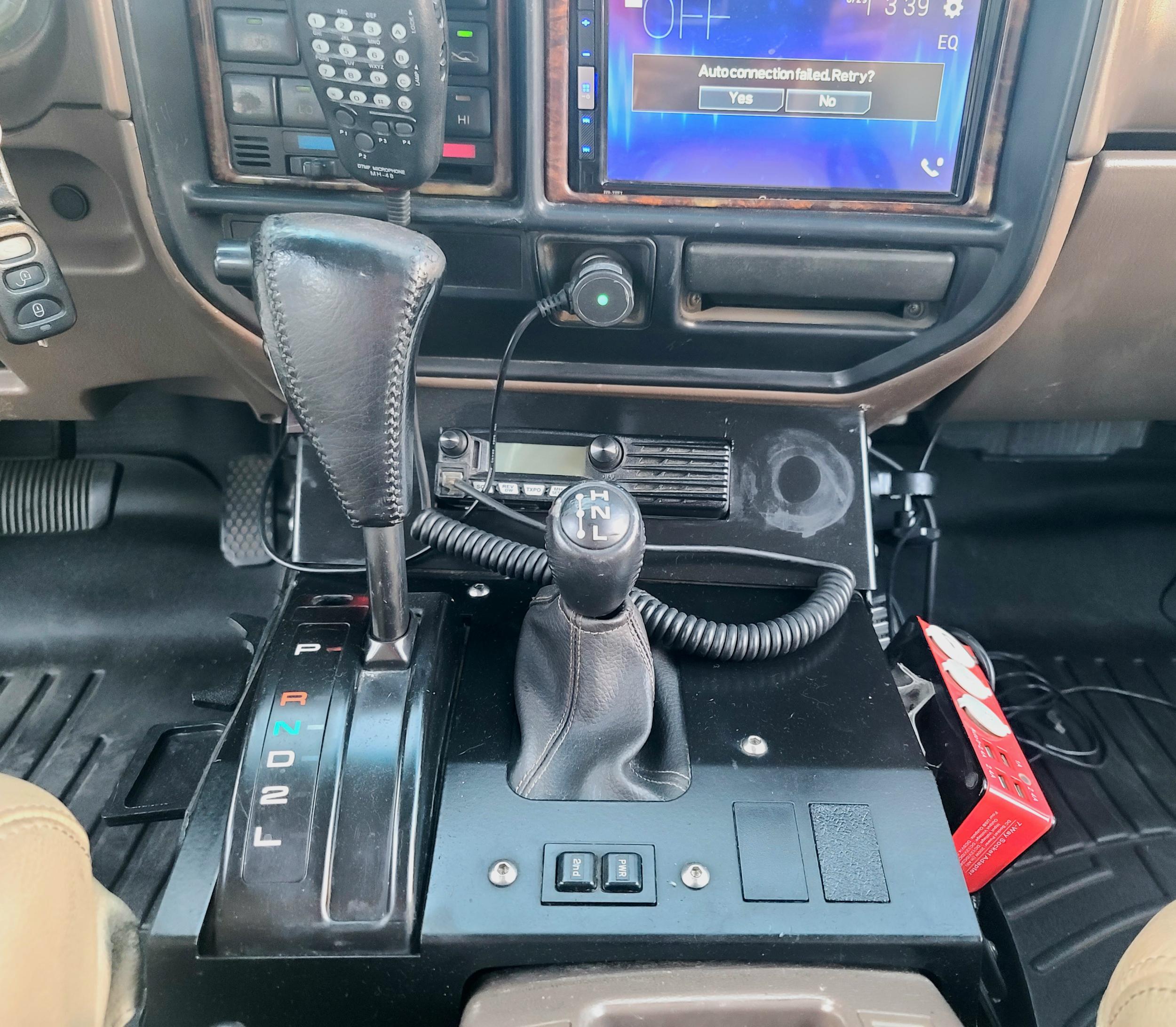

  •  Yaesu HAM radio
  •  Rear-view camera

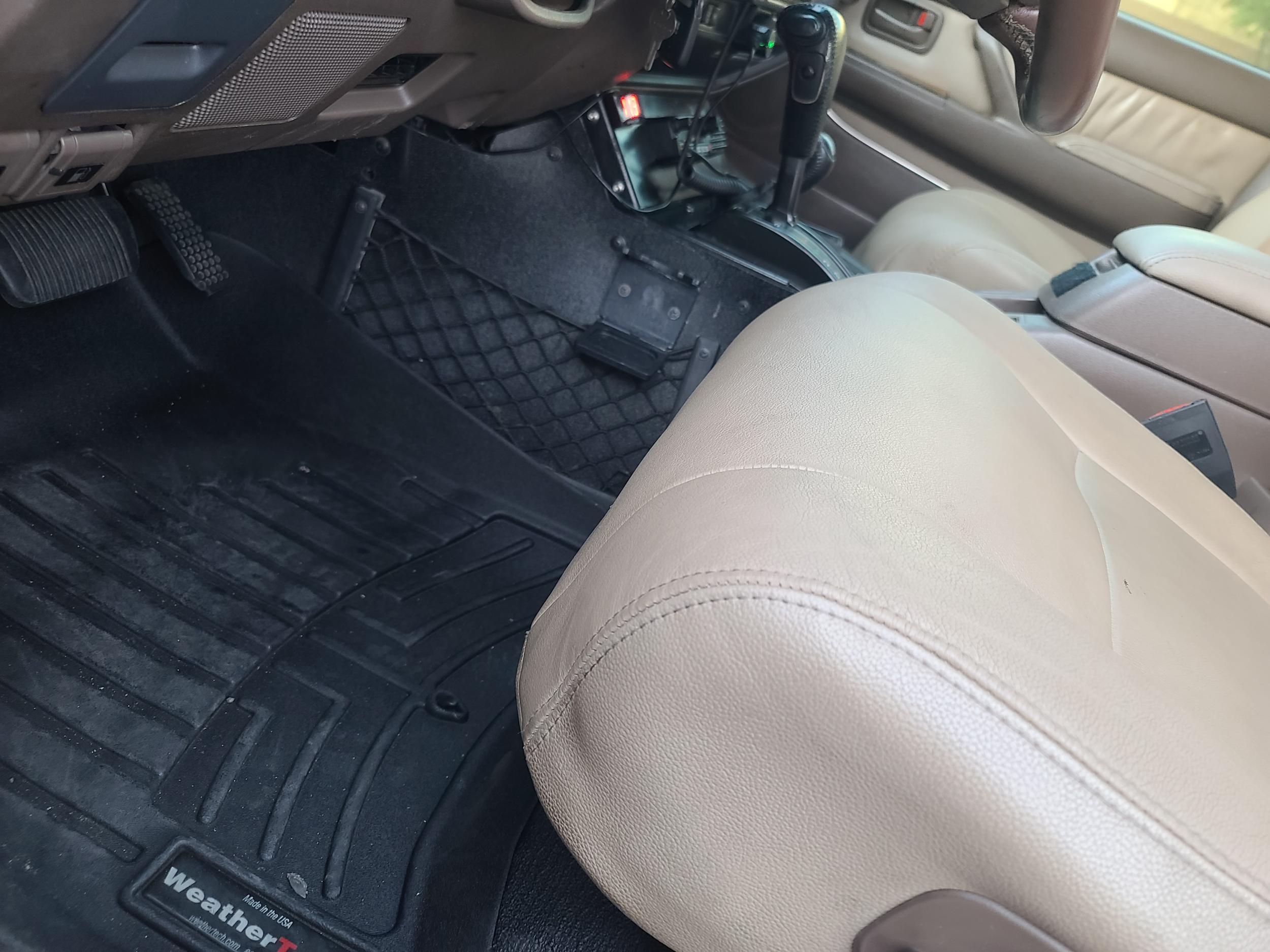

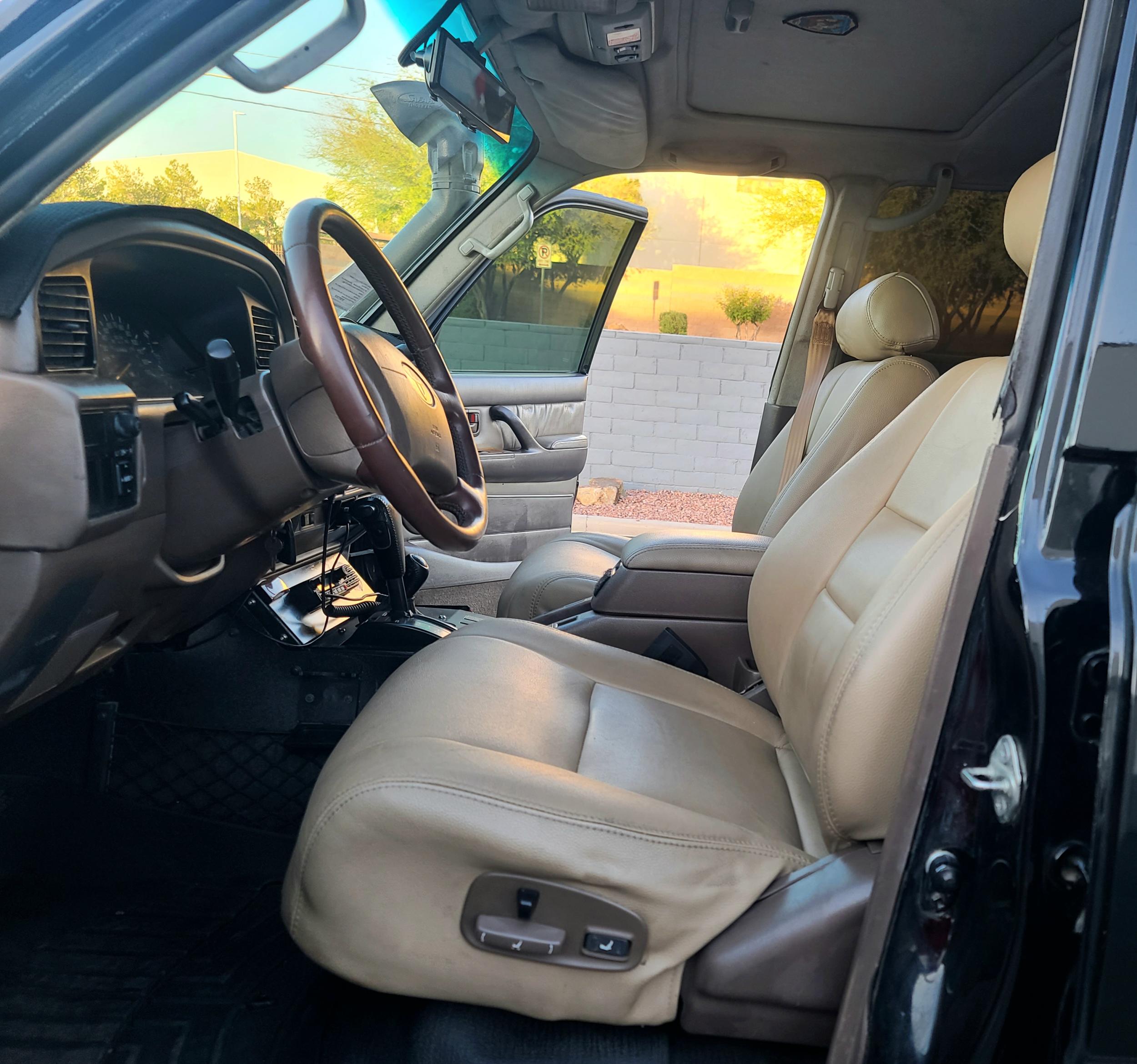

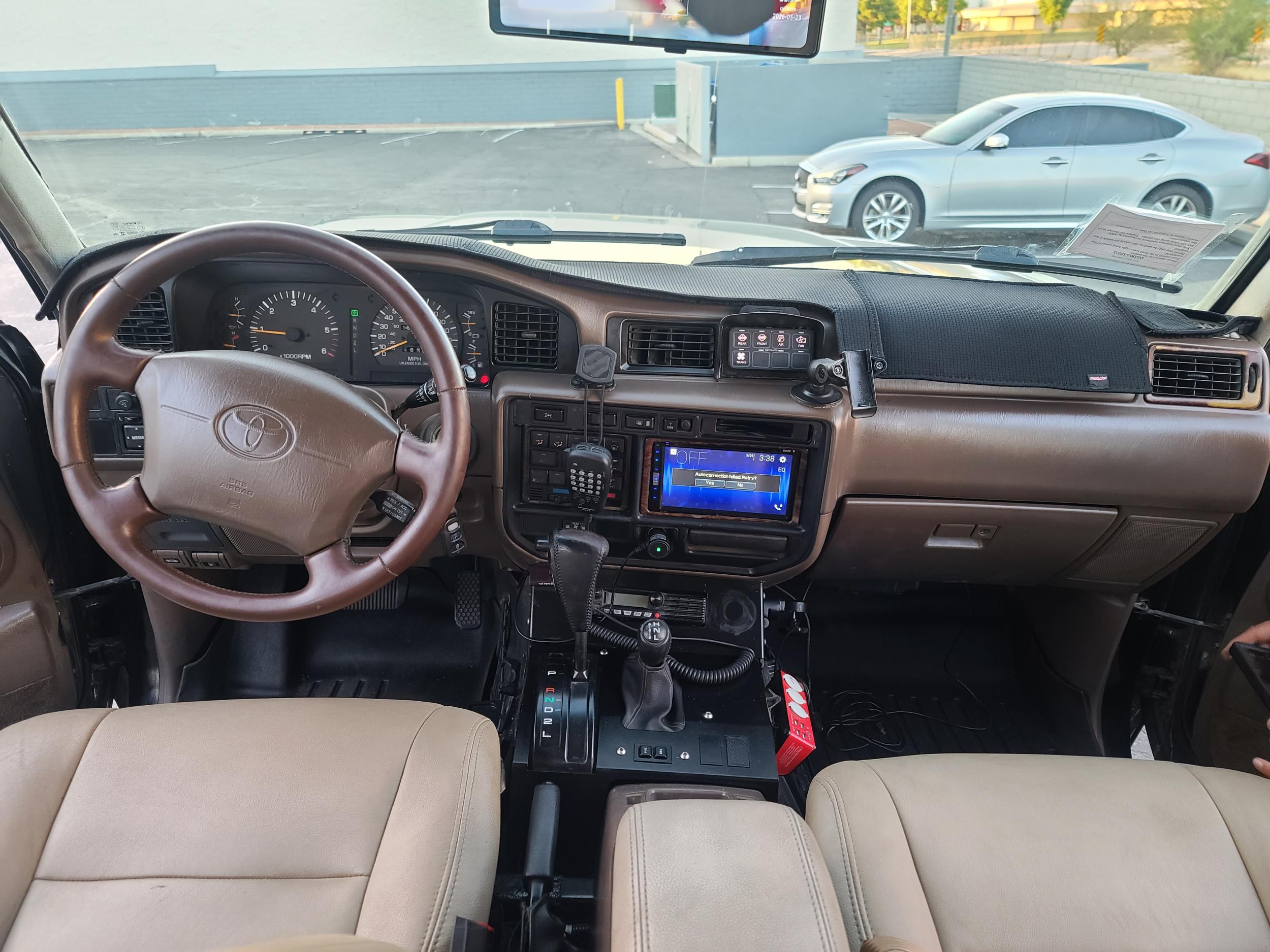

Interior & Equipment

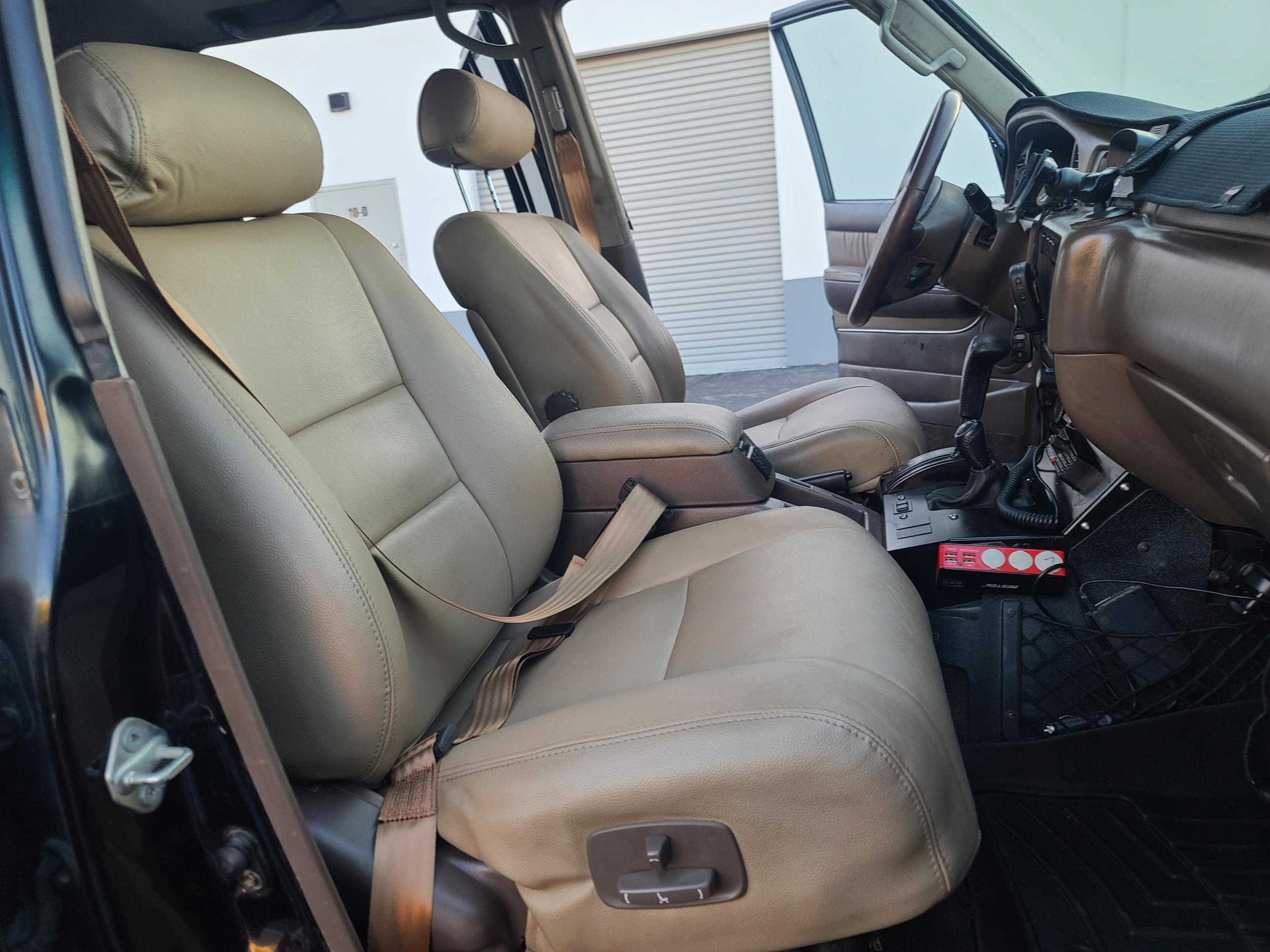

  •  Power seats
  •  Power windows

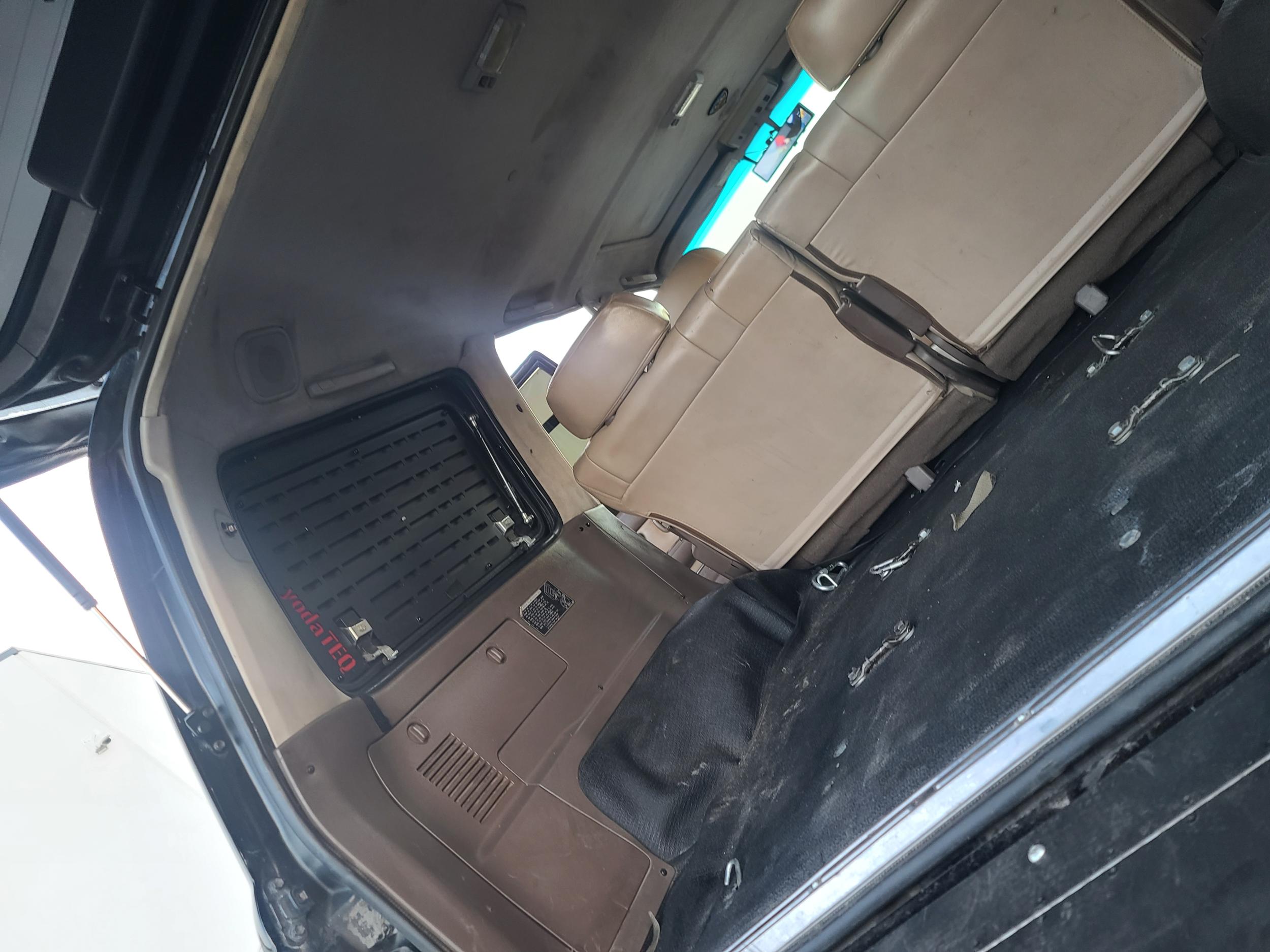

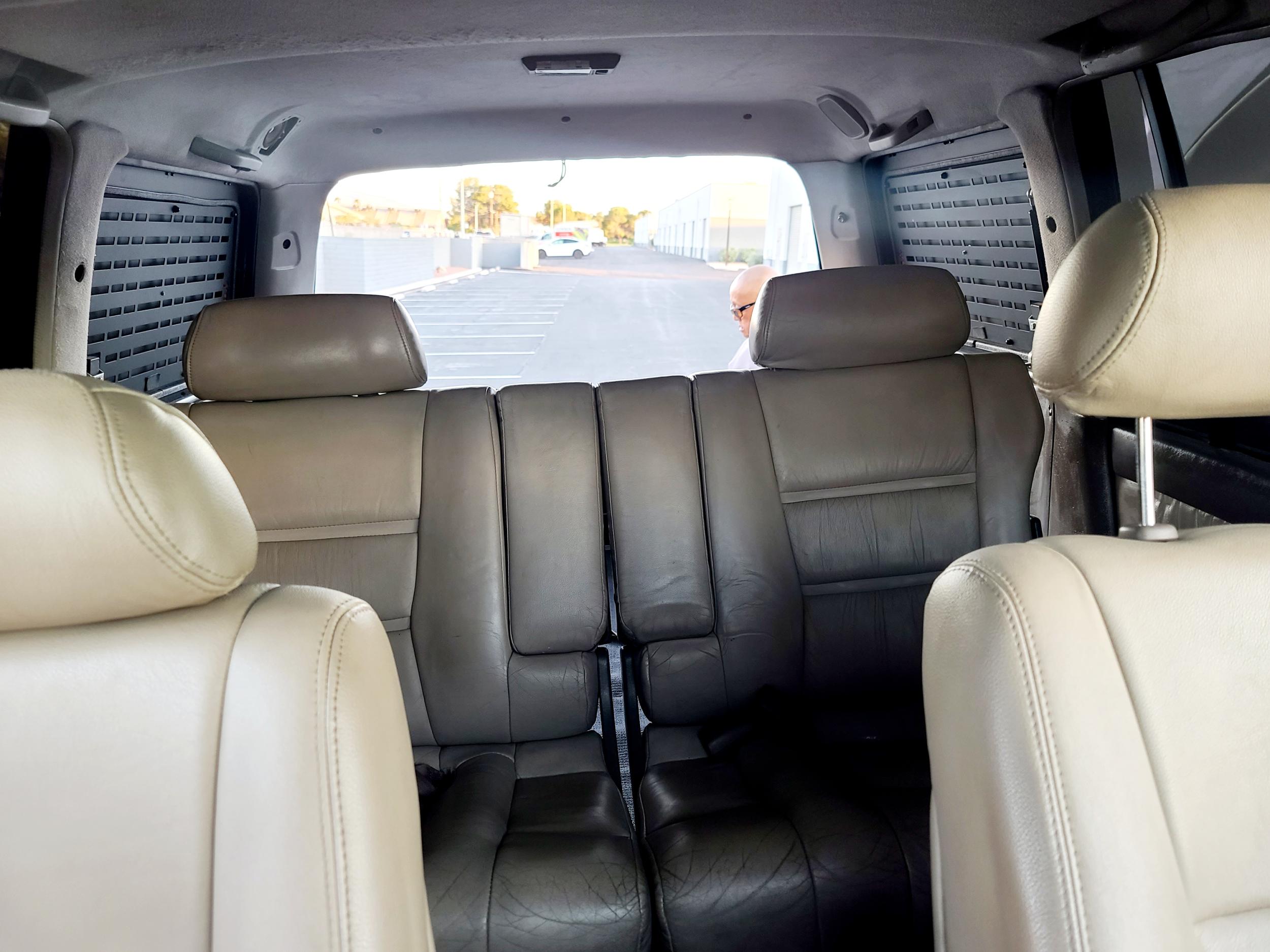

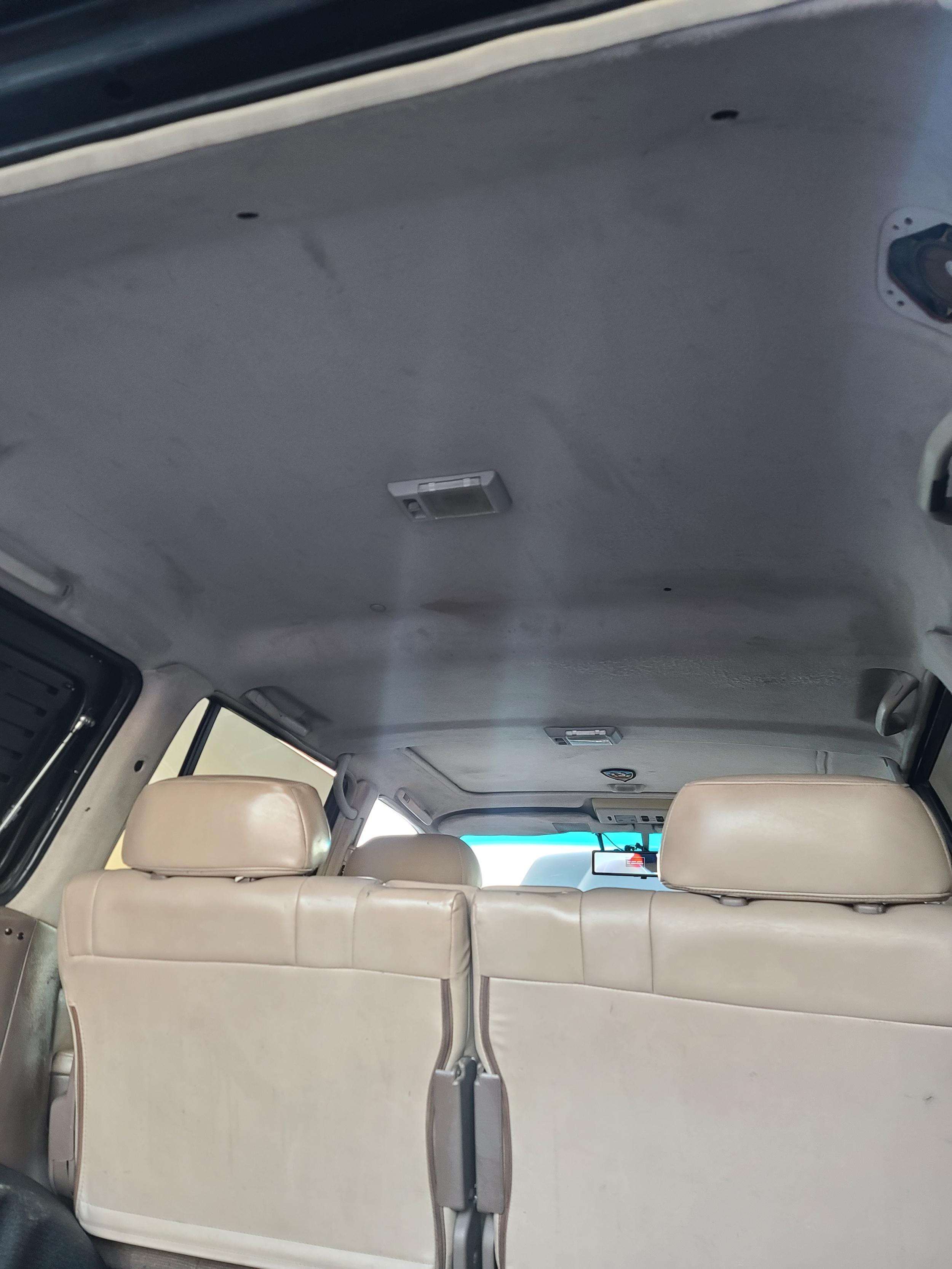

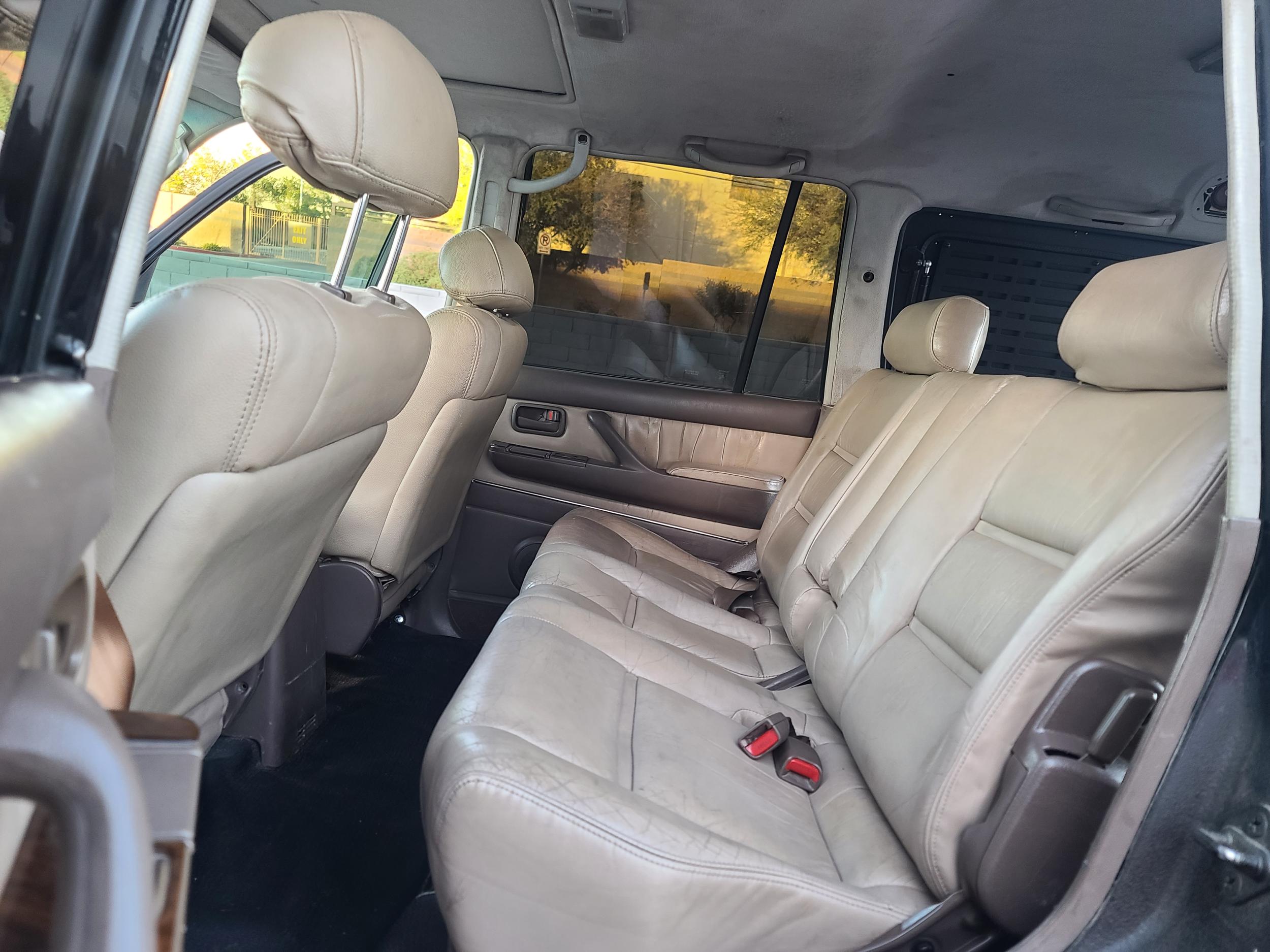

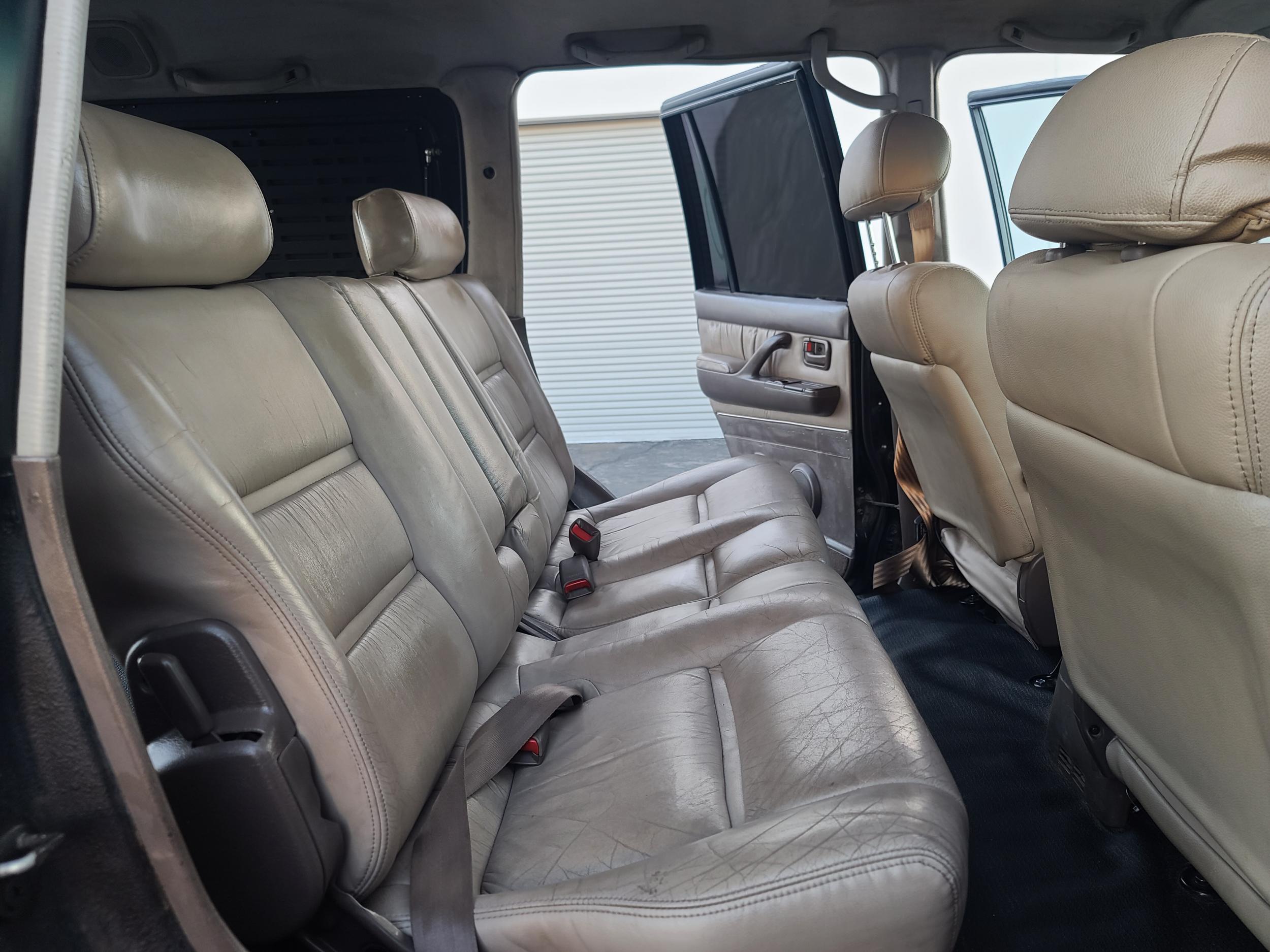

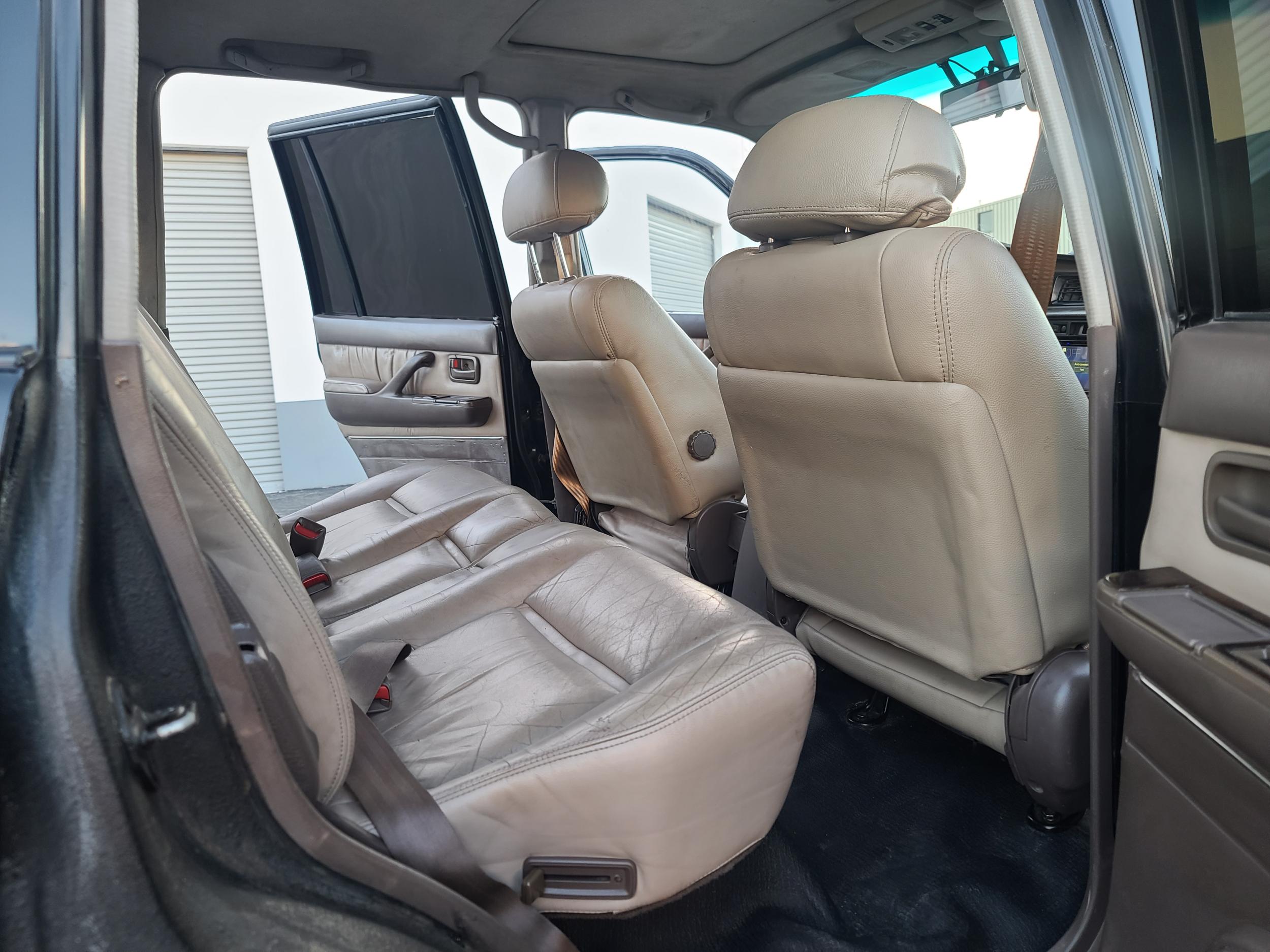

  •  Rear seats retained
  •  Functional exterior lighting
  •  Street-legal configuration
  •  Minimalist interior setup with room for additional overland equipment

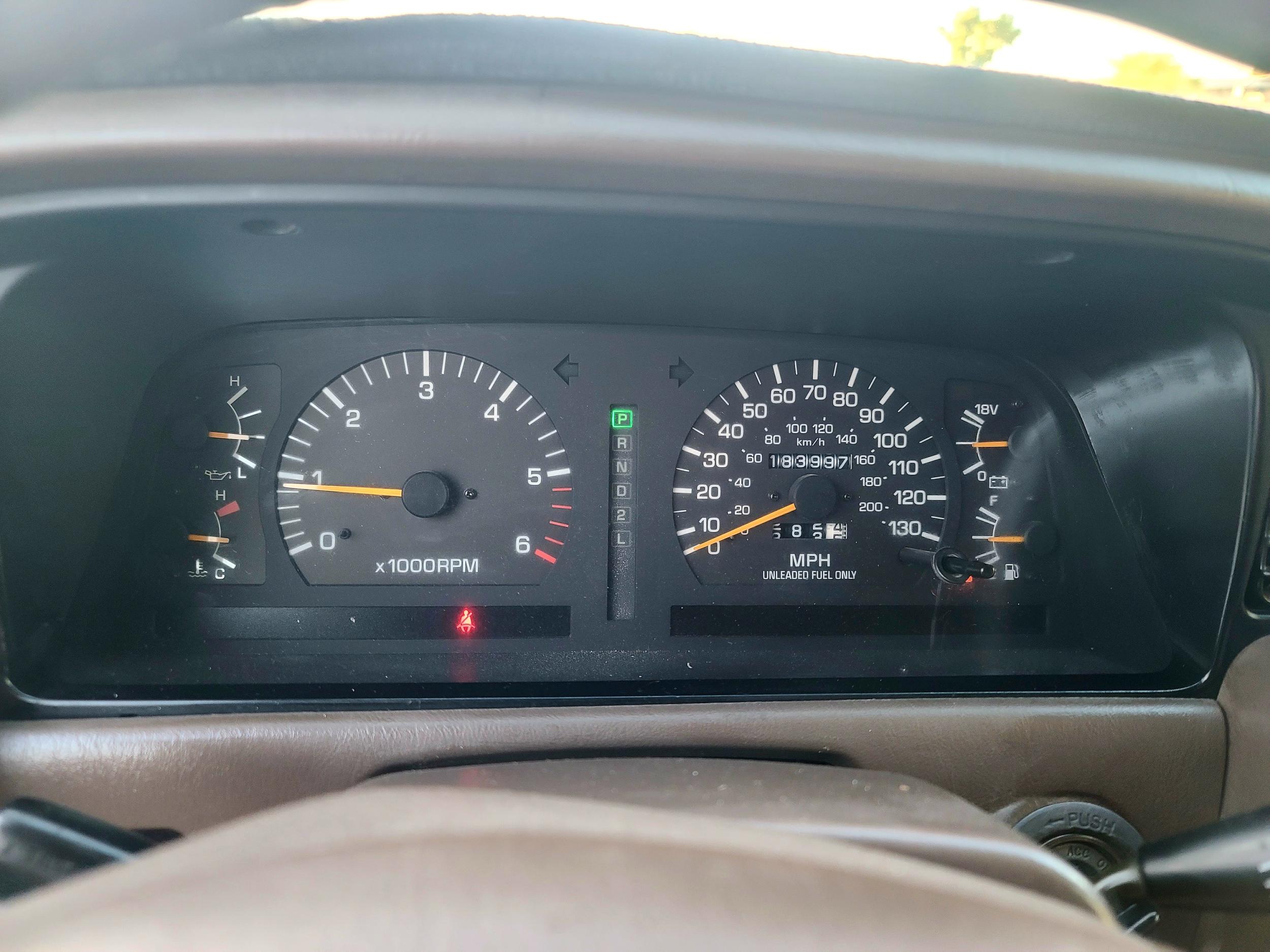

Mileage Note
CARFAX recorded 249,010 miles in July 2020 followed by a 178,783-mile entry later that month, resulting in a potential odometer rollback flag. Mileage should be considered TMU.
